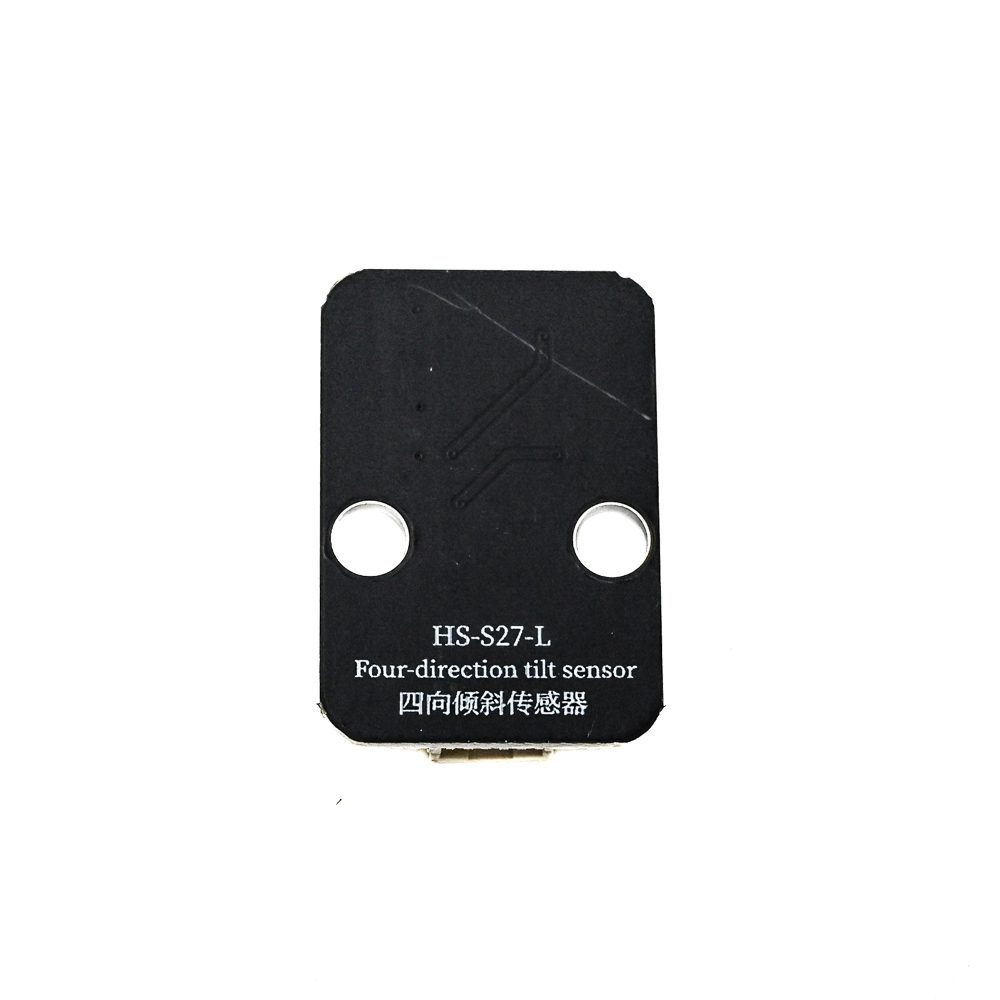

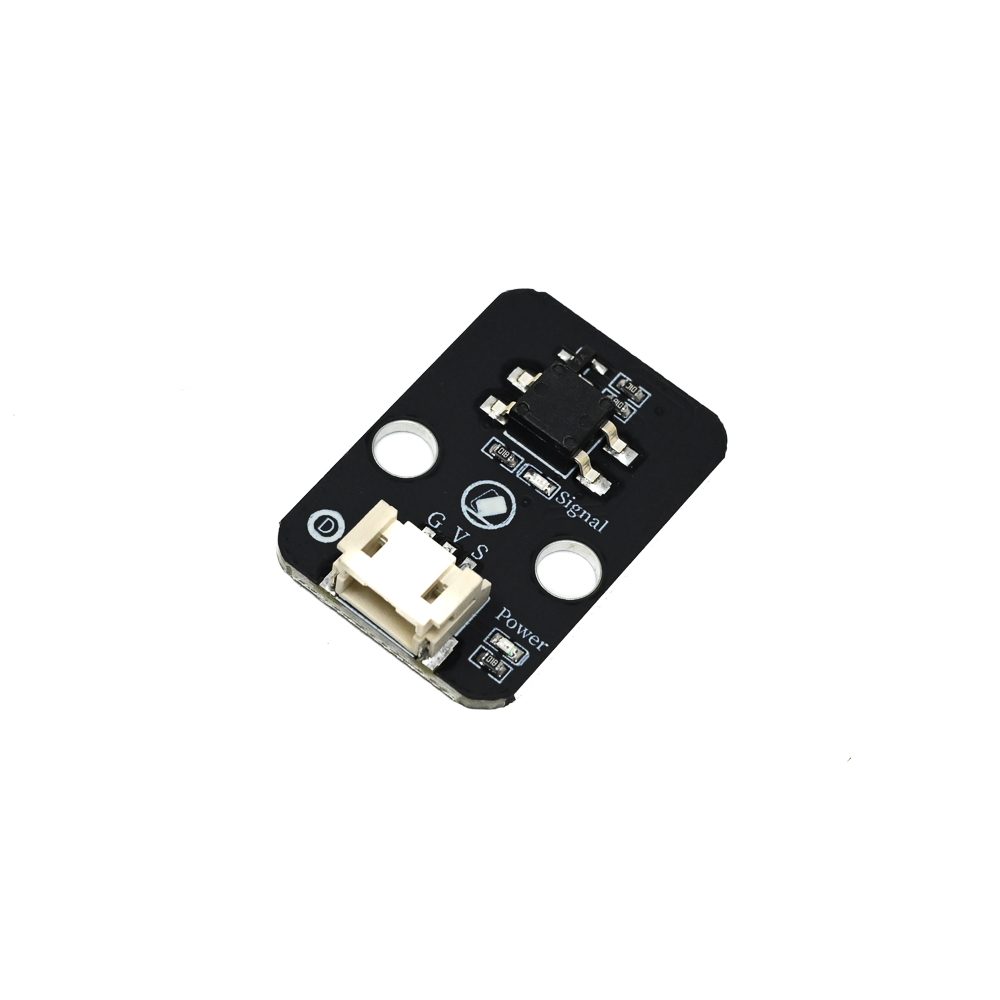

HS-S27-L Four-Way Tilt Sensor Module
The HS-S27-L is a compact four-way tilt sensor module designed for detecting orientation changes in four primary directions. It provides a simple digital interface via a PH2.0 3-pin connector, making it compatible with common 3.3V/5V microcontrollers like Arduino, ESP32, and Raspberry Pi for motion-sensing applications.
Features
- Four-directional tilt detection (Up, Down, Left, Right)
- Wide operating voltage range of 3.3V to 5.5V DC
- Compact module dimensions of 33mm x 23mm
- PH2.0 3-pin terminal for easy plug-and-play connection
- Low power consumption suitable for portable and battery-powered devices
Out of stock
The HS-S27-L tilt sensor operates on a simple mechanical switching principle, where internal conductive elements make contact to close a circuit when the module is tilted beyond a specific threshold in one of its four designated directions. This provides a reliable digital on/off signal corresponding to the detected orientation.
Its compact PCB-based module format integrates the necessary signal conditioning, offering a clean digital output directly compatible with microcontroller GPIO pins. The robust construction ensures stable performance for applications requiring basic tilt or simple gesture detection without the complexity of a full IMU.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.3 × 3.3 cm |
