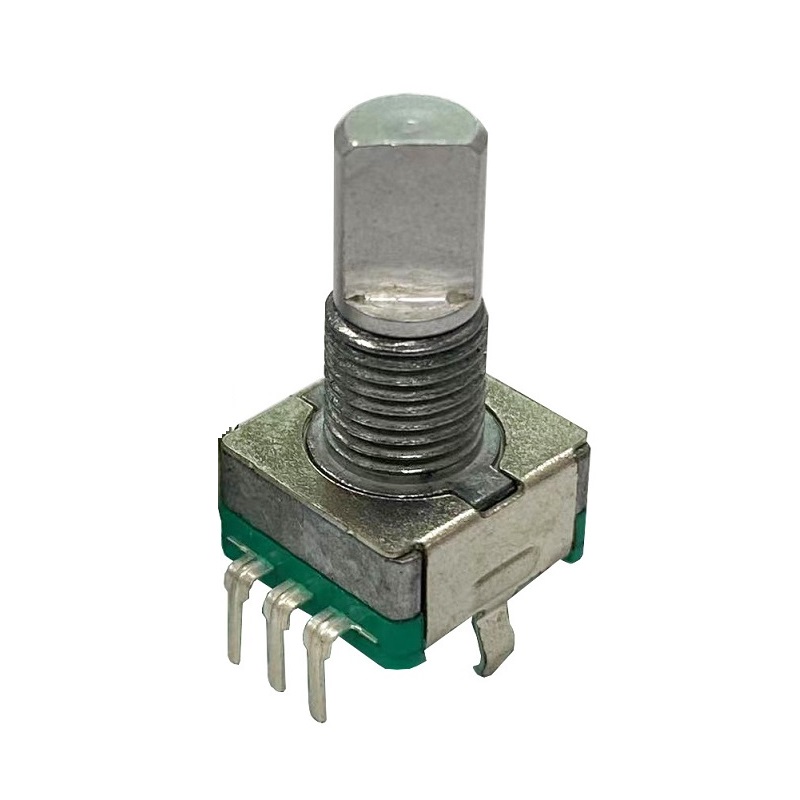

Hongyan Technology EC11H 7CE15P1ZD15F7 Vertical Rotary Encoder with Switch - 5-Pin Plug-in
The Hongyan Technology EC11H 7CE15P1ZD15F7 is a 360-degree rotary encoder with an integrated push-button switch, featuring a vertical 5-pin plug-in design for simplified PCB mounting. It provides precise digital quadrature output for menu navigation and parameter adjustment in audio equipment, industrial control panels, and embedded systems.
Features
- 360-degree rotary encoder with integrated push-button switch for dual-function control.
- Vertical 5-pin plug-in design (hemicycle pin type) for straightforward PCB assembly.
- Robust tinplate housing with dustproof/waterproof protection for reliable operation.
- High electrical and mechanical life rating of 50,000 cycles for long-term durability.
- Wide operating temperature range from -35°C to 85°C for versatile environmental use.
Out of stock
The Hongyan Technology EC11H rotary encoder utilizes a mechanical contact system to generate precise quadrature (A/B) pulse outputs, enabling accurate detection of rotation direction and speed. The integrated momentary push-button switch adds a secondary control function, making it a compact, multi-purpose input device for user interfaces.
Engineered for reliability, the encoder features a tinplate housing offering environmental protection and a brass, silver-plated pin construction for optimal electrical conductivity and corrosion resistance. Its plug-in design streamlines installation, while the specified reversing torque ensures a consistent tactile feel during operation.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.2 × 1.17 cm |
