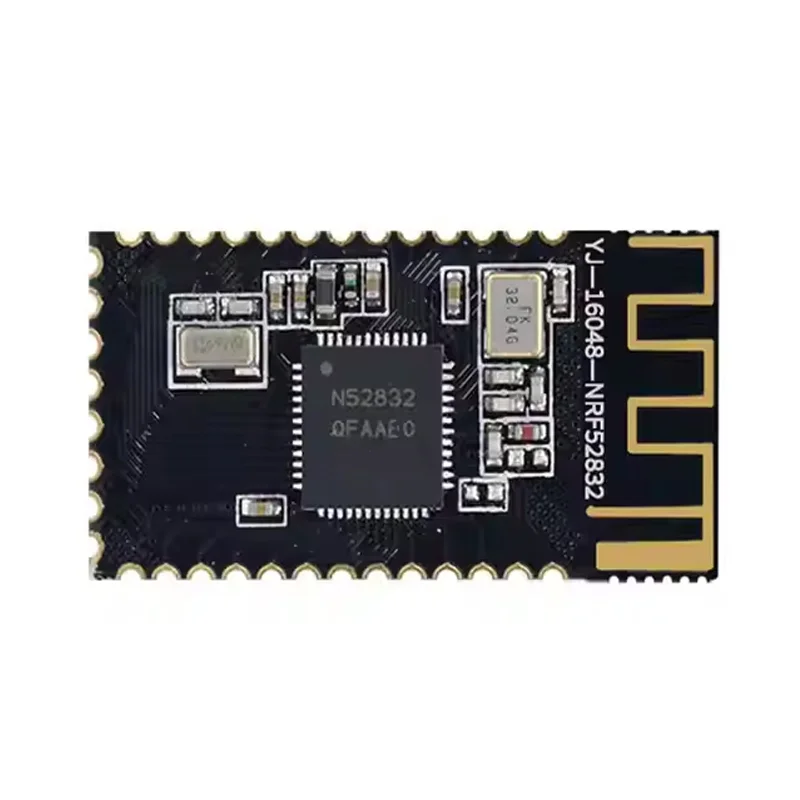

Holyiot 16048 nRF52832 IoT Wireless Transceiver Module
The Holyiot 16048 is an ultra-low-power 2.4GHz wireless transceiver module based on the Nordic Semiconductor nRF52832 SoC, supporting Bluetooth Low Energy, ANT, and proprietary protocols for IoT, wearables, and smart home applications.
Features
- Multi-protocol 2.4GHz transceiver supporting Bluetooth LE, ANT, and proprietary wireless protocols.
- Powered by a 32-bit ARM Cortex-M4F processor with 512kB Flash and 64kB RAM for complex applications.
- Ultra-low power consumption with automated power management for extended battery life.
- Integrated hardware AES encryption, NFC, and PDM interface for secure, feature-rich designs.
- Rich I/O including 3x SPI, 2x I²C, UART, PWM, and RTC for flexible peripheral connectivity.
Out of stock
The Holyiot 16048 module integrates the Nordic Semiconductor nRF52832 System-on-Chip (SoC), providing a complete, certified RF solution for 2.4GHz wireless applications. Its ARM Cortex-M4F core delivers the processing power needed for advanced IoT firmware while maintaining industry-leading low-power performance through dynamic voltage scaling and multiple sleep modes.
The module’s integrated balun simplifies RF layout, and its +4dBm output power combined with -96dBm sensitivity ensures robust wireless links. It is designed for developers requiring a compact, pre-certified radio module for secure, battery-operated devices across consumer, industrial, and medical markets.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 4.5 × 2 cm |
