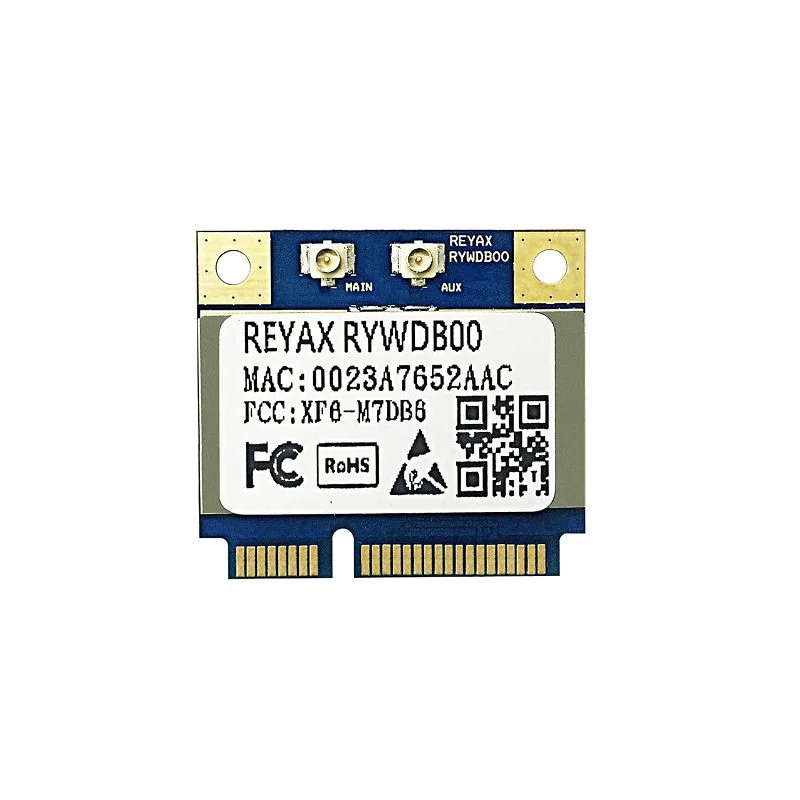

Reyax RYWDB00 Industrial Dual-Band Wi-Fi & Bluetooth 5 Mini PCIe Card

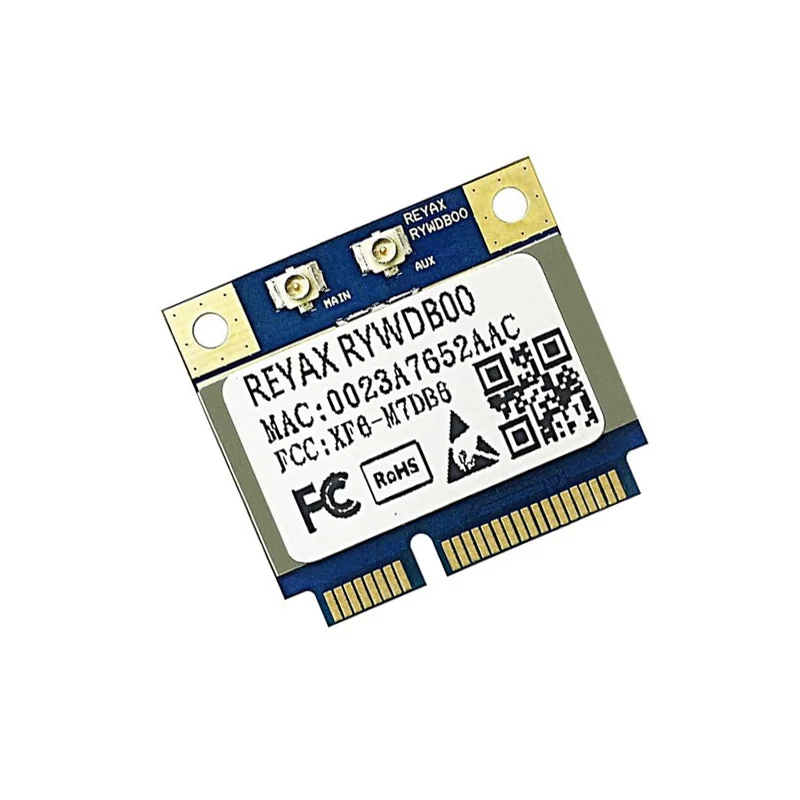

Reyax RYWDB00 Industrial Dual-Band Wi-Fi & Bluetooth 5 Mini PCIe Card - Image 2
SKU: IOWC-0105
📋 GST Invoice Available

Reyax RYWDB00 Industrial Dual-Band Wi-Fi & Bluetooth 5 Mini PCIe Card

₹2,659.00 (Inclusive of all taxes)
Out of Stock

The Reyax RYWDB00 is an industrial-grade Mini PCIe card integrating dual-band 802.11a/b/g/n Wi-Fi and dual-mode Bluetooth 5.0, designed for robust wireless connectivity in harsh environments from -40°C to +85°C via a USB 2.0 HS interface.

Features

  • Industrial-grade dual-band Wi-Fi (2.4GHz & 5GHz) and Bluetooth 5.0 (Classic & LE) on a single Mini PCIe card.
  • High RF output power: +18 dBm (2.4GHz Wi-Fi), +13.5 dBm (5GHz Wi-Fi), and +17 dBm (Bluetooth) for extended range.
  • Wide operating temperature range from -40°C to +85°C, suitable for extreme industrial environments.
  • Supports concurrent Wi-Fi and Bluetooth operation, Wi-Fi AP/Client modes, and Wi-Fi Direct.
  • Integrated enterprise-grade security with WPA2, AES, and RSA encryption for secure data transmission.

Out of stock

Description

The Reyax RYWDB00 is a compact, industrial-grade wireless communication module that combines dual-band IEEE 802.11a/b/g/n Wi-Fi and dual-mode Bluetooth 5.0 on a Mini PCIe form factor. Engineered for reliability in demanding conditions, it operates seamlessly across an extended temperature range from -40°C to +85°C, making it ideal for outdoor, automotive, and industrial IoT applications where environmental resilience is critical.

Its architecture supports high-performance concurrent operation, allowing the module to function as a Wi-Fi access point, client, or in Wi-Fi Direct mode while simultaneously maintaining a Bluetooth connection. This is facilitated through a USB 2.0 High-Speed interface, ensuring easy integration into embedded systems and single-board computers without complex driver development. The module’s robust RF front-end delivers strong signal integrity with optimized transmit power levels for maximum wireless coverage.

Key Features

  • Industrial-grade dual-band 802.11a/b/g/n Wi-Fi supporting 2.4GHz and 5GHz frequency bands.
  • Integrated dual-mode Bluetooth 5.0 supporting both Classic and Low Energy (BLE) protocols.
  • High transmit power: +18 dBm (2.4GHz Wi-Fi), +13.5 dBm (5GHz Wi-Fi), and +17 dBm (Bluetooth).
  • Designed for extreme environments with an operating temperature range of -40°C to +85°C.
  • Supports multiple operational modes: Wi-Fi Access Point, Client, Wi-Fi Direct, and concurrent Wi-Fi/Bluetooth.
  • Robust security suite including WPA2 personal/enterprise, AES, and RSA encryption.
  • Compact Mini PCIe form factor with a USB 2.0 High-Speed host interface for easy system integration.
  • Optimized for low power consumption, suitable for always-on industrial telemetry and control systems.

Applications

  • Industrial automation and control systems (IIoT) requiring reliable wireless backhaul.
  • Embedded computing platforms and single-board computers needing dual wireless connectivity.
  • Outdoor and vehicular telemetry units operating in extreme temperature environments.
  • Digital signage and kiosks with concurrent Wi-Fi for content updates and Bluetooth for peripheral interaction.
  • Secure wireless gateways for industrial sensor networks and machine-to-machine (M2M) communication.

Technical Specifications

Item TypeMini PCIe Card
Model NumberRYWDB00
Wireless ProtocolsIEEE 802.11 a/b/g/n, 802.11j Wi-Fi; Bluetooth 5.0 (Dual-Mode)
Frequency Range2.402–2.480 GHz (Bluetooth), 2.4 GHz & 5 GHz (Wi-Fi)
RF Transmit PowerWi-Fi: +18 dBm (2.4GHz), +13.5 dBm (5GHz); Bluetooth: +17 dBm
Data RateWi-Fi: Up to 50 Mbps; Bluetooth: 125 kbps to 3 Mbps
Supply Voltage3.1V to 3.5V DC
Operating Current450 mA (typical)
Host InterfaceUSB 2.0 High-Speed (HS)
SecurityWPA2, AES, RSA
Operating Temperature-40°C to +85°C
DimensionsApprox. 50 x 30 mm (Mini PCIe standard)

Frequently Asked Questions

What host interface does the Reyax RYWDB00 module use, and how do I connect it to my system?

The module uses a standard Mini PCIe form factor with a USB 2.0 High-Speed (HS) interface for data communication. You connect it by installing the card into a compatible Mini PCIe slot on your host board or adapter. The host system must provide a USB 2.0 controller and the appropriate drivers for the wireless chipset to enable both Wi-Fi and Bluetooth functionality through this single USB connection.

Can this module operate both Wi-Fi and Bluetooth connections simultaneously?

Yes, the Reyax RYWDB00 supports concurrent operation of Wi-Fi and Bluetooth 5.0. This is managed internally by the chipset and firmware, allowing your application to maintain, for example, a Wi-Fi client connection for internet access while simultaneously running a Bluetooth Low Energy (BLE) peripheral scan or maintaining a Bluetooth Classic serial link, all through the shared USB 2.0 interface.

What are the power requirements and typical current consumption for the RYWDB00?

The module requires a supply voltage between 3.1V and 3.5V DC, typically provided through the Mini PCIe slot. Under normal operating conditions with both radios active, it draws a typical current of 450 mA. For power-sensitive applications, you should implement power management at the host level, utilizing the module's supported low-power states when wireless activity is not required.

What software or drivers are needed to use this Mini PCIe card on a Linux-based SBC?

Using the card on a Linux-based Single-Board Computer (SBC) typically requires loading the appropriate kernel modules for the specific wireless chipset inside the RYWDB00. You may need to install proprietary firmware blobs or use mainline kernel drivers. Configuration is done via standard Linux wireless tools (iw, wpa_supplicant for Wi-Fi; bluez for Bluetooth). Check the manufacturer's documentation for the exact chipset model and recommended driver version.

Package Includes

  • 1 x Reyax RYWDB00 Industrial Dual-Band Wi-Fi & Bluetooth 5 Mini PCIe Card

Additional Information

Weight 0.007 kg
Dimensions 5 × 5 × 3 cm

Related Products

Out of Stock

JMO Arduino UNO Q AI Box Case - Aluminium Alloy

2,999.00
Learn More
Out of Stock

MagnTek MT6835 Magnetic Encoder Module PWM/SPI 21BIT Absolute Angle Sensor with Magnet - ABZ/UVW Output

619.00
Learn More
Out of Stock

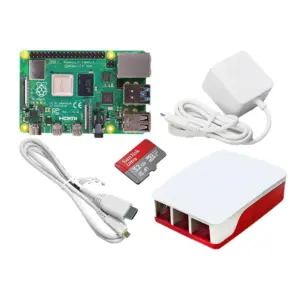

Raspberry Pi 4 Model B 2GB Starter Kit

9,659.00
Learn More
Out of Stock

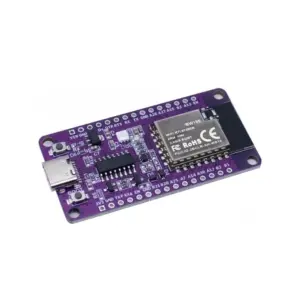

RTL8720DN NICEMCU BW16E Dual-Band WiFi BLE 5.0 Development Board

739.00
Learn More
Out of Stock

DFRobot Gravity Industrial Grade Analog ORP Sensor Meter PRO - 5.08mm Pluggable Connector

14,869.00
Learn More
Out of Stock

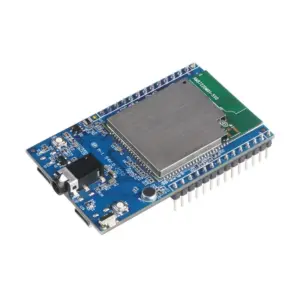

Realtek Ameba RTL8722DM Mini EVB Arduino WiFi Shield

1,994.00
Learn More
Out of Stock

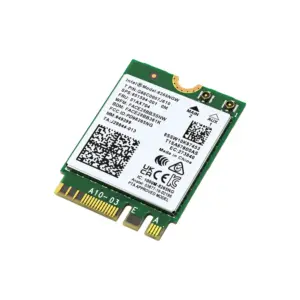

Intel AC8265 M.2 NGFF Wi-Fi 6 & Bluetooth 4.2 NIC for Jetson Nano

1,429.00
Learn More
Out of Stock

Elecrow RP2350 Pico W5 Board

1,109.00
Learn More
Out of Stock

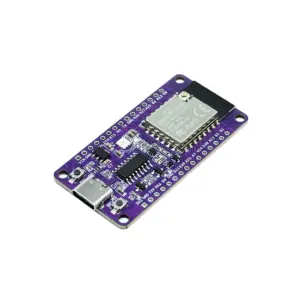

NICEMCU BW16 RTL8720DN WiFi Bluetooth BLE Dev Board w/ IPEX

669.00
Learn More
Out of Stock

Arduino Edge Control AKX00034

23,169.00
Learn More
Out of Stock

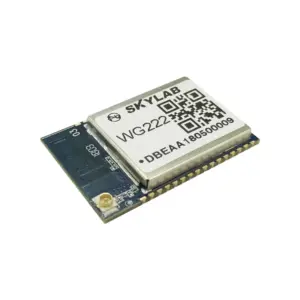

Skylab WG222 Dual-band Serial Port Wi-Fi Bluetooth Combo Module

1,979.00
Learn More
Out of Stock

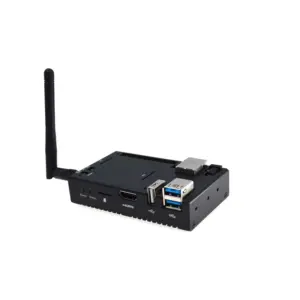

EDATEC ED-CM4NANO10-0108-C CM4 Baseboard w/ Antenna & Case
