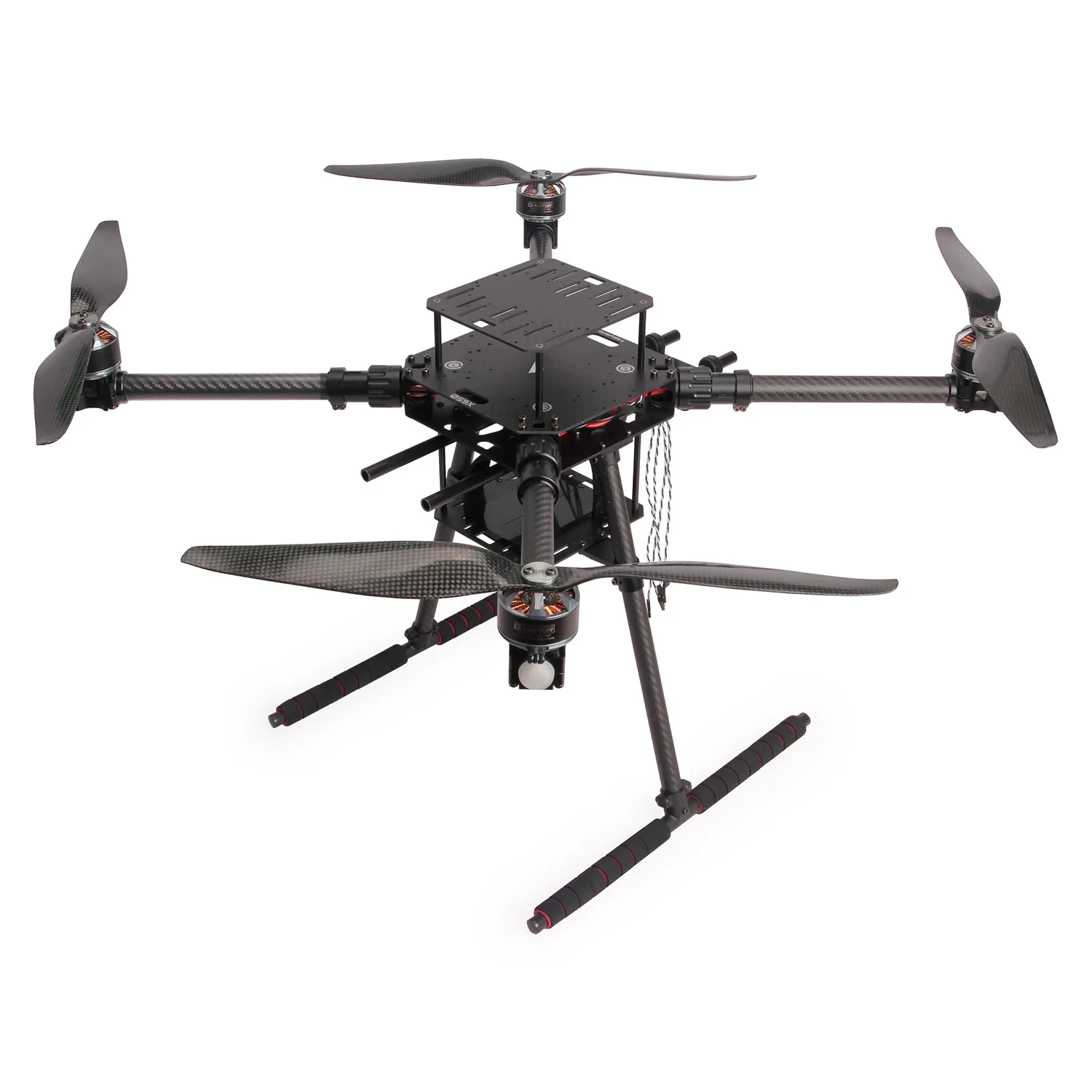

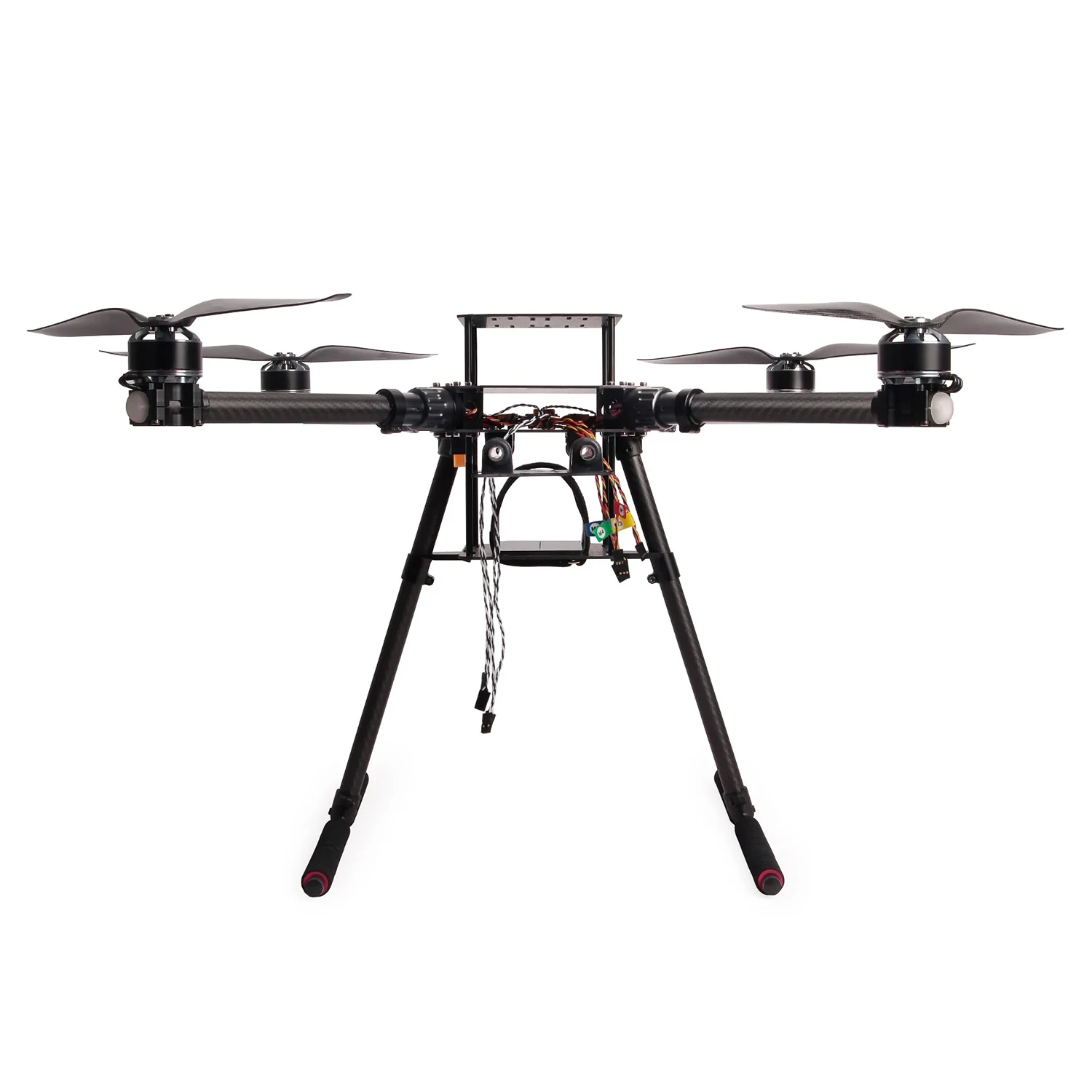

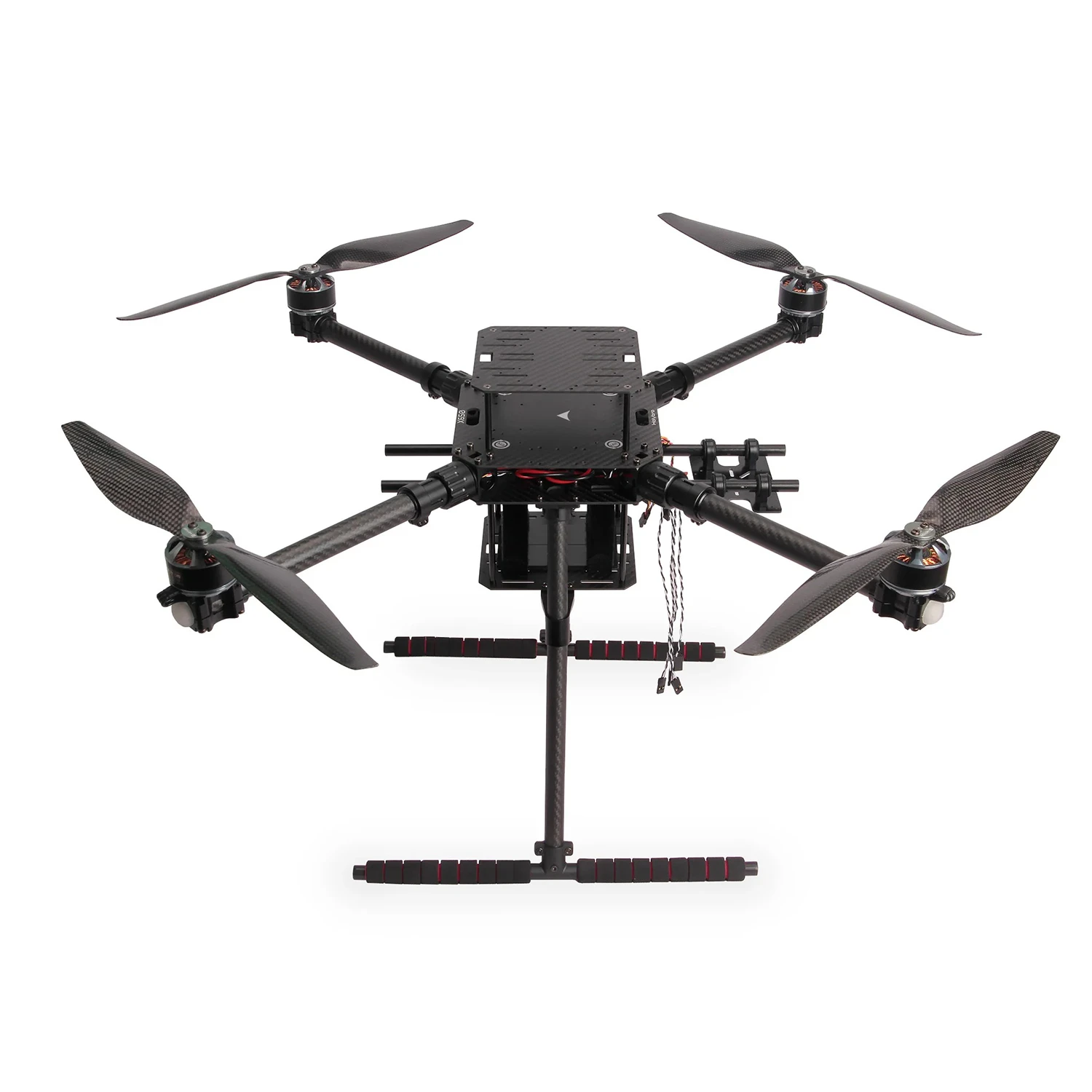

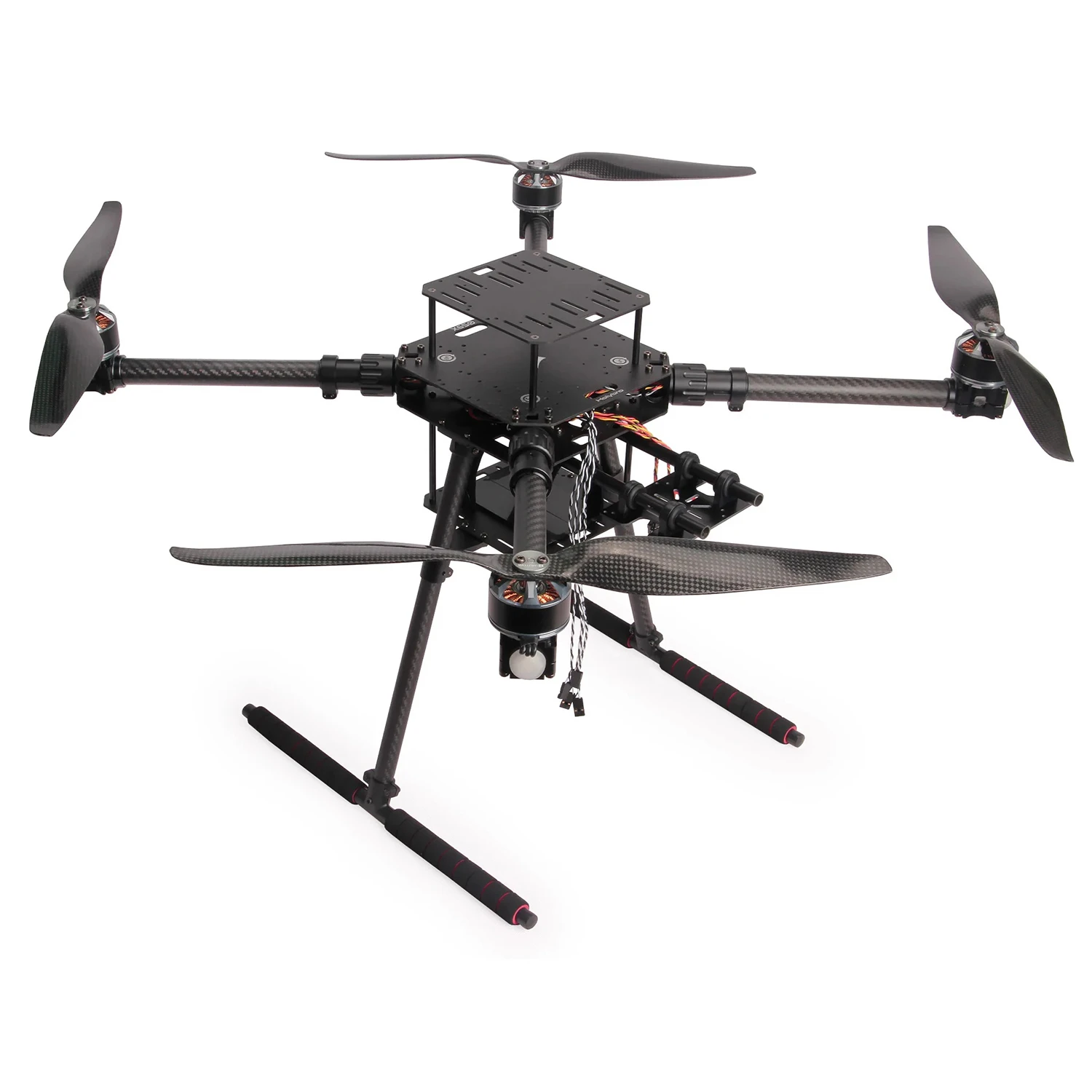

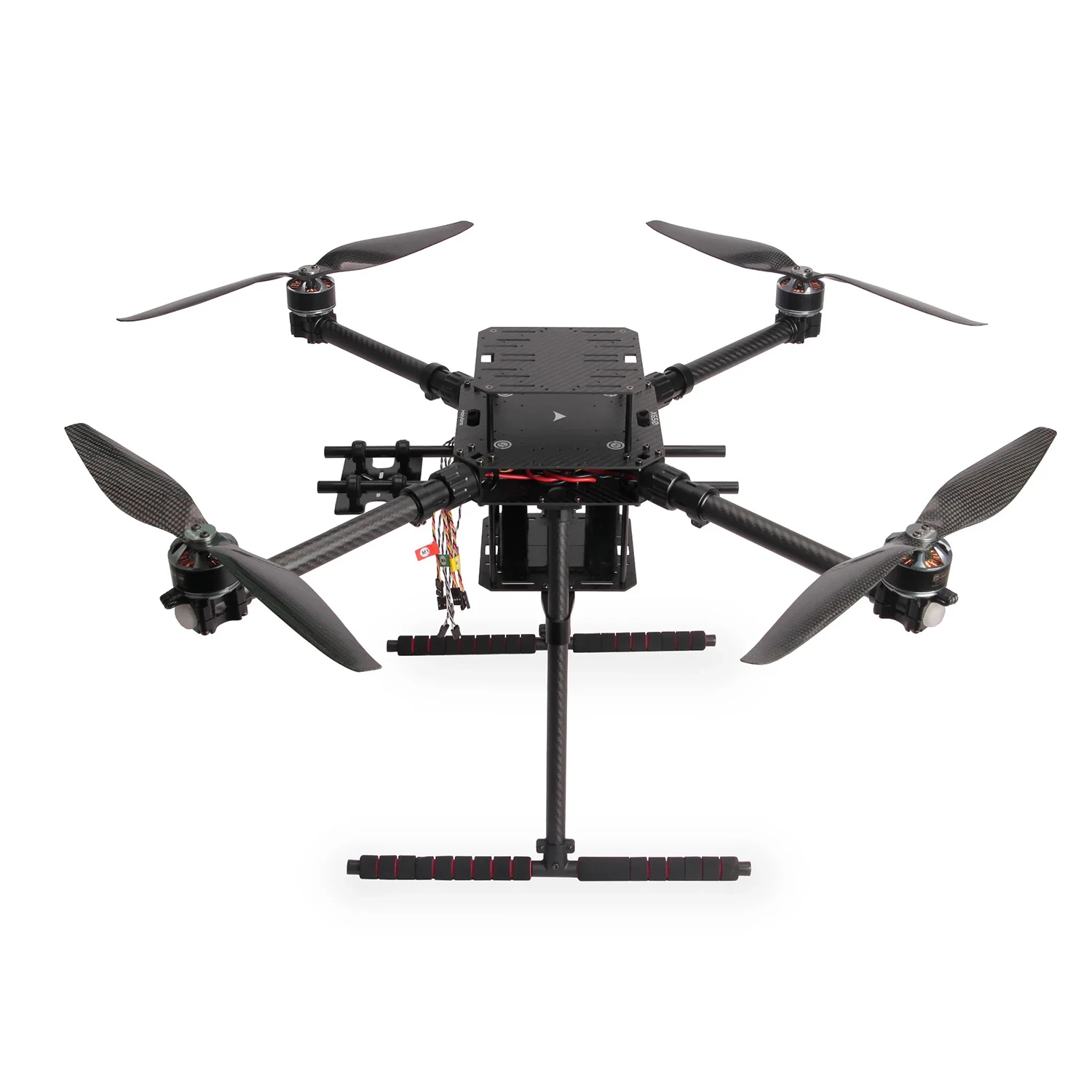

Holybro X650 ARF 650mm Quadcopter Drone Kit
Holybro X650 ARF 650mm Quadcopter Drone Kit - Image 2
Holybro X650 ARF 650mm Quadcopter Drone Kit - Image 3
Holybro X650 ARF 650mm Quadcopter Drone Kit - Image 4
Holybro X650 ARF 650mm Quadcopter Drone Kit - Image 5
Holybro X650 ARF 650mm Quadcopter Drone Kit - Image 6
SKU: DRFC-1108
📋 GST Invoice Available

Holybro X650 ARF 650mm Quadcopter Drone Kit

₹103,609.00 (Inclusive of all taxes)
Out of Stock

The Holybro X650 ARF Kit is a high-performance 650mm quadcopter frame with pre-installed T-Motor MN4014 KV330 motors and Tekko32 F4 45A ESCs, designed for professional mapping, inspection, and autonomous robotics. Featuring a lightweight carbon fiber construction and foldable aluminum arms, this kit offers rapid deployment and structural rigidity for heavy-lift applications.

Features

  • 650mm wheelbase carbon fiber quadcopter frame with foldable aluminum arms.
  • Pre-installed T-Motor MN4014 KV330 motors and Tekko32 F4 45A ESCs.
  • Integrated PDB with XT60/XT30 connectors for solder-free assembly.
  • Supports Pixhawk FCs, Jetson Nano, Raspberry Pi, and Intel Intel RealSense cameras.
  • Maximum takeoff weight of 6300g with a 4.3kg payload capacity.

Out of stock

Description

The X650 V2 ARF Kit from Holybro offers a high-performance quadcopter platform for professionals requiring a reliable and expandable drone system. With its 650mm wheelbase, lightweight full carbon fiber construction, and convenient foldable aluminum arms, it strikes an optimal balance between portability and structural integrity for demanding aerial operations.

This Almost Ready-to-Fly kit comes with pre-installed propulsion components, significantly reducing assembly time by eliminating complex wiring and soldering. It features an integrated power distribution board with XT60 and XT30 connections for ESCs and various peripherals. Dedicated mounting points are thoughtfully included to simplify the integration of advanced flight controllers like Pixhawk, GPS modules, companion computers, and AI-enabled cameras.

Capable of supporting up to a 4.3kg payload (without battery) and achieving approximately 30 minutes of hover time with a recommended 6S 10000mAh battery, the X650 V2 is an ideal solution for critical applications such as high-precision mapping, agricultural monitoring, comprehensive industrial inspections, advanced research, and sophisticated autonomous robotics. Its versatile platform seamlessly integrates with popular hardware including Pixhawk 6C/6X, Jetson Nano, Raspberry Pi 4, and Intel Intel RealSense depth cameras, making it a robust foundation for next-generation autonomous UAV development and complex industrial drone projects.

Key Features

  • Full carbon fiber frame ensures high strength and lightweight performance.
  • Foldable aluminum arm connectors enable easy transport and compact storage.
  • Pre-installed T-Motor motors, Tekko32 ESCs, NeoPixel LEDs, and integrated PDB for rapid, solder-free assembly.
  • Plug-and-play XT30 power connections eliminate the need for complex soldering.
  • Broad compatibility with Pixhawk flight controllers, Jetson Nano, Raspberry Pi, and Intel Intel RealSense cameras.
  • Generous payload capacity makes it suitable for mapping, AI development, industrial inspection, and research.

Applications

  • High-precision aerial mapping and surveying.
  • Industrial inspection and infrastructure monitoring.
  • Agricultural monitoring and crop analysis.
  • Advanced autonomous robotics and research platforms.
  • Heavy-lift payload delivery for specialized operations.

Technical Specifications

Product TypeAlmost Ready-to-Fly (ARF) Drone Kit
Drone ConfigurationQuadcopter
ModelX650 V2
Wheelbase650mm
Frame MaterialFull Carbon Fiber
Top Plate Size160 × 160 × 2mm
Upper Plate Size120 × 128mm Carbon Fiber
Arm Material20mm Carbon Fiber Tube
Arm ConnectorFoldable Aluminum
Landing GearCarbon Fiber Tube Landing Gear (16mm & 10mm Tubes)
Rail Mount SystemDual 10mm × 320mm Rail
Motors4 × T-Motor MN4014 KV330 Brushless Motor
Motor Mount Pattern16–25mm
ESCs4 × Tekko32 F4 45A ESC
Propellers4 × Gemfan 1555 Carbon Fiber Propeller
LEDs4 × WS2812 NeoPixel LED
Power DistributionIntegrated PDB (XT60 battery, XT30 ESC/peripherals)
Battery ConnectorXT60
ESC ConnectorXT30
Flight TimeUp to 30 Minutes (Hover with 6S 10000mAh Battery)
Kit Weight2000g (Without Battery)
Maximum Payload4.3kg (Without Battery)
Payload (with 5200mAh Battery)3.5kg
Payload (with 10000mAh Battery)3.1kg
Maximum Takeoff Weight6300g
Recommended Battery6S 5000–12000mAh LiPo Battery
Flight Controller CompatibilityPixhawk 6C, Pixhawk 6X, Pixhawk 6X w/ Jetson Baseboard
Companion Computer CompatibilityRaspberry Pi 4, Jetson Nano
Camera CompatibilityIntel Intel RealSense Depth Camera
GPS MountYes
Assembly TypeAlmost Ready-to-Fly (ARF)

Frequently Asked Questions

What flight controllers are compatible with the Holybro X650 V2 ARF Kit?

The X650 V2 ARF Kit is designed for seamless integration with Holybro Pixhawk flight controllers, including the Pixhawk 6C, Pixhawk 6X, and Pixhawk 6X with Jetson Baseboard. It provides dedicated mounting points and power distribution, simplifying the setup for advanced autonomous operations. This flexibility allows users to leverage powerful autopilot systems.

What type of motors and ESCs are pre-installed in the X650 V2 ARF Kit?

The kit comes pre-equipped with four high-quality T-Motor MN4014 KV330 brushless motors, renowned for their efficiency and reliability in heavy-lift applications. Paired with these are four Tekko32 F4 45A ESCs, offering precise motor control and robust performance, ensuring a dependable propulsion system straight out of the box.

What is the maximum payload and flight time expected from the Holybro X650 V2?

The X650 V2 ARF Kit can handle a maximum payload of 4.3kg without the battery. When using a recommended 6S 10000mAh LiPo battery, it can achieve approximately 30 minutes of hover time, with a payload capacity of around 3.1kg. This makes it suitable for extended industrial missions.

How does the X650 V2 ARF Kit facilitate quick assembly and integration?

The X650 V2 ARF Kit features pre-installed motors, ESCs, LEDs, and an integrated Power Distribution Board (PDB). It utilizes XT30 plug-and-play connectors for the ESCs and an XT60 for the battery, eliminating the need for complex soldering. This design significantly reduces assembly time, allowing for faster deployment and system configuration.

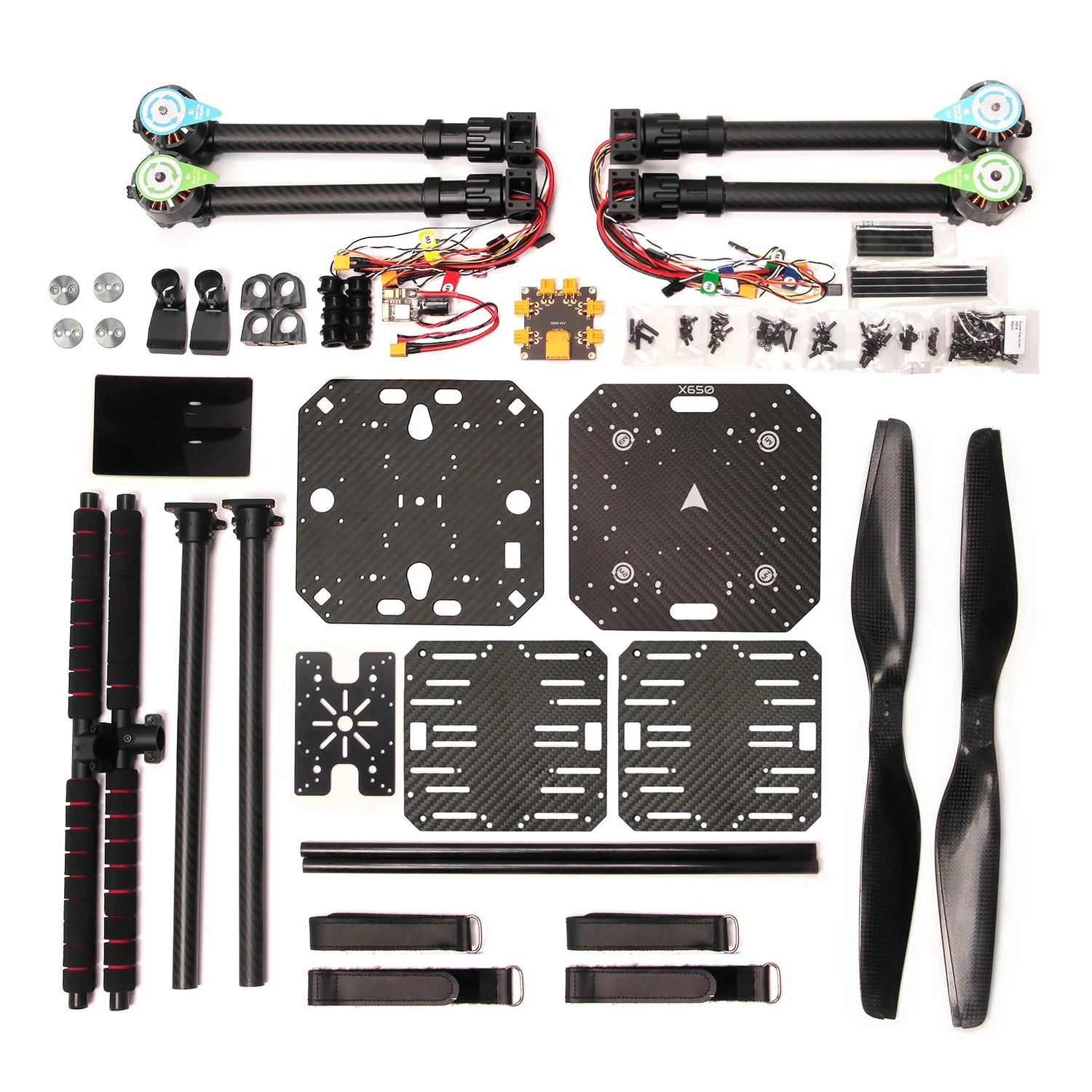

Package Includes

  • 1 x Holybro X650 ARF Kit (Pre-assembled frame with motors, ESCs, LEDs, PDB)
  • 4 x Gemfan 1555 Carbon Fiber Propellers
  • Integrated Power Distribution Board (with XT60 for battery, XT30 for ESCs/peripherals)

Additional Information

Dimensions 40 × 30 × 11 cm
