Holybro S500 V2 2216-920KV CW Motor

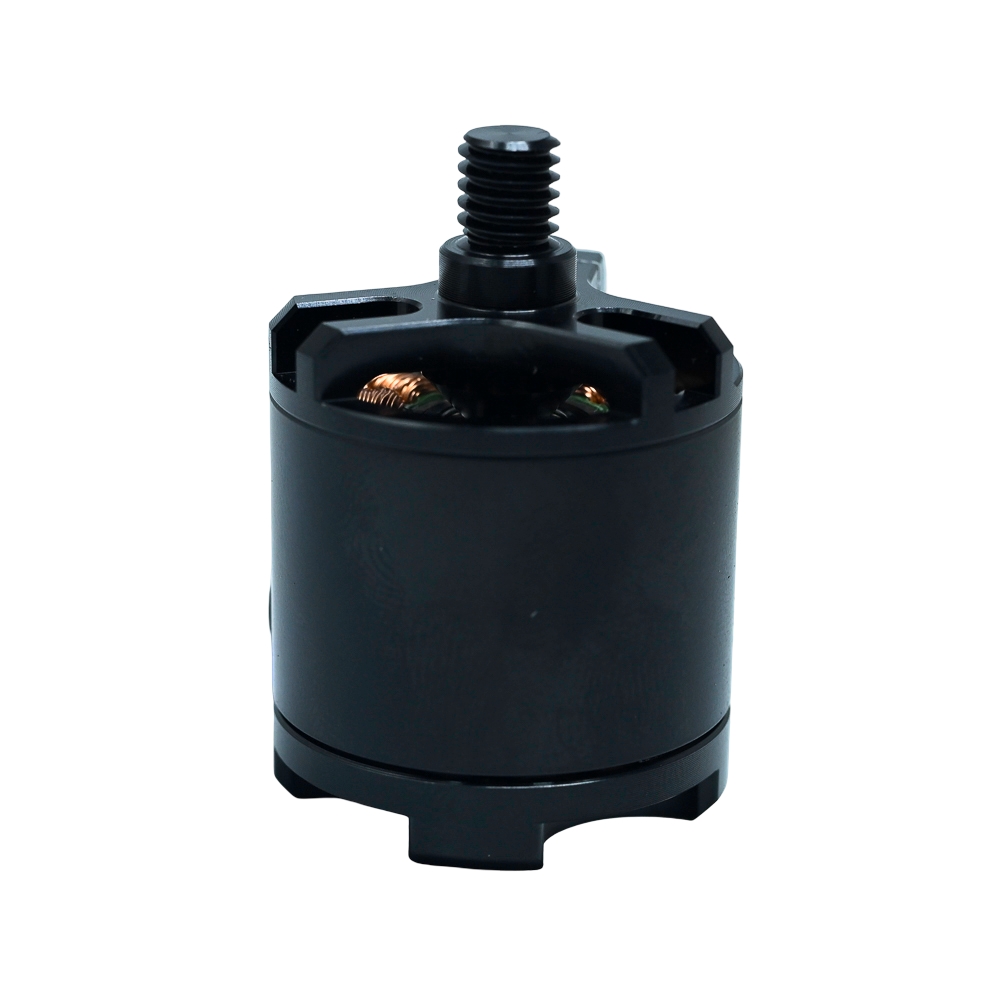

The Holybro S500 V2 2216-920KV CW motor is a high-efficiency brushless motor engineered for long-range and endurance multirotor platforms, compatible with 3-4S LiPo batteries and designed to drive 10-inch propellers for stable, extended flight.
Features
- 2216 stator size (22x16mm) with 920KV rating for efficient 3-4S operation.
- Precision-balanced rotor and stator for smooth, low-vibration performance.
- Standard M3 mounting pattern (16x19mm) for easy integration into common frames.
- Optimized winding and 28mm diameter housing for improved thermal efficiency.

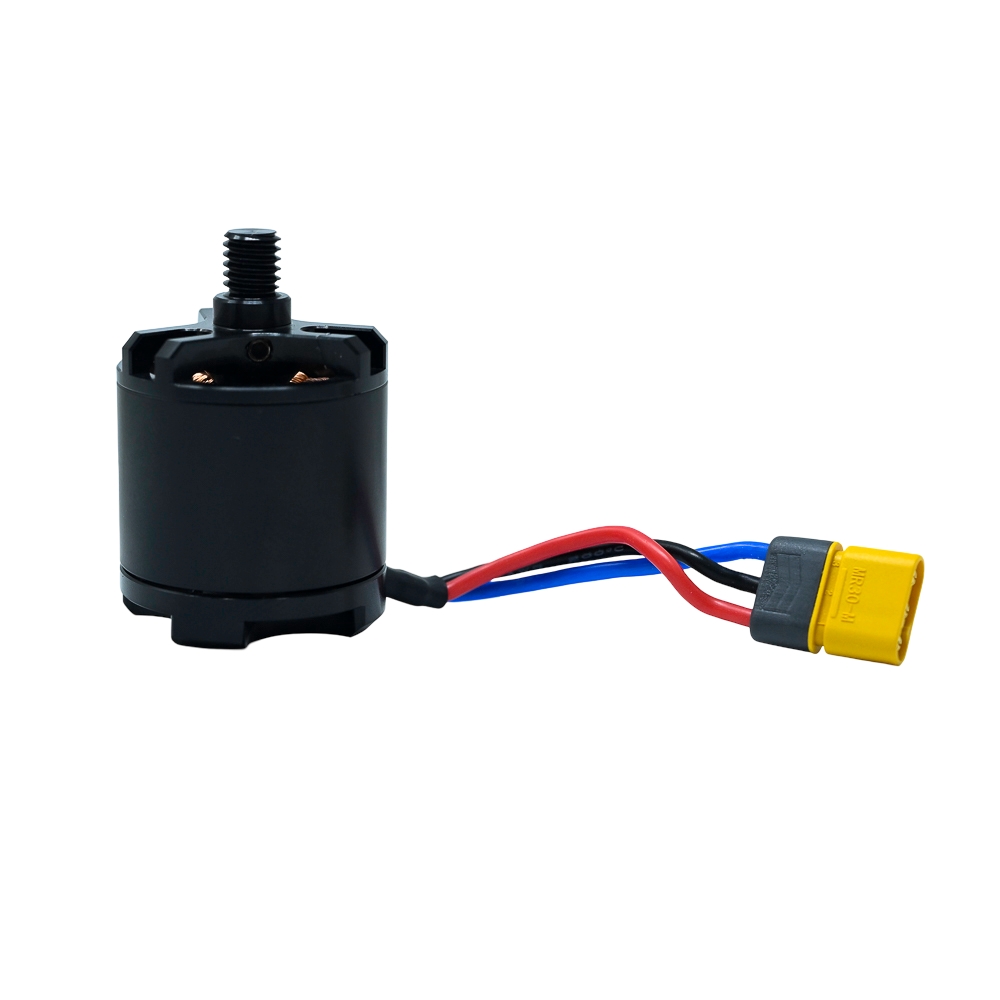

- 60mm wire length provides flexible installation options for various builds.
Out of stock
The Holybro S500 V2 2216-920KV motor is engineered for pilots seeking reliable propulsion for medium-sized multirotor drones. Its 2216 stator dimensions (22mm diameter, 16mm height) paired with a 920KV winding are optimized for 3-4S LiPo power systems, delivering a balance of torque and RPM suitable for driving 10-inch propellers efficiently. This combination is ideal for applications prioritizing flight time and stable cruise performance over raw peak thrust.
Constructed with a durable 28mm outer bell and precision-machined components, the motor is designed for smooth operation with minimal cogging and vibration. The robust build ensures consistent performance and longevity, even under continuous load during extended flight sessions. The included 60mm motor leads allow for clean wiring integration into a wide range of frame layouts and power distribution setups.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
