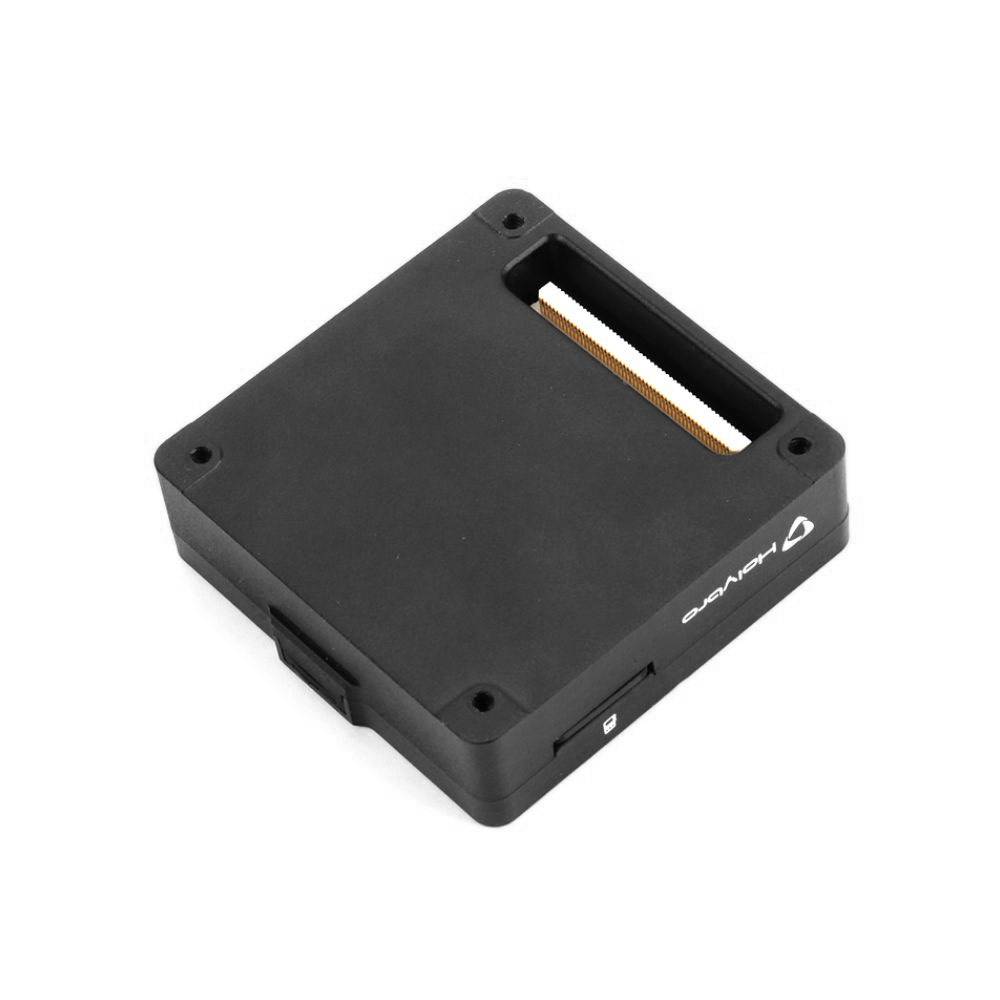

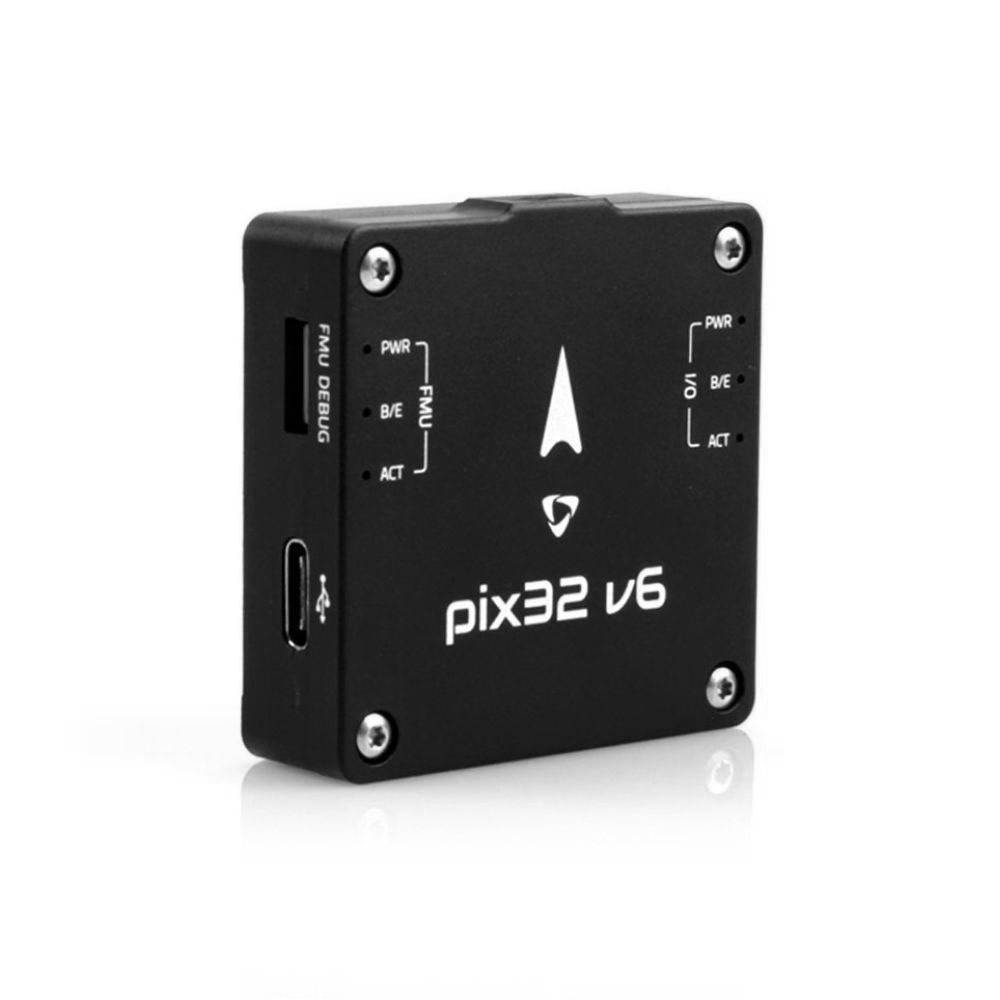

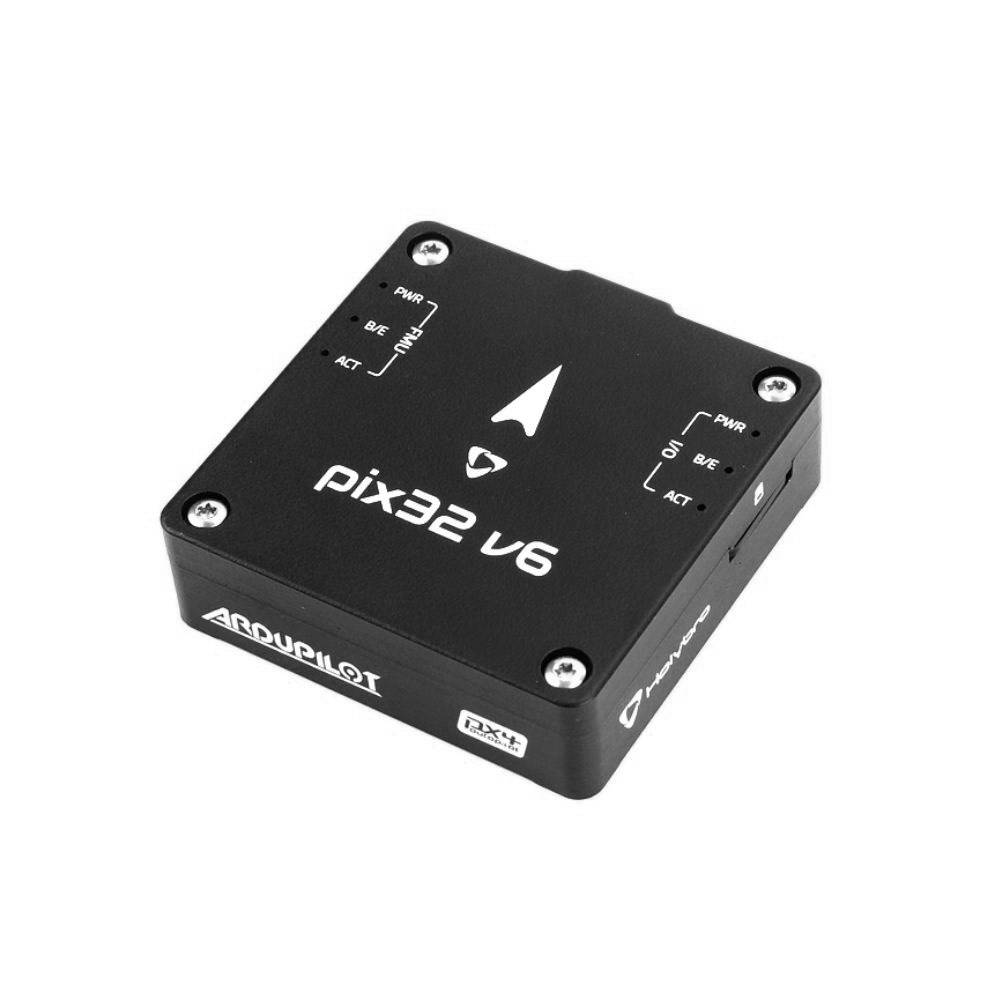

Holybro Pix32 V6 FC Module Only
The Holybro Pix32 V6 FC Module is a high-performance, modular flight controller core featuring an STM32H743 processor, dual IMU redundancy with temperature control, and an integrated vibration isolation system, designed for integration with custom carrier boards in advanced UAV platforms.
Features
- High-performance STM32H743 processor with Arm Cortex-M7 core running at 480 MHz, 2MB flash, and 1MB RAM.
- Dual-redundant, temperature-controlled IMUs (BMI055) with an integrated vibration isolation system for precise sensor readings.
- Modular 100-pin connector design for flexible integration with custom carrier boards and power distribution systems.
- Wide input voltage support: 6V logic power, 4.75-5.25V USB, and servo rail handling up to 36V.
- Features Bosch BMI055 accelerometer/gyro, IST8310 magnetometer, and MS5611 barometer for comprehensive flight sensing.
Out of stock
The Holybro Pix32 V6 represents a significant evolution in modular flight control, separating the core Flight Controller (FC) module from the carrier board. This architecture is built around the powerful STM32H743 microcontroller, providing substantial computational headroom for complex autopilot algorithms and models required in professional UAV applications. The design prioritizes sensor integrity through a dedicated vibration damping system and active thermal management of its inertial measurement units.
Engineered for customization, the module connects via a robust 100-pin interface, allowing developers and integrators to design bespoke baseboards that match specific vehicle form factors, pinout requirements, and power distribution needs precisely. This eliminates unnecessary connectors and bulk, optimizing the system for weight-sensitive or space-constrained builds while maintaining full compatibility with the Pixhawk ecosystem and ArduPilot firmware.
Additional Information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 16 × 9 × 5 cm |
