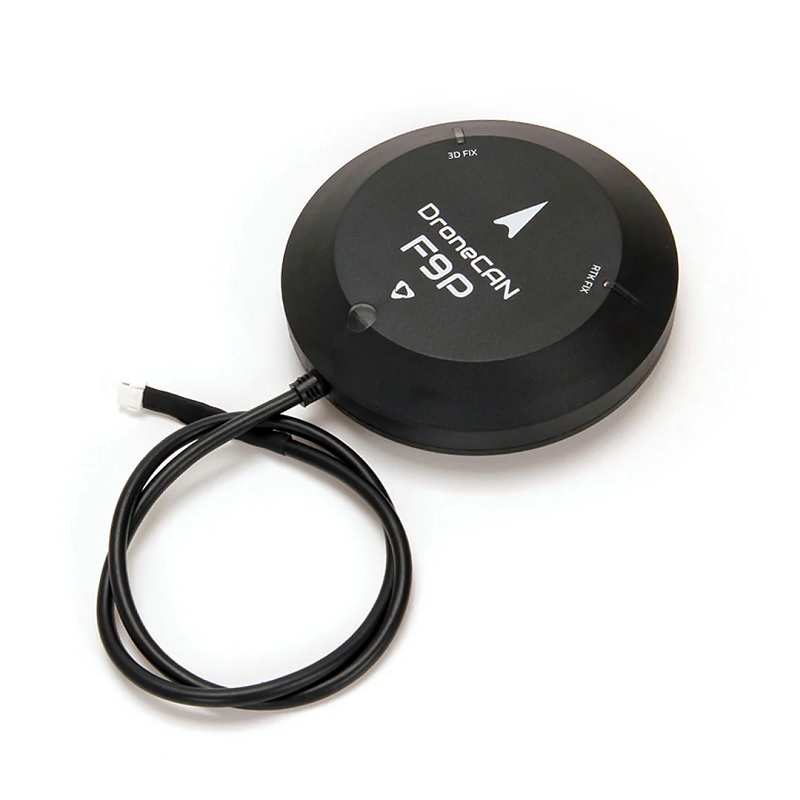

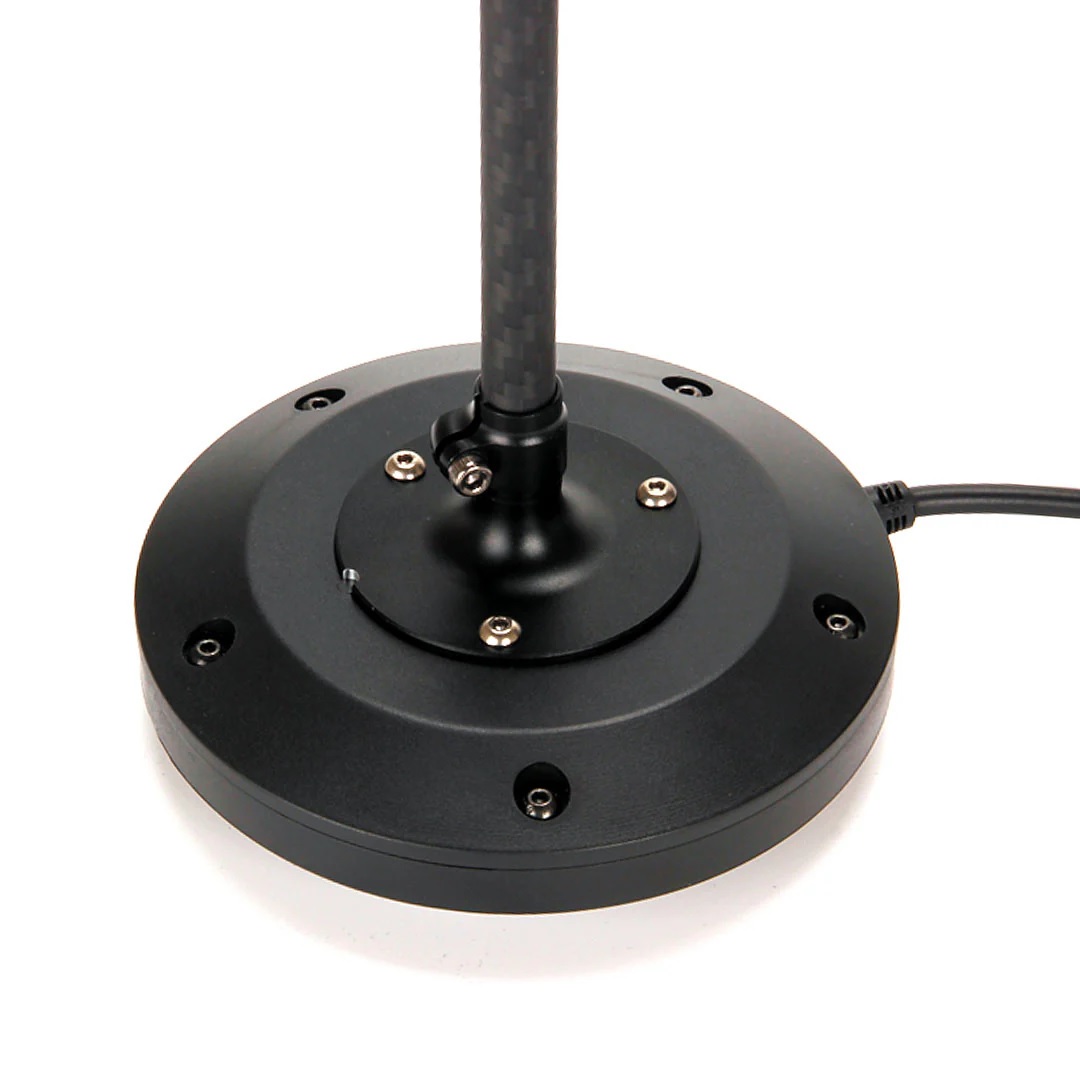

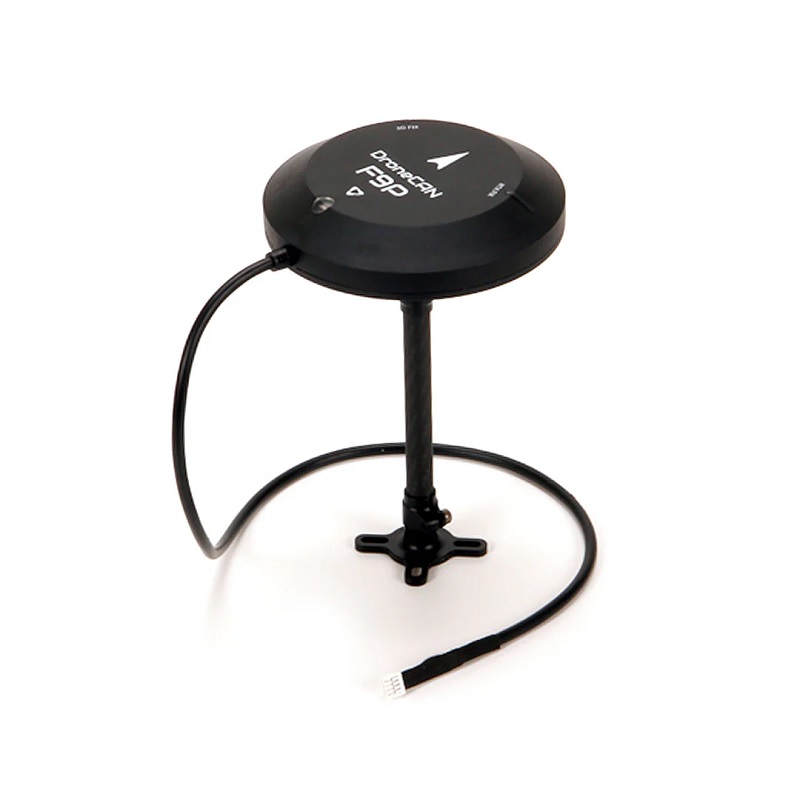

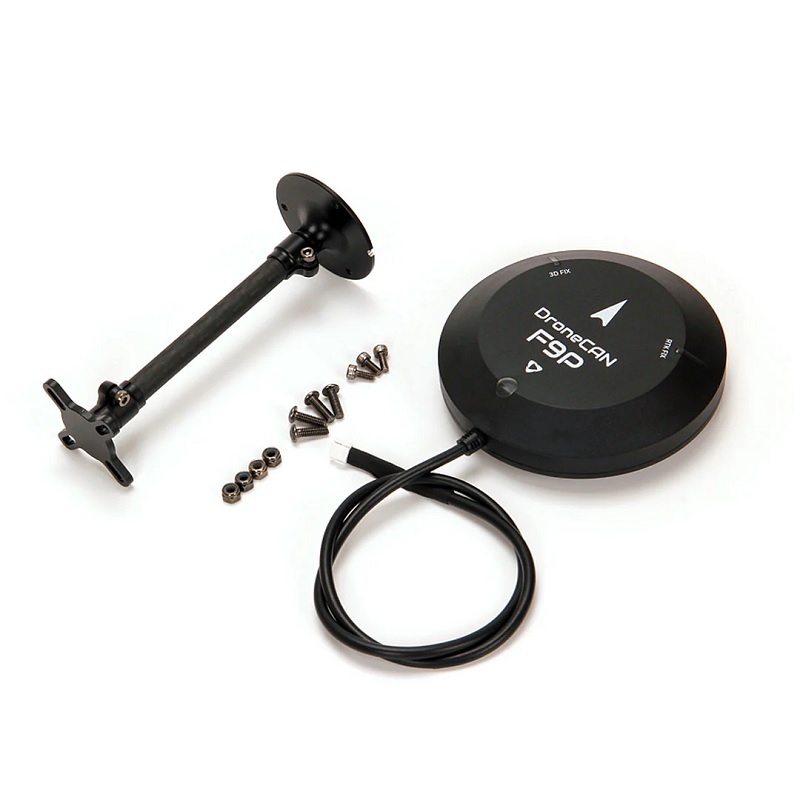

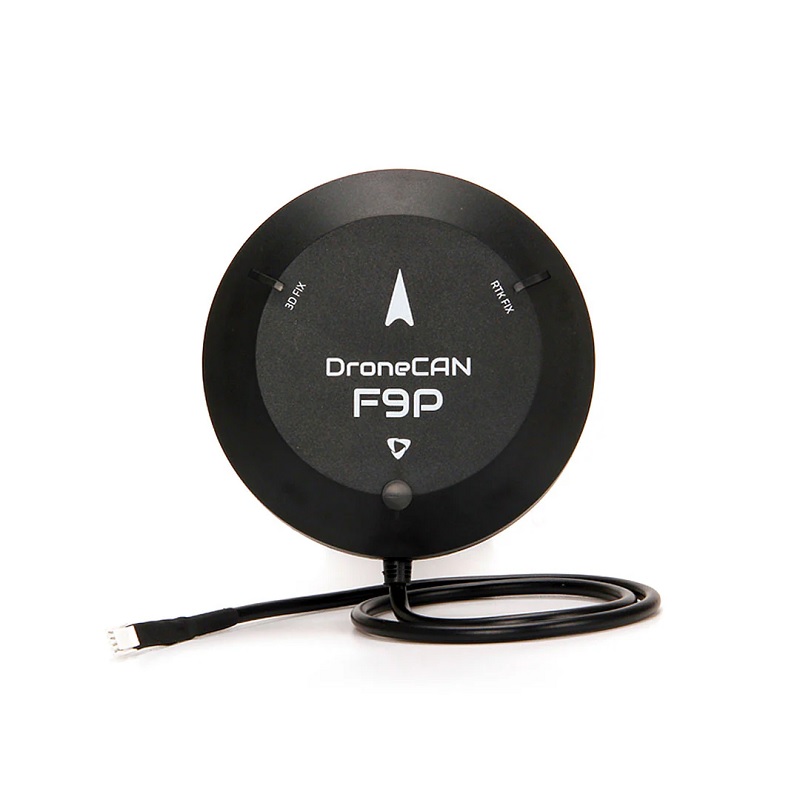

Holybro DroneCAN H-RTK F9P Rover GPS 42cm
The Holybro DroneCAN H-RTK F9P Rover is a high-precision GNSS positioning system utilizing the robust DroneCAN protocol. It offers multi-band RTK for centimeter-level accuracy, fast convergence, and reliable performance in UAV applications.
Features
- Utilizes u-blox ZED-F9P module for multi-band RTK with centimeter accuracy.
- DroneCAN protocol for enhanced noise immunity, real-time features, and non-serial port usage.
- Fast 8 Hz navigation update rate ideal for dynamic, high-volume applications.
- Integrated BMM150 or IST8310 compass and STM32G4 processor.
- Robust design with a flatter profile and stronger water resistance for various environments.
Out of stock
The DroneCAN H-RTK F9P is the latest differential high-precision GNSS positioning system, adopting the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo, and BeiDou, along with a fast update rate for highly dynamic and high-volume applications requiring centimeter accuracy.
With the adoption of the DroneCAN Protocol, this unit achieves up to an 8 Hz navigation update rate, offering significant upgradeability, superior noise immunity, and real-time features. Its robustness surpasses traditional UART systems due to increased resistance to electromagnetic interference. Furthermore, it does not occupy any serial port of the flight controller, allowing multiple CAN devices to be connected to the same CAN bus via a hub for streamlined integration. The DroneCAN-F9P incorporates a u-blox ZED-F9P module, a BMM150 compass, and a tri-colored LED indicator. It is powered by an STM32G4 processor clocked at 170 MHz with 512 KByte Flash and 96KByte RAM, supporting DroneCAN firmware upgrades via the DroneCAN GUI Tool and maintaining compatibility with open-source Pixhawk series flight controllers.
Additional Information
| Dimensions | 13 × 11 × 5 cm |
|---|
