SKU: DRFC-0893
📋 GST Invoice Available

Pixhawk 2.4.8 Flight Controller Kit w/ M8N GPS & Telemetry

₹17,617.05 (Inclusive of all taxes)
Out of Stock

The Pixhawk PX4 2.4.8 Flight Controller Kit provides a complete autopilot solution for various UAV platforms, integrating a high-performance FC, u-blox NEO-M8N GPS, and 433MHz telemetry for robust navigation and reliable data links compatible with ArduPilot/PX4 firmware.

Features

  • Advanced Pixhawk PX4 2.4.8 Flight Controller with 32-bit STM32F427 Cortex M4 core, 2MB Flash, and NuttX RTOS for precise flight control.
  • Integrated u-blox NEO-M8N GPS module offering 72-channel concurrent GNSS with 2.0m CEP accuracy for reliable positioning.
  • Includes 433MHz Radio Telemetry for a transparent serial link up to 1 mile, supporting MAVLink protocol for real-time data monitoring.
  • Comprehensive kit featuring a power module, anti-vibration mount, and PPM encoder for simplified integration and setup.

Out of stock

Description

This Pixhawk PX4 2.4.8 Flight Controller combo kit delivers a robust and affordable control solution for quadcopters, fixed-wing aircraft, helicopters, and other robotic platforms. Combining the advanced functionality of the PX4FMU and PX4IO, the Pixhawk 2.4.8 is built around a high-performance 32-bit ARM Cortex M4 processor running NuttX RTOS, providing 14 PWM/servo outputs and multiple bus interfaces for comprehensive system integration.

The kit features a new generation u-blox NEO-M8N GPS module, offering low power consumption and high precision with an ultimate accuracy of 0.6 meters, significantly improving upon previous generations. It supports concurrent GPS/QZSS, GLONASS, and BeiDou protocols, ensuring reliable satellite acquisition and navigation. An included GPS folding antenna base provides convenient and secure mounting.

Further enhancing its capabilities, the kit incorporates a Pixhawk Power Module for clean power delivery from LiPo batteries, along with current and voltage measurements. The 433MHz telemetry system provides a transparent serial link with up to 250kbps air data rates, MAVLink support, and frequency hopping spread spectrum for dependable long-range communication. A universal vibration damping mount is also supplied to isolate sensitive electronics and cameras from motor vibrations.

Key Features

  • High-performance Pixhawk V2.4.8 Flight board with 32-bit ARM Cortex M4 processor and NuttX RTOS for advanced flight control.
  • Integrated redundant power input and failover system ensures reliable operation and safety during flight.
  • Equipped with ST Micro L3GD20H gyroscope, ST Micro X4HBA accelerometer/magnetometer, Invensense MPU 6000, and MEAS MS5607 barometer.
  • u-blox NEO-M8N GPS module offers 72-channel concurrent GNSS, 2.0m CEP position accuracy, and rapid acquisition times.
  • 433MHz Radio Telemetry provides a 1-mile range, 250kbps air data rates, MAVLink protocol, and FHSS for robust communication.
  • Pixhawk Power Module supports up to 6S LiPo batteries, providing 5.3V @ 3A output and integrated voltage/current sensing.
  • PPM Encoder Module converts up to 8 PWM channels into a single PPM composite signal, simplifying wiring to the flight controller.
  • Includes a glass fiber anti-vibration/shock absorber set, enhancing sensor performance by isolating the FC from airframe vibrations.

Applications

  • Multirotor UAVs (quadcopters, hexacopters) for aerial photography, mapping, and general purpose flight.
  • Fixed-wing aircraft and VTOL platforms requiring advanced autonomous navigation.
  • RC helicopters and professional-grade industrial drones.
  • Robotic platforms including cars and boats needing precision control and telemetry.
  • High-end research and amateur drone projects.

Technical Specifications

Flight Controller ModelPixhawk V2.4.8
Processor32-bit STM32F427 Cortex M4 core with FPU (168 MHz, 2MB Flash, 128KB RAM)
Coprocessor32-bit STM32F103 (Failsafe)
Operating SystemNuttX RTOS
Sensors (FC)ST Micro L3GD20H (16-bit gyro), ST Micro X4HBA 303H (14-bit accel/mag), Invensense MPU 6000 (3-axis accel/gyro), MEAS MS5607 (barometer)
PWM/Servo Outputs14
Interfaces5x UART, 2x CAN, Spektrum DSM/DSM2/DSM-X, Futaba S.BUS in/out, PPM sum input, RSSI (PWM/voltage), I2C, SPI, 3.3/6.6V ADC, micro USB
GPS Moduleu-blox NEO-M8N (72-channel M8 engine)
GNSS Support (GPS)GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, SBAS L1 C/A (WAAS, EGNOS, MSAS), Galileo-ready E1B/C
Position Accuracy (GPS)2.0 m CEP (0.6m ultimate)
Nav. Update Rate (GPS)Single GNSS: up to 18 Hz; Concurrent GNSS: up to 10 Hz
Telemetry Frequency433MHz
Telemetry Transmit PowerUp to 20dBm (100mW)
Telemetry Receiver Sensitivity-121 dBm
Telemetry Air Data RatesUp to 250kbps
Telemetry RangeApprox. 1 mile
Power Module Max Input Voltage28V (up to 6S LiPo)
Power Module Max Current Sensing90A
Power Module Output5.3V @ 3A max
PPM Encoder Input Channels8
PPM Encoder OutputPPM SUM × 1 / MUX × 1
Anti-vibration MaterialGlass fiber
PPM Encoder Dimensions28 x 19 x 5 mm
PPM Encoder Weight12 gm

Frequently Asked Questions

What firmware is compatible with the Pixhawk 2.4.8 Flight Controller in this kit?

The Pixhawk 2.4.8 FC is primarily designed to run ArduPilot or PX4 open-source autopilot firmware. These firmwares provide comprehensive flight modes, navigation capabilities, and robust control for a wide range of UAV and robotic applications, offering flexibility and extensive community support for configuration and updates.

How does the u-blox NEO-M8N GPS module improve navigation accuracy for my drone?

The NEO-M8N module offers concurrent reception of GPS, GLONASS, and BeiDou signals, significantly enhancing satellite acquisition and position accuracy. With a CEP of 2.0 meters and an ultimate accuracy of 0.6 meters, it provides highly precise navigation data, crucial for autonomous flight, waypoint missions, and stable positioning performance.

What are the power requirements and how does the included Power Module work?

The Pixhawk 2.4.8 FC requires a clean 5V power supply. The included Power Module connects to your LiPo battery (up to 6S/28V) and provides a regulated 5.3V at 3A to the FC. It also supplies essential battery voltage and current consumption data back to the flight controller for monitoring.

Can I use different telemetry frequencies or radio control systems with this kit?

This kit includes a 433MHz telemetry radio, which is common for long-range data links. While the Pixhawk FC supports various radio control protocols (e.g., Spektrum DSM/DSM2/DSM-X, Futaba S.BUS, PPM sum), changing the telemetry frequency would require purchasing a compatible radio set. Ensure frequency legality in your region.

What is the purpose of the PPM Encoder Module included in the kit?

The PPM Encoder Module simplifies wiring for conventional RC receivers. Instead of connecting individual PWM channels from an 8-channel receiver to the flight controller, the encoder converts these into a single PPM sum signal. This reduces cable clutter, streamlines setup, and is compatible with the Pixhawk's PPM input.

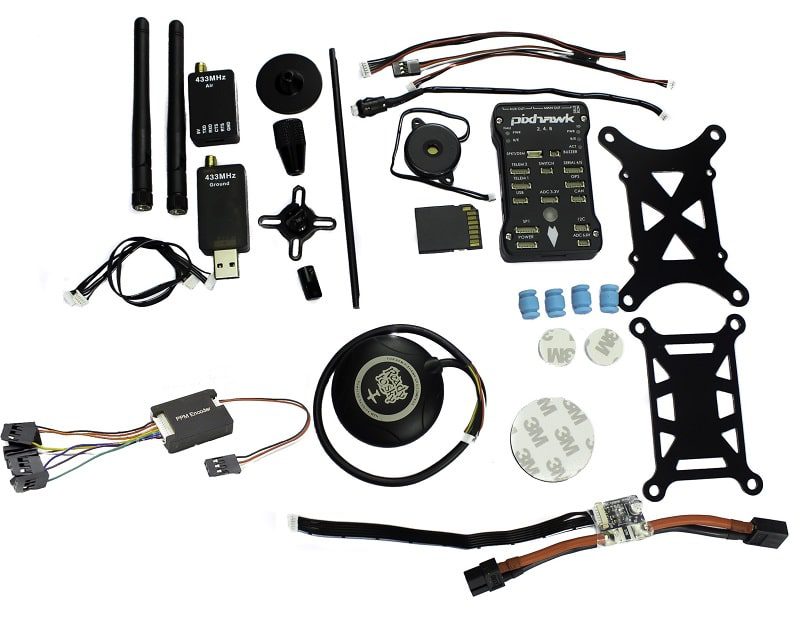

Package Includes

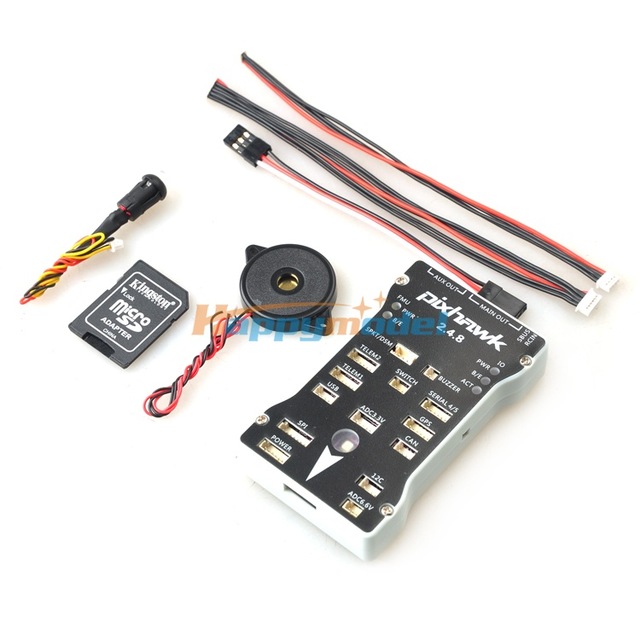

  • 1 x Pixhawk V2.4.8 Flight board with Original Shell
  • 1 x 16GB TF card (IO firmware pre-written)
  • 3 x Connecting Cables
  • 1 x Buzzer Module

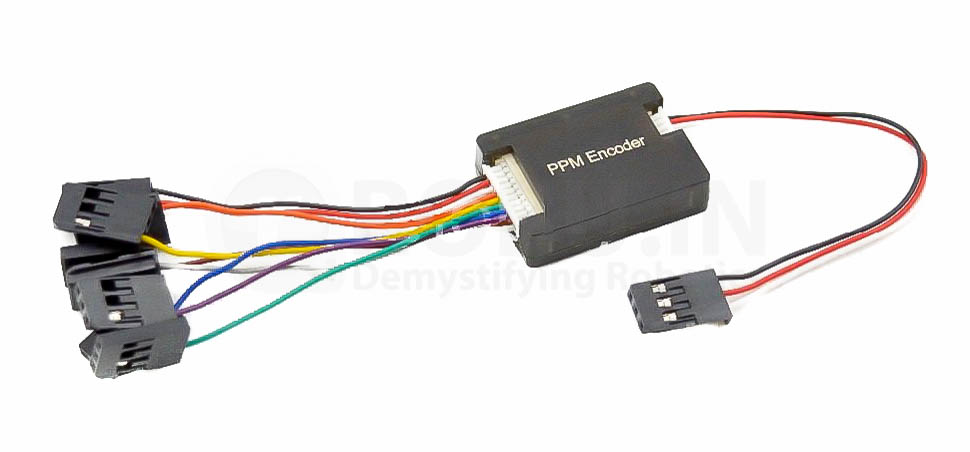

  • 1 x Pixhawk PPM Encoder Module
  • 1 x JR plug 10P input end cable (100mm)
  • 1 x JR plug 4P output end cable (100mm)
  • 1 x Glass Fiber Flight Controller Anti-vibration/Shock absorber Set

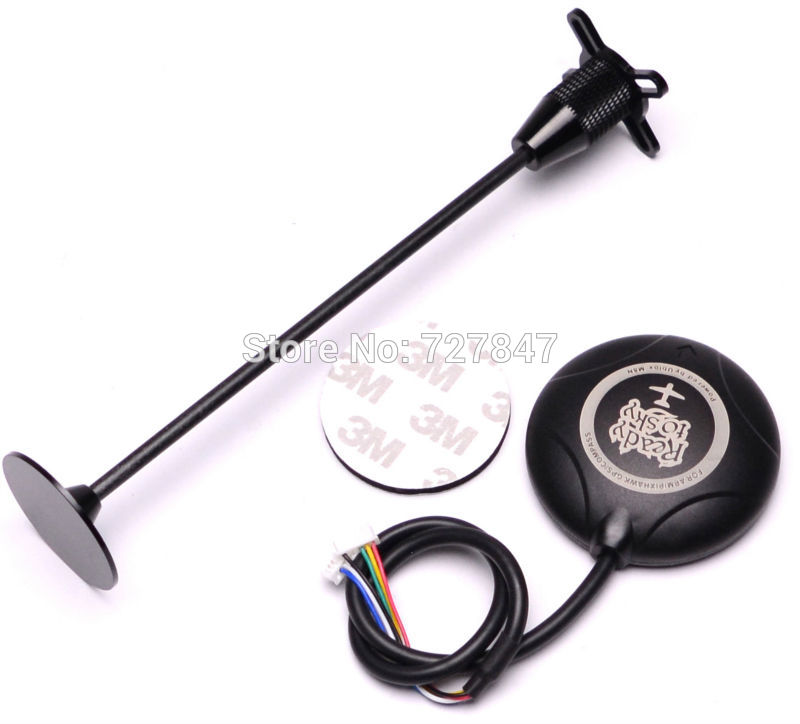

  • 1 x NEO-M8N GPS Module with translucent Shell
  • 2 x Cables (APM/PIX)
  • 1 x GPS Folding Base Antenna set

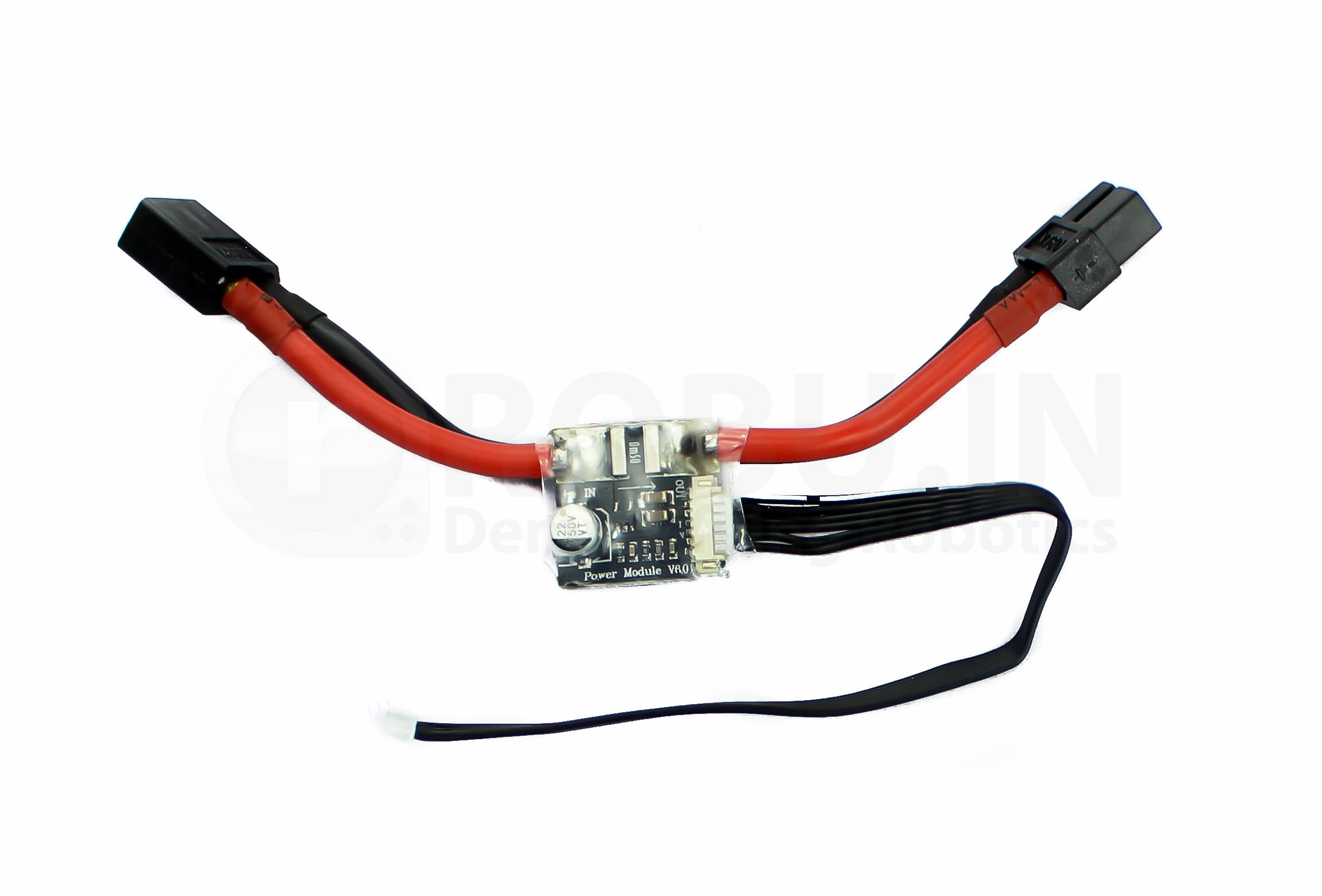

  • 1 x APM 2.5.2/2.6/2.8 Pixhawk Power Module V1.0
  • 2 x 3.5dbi antennas
  • 1 x 3DR Radio Telemetry with case (Tx and Rx, 433MHz)

Additional Information

Dimensions 15 × 10 × 6 cm
