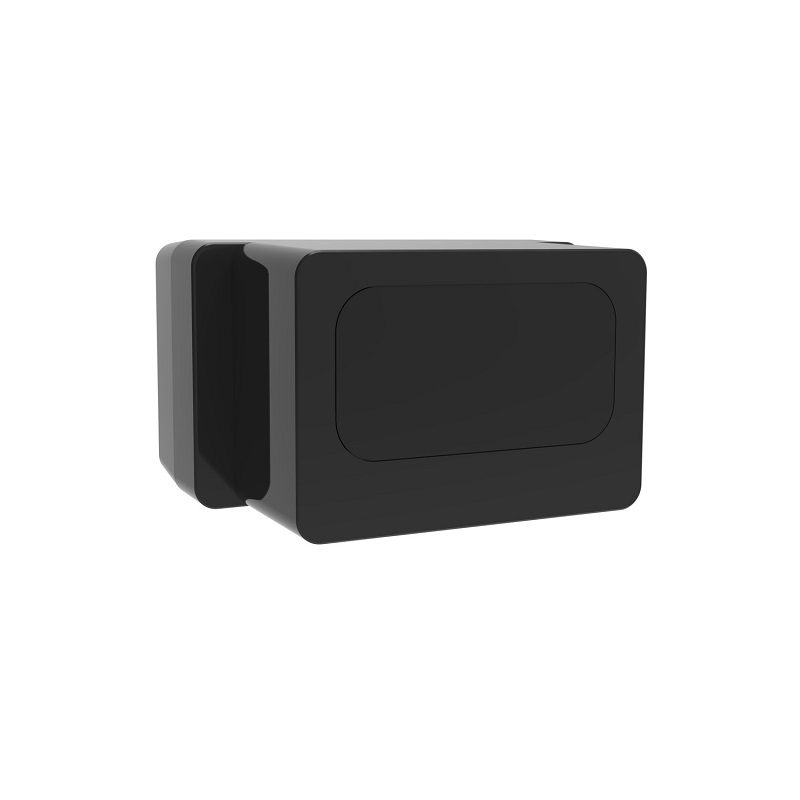

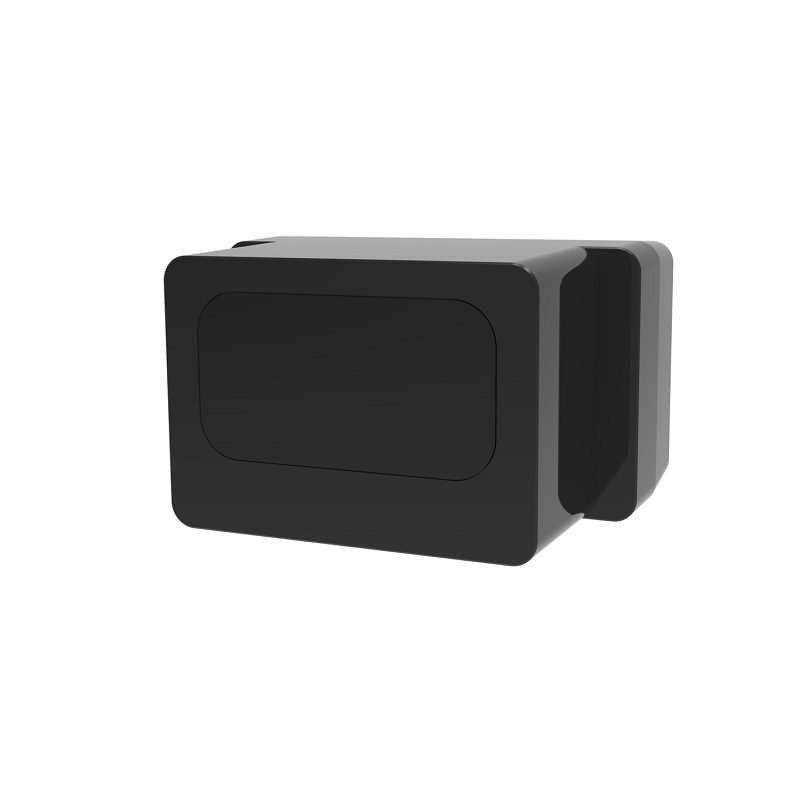

Benewake TFA300 Ultra-High-Frequency Lightweight UAV LiDAR Sensor (Range: 0.1-270m, IP67 Housing)
The Benewake TFA300 is an ultra-high-frequency, lightweight LiDAR sensor designed for UAV and drone applications, offering a 0.1-270m range with ±10cm accuracy. Featuring a compact IP67-rated housing, it provides plug-and-play integration via DroneCAN and JST GH connectors for seamless compatibility with modern flight controllers and EO/IR gimbal systems.
Features
- Ultra-high-frequency sensing up to 10,000 Hz for real-time detection of fast-moving objects.
- High accuracy of ±10 cm for targets under 10 meters and 1% for longer distances up to 270 meters.
- IP67-rated protective housing ensures reliable operation in harsh, all-weather conditions (-20°C to +60°C).
- Lightweight design at 34.5 grams, optimized for UAV SWaP-C (Size, Weight, Power, and Cost) requirements.
- Plug-and-play integration via DroneCAN protocol and JST GH connectors for modern flight controllers.
Out of stock
The Benewake TFA300 UAV LiDAR sensor employs time-of-flight (ToF) laser ranging technology to deliver precise distance measurements with an ultra-narrow 0.5° field of view. Its high-frequency data acquisition, adjustable from 1–1,000 Hz to a peak of 10,000 Hz, enables rapid point-cloud generation for real-time object tracking and altitude hold, even for targets moving at high velocities.
Engineered for demanding aerial environments, the sensor operates reliably across a temperature range of -20°C to +60°C and withstands ambient light levels up to 100 KLux. The IP67-rated housing provides robust protection against rain, dust, and fog, making it suitable for search-and-rescue, high-speed FPV racing, and automated delivery drone applications where consistent performance is critical.
Additional Information
| Weight | 0.0345 kg |
|---|---|
| Dimensions | 4.8 × 3.7 cm |
