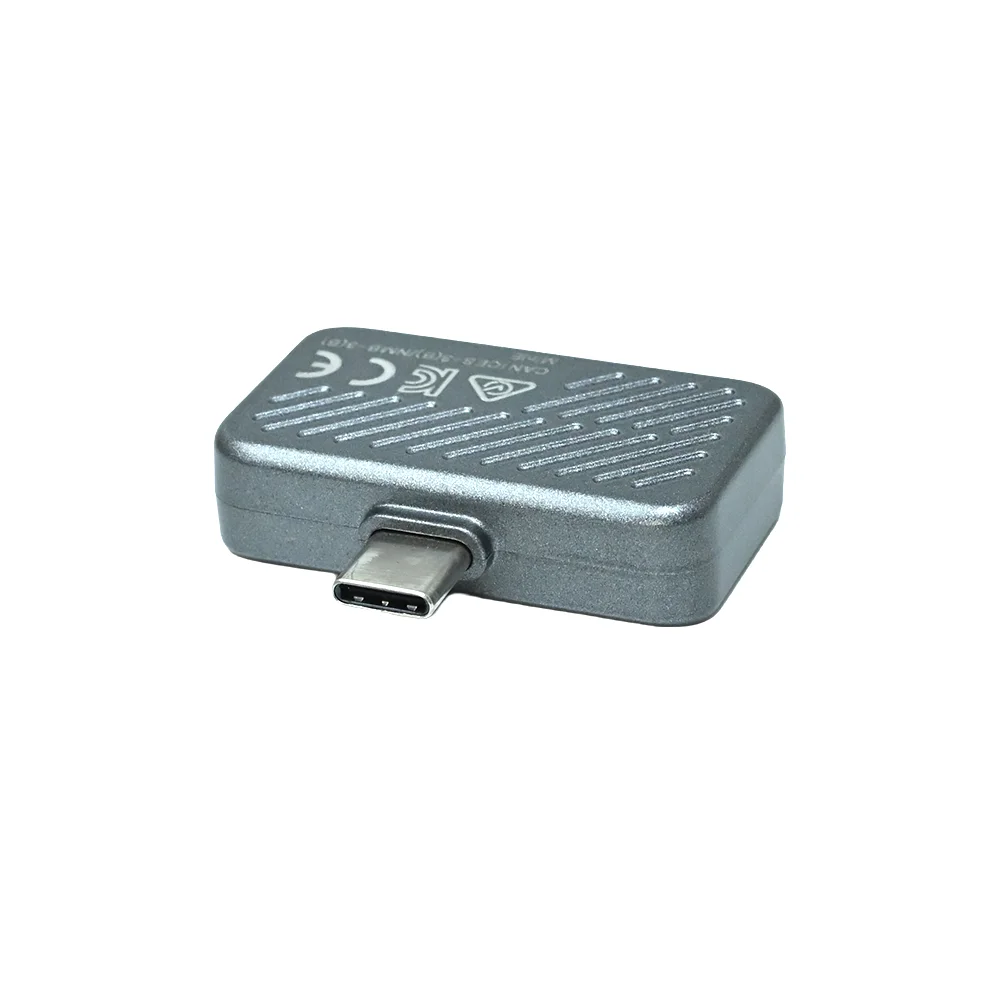

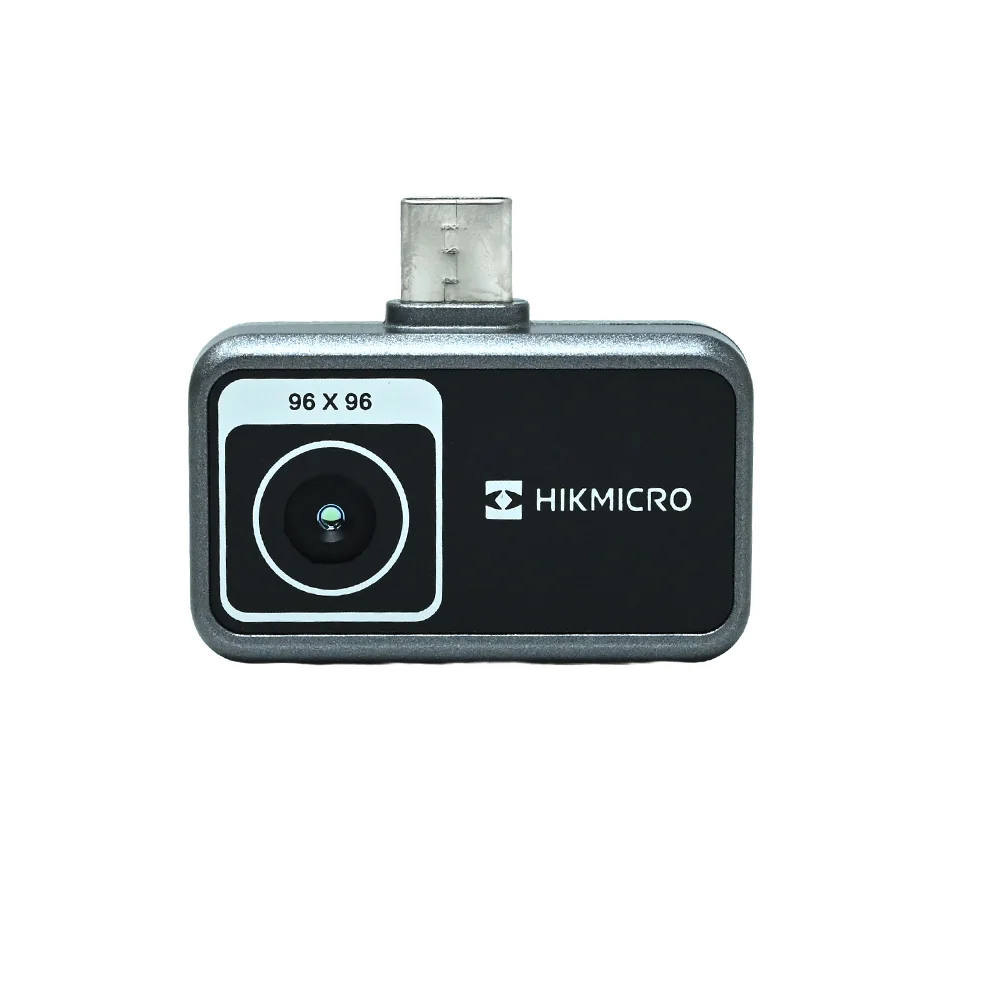

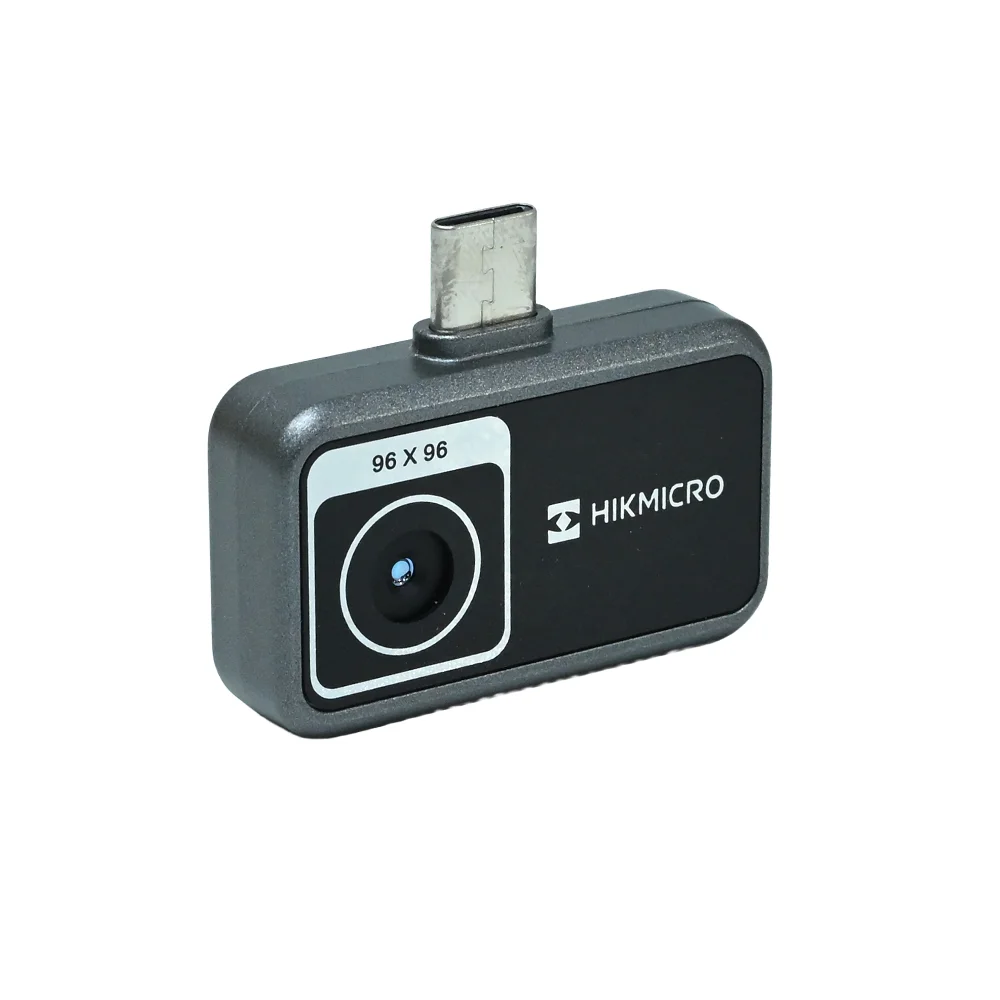

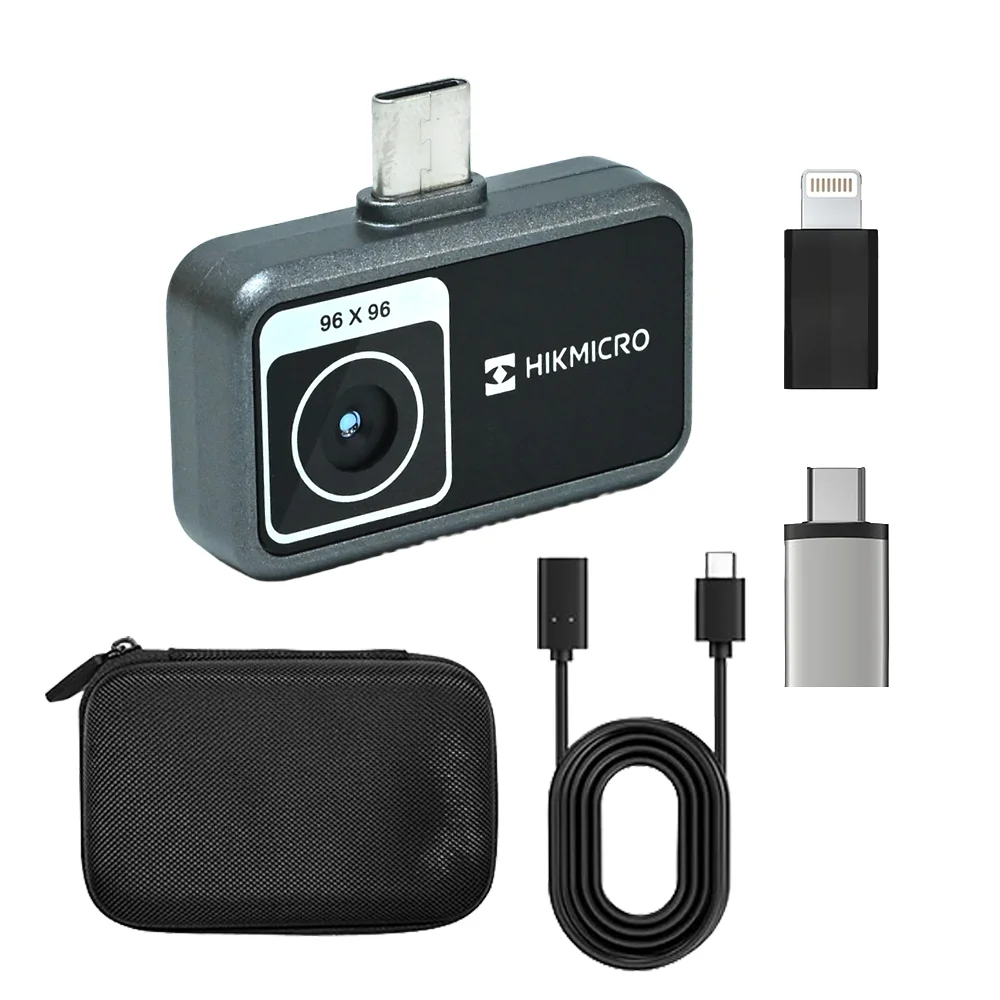

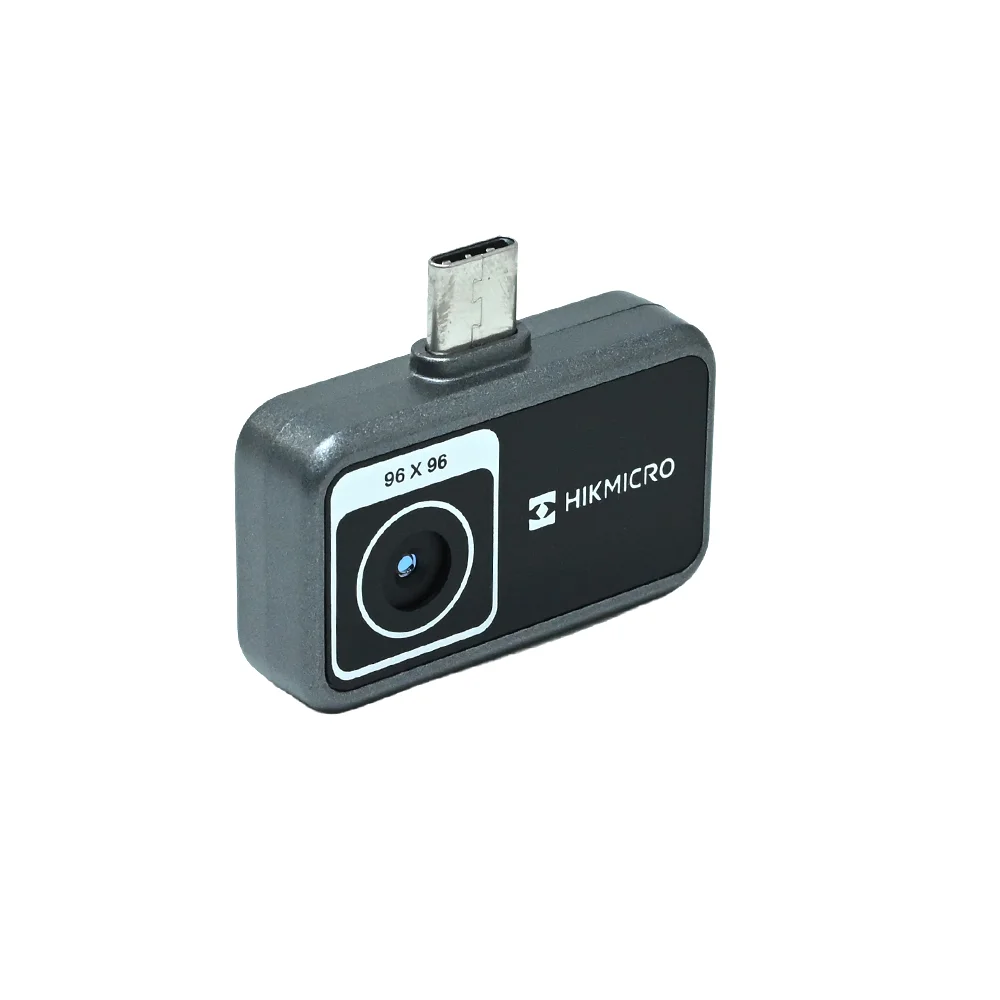

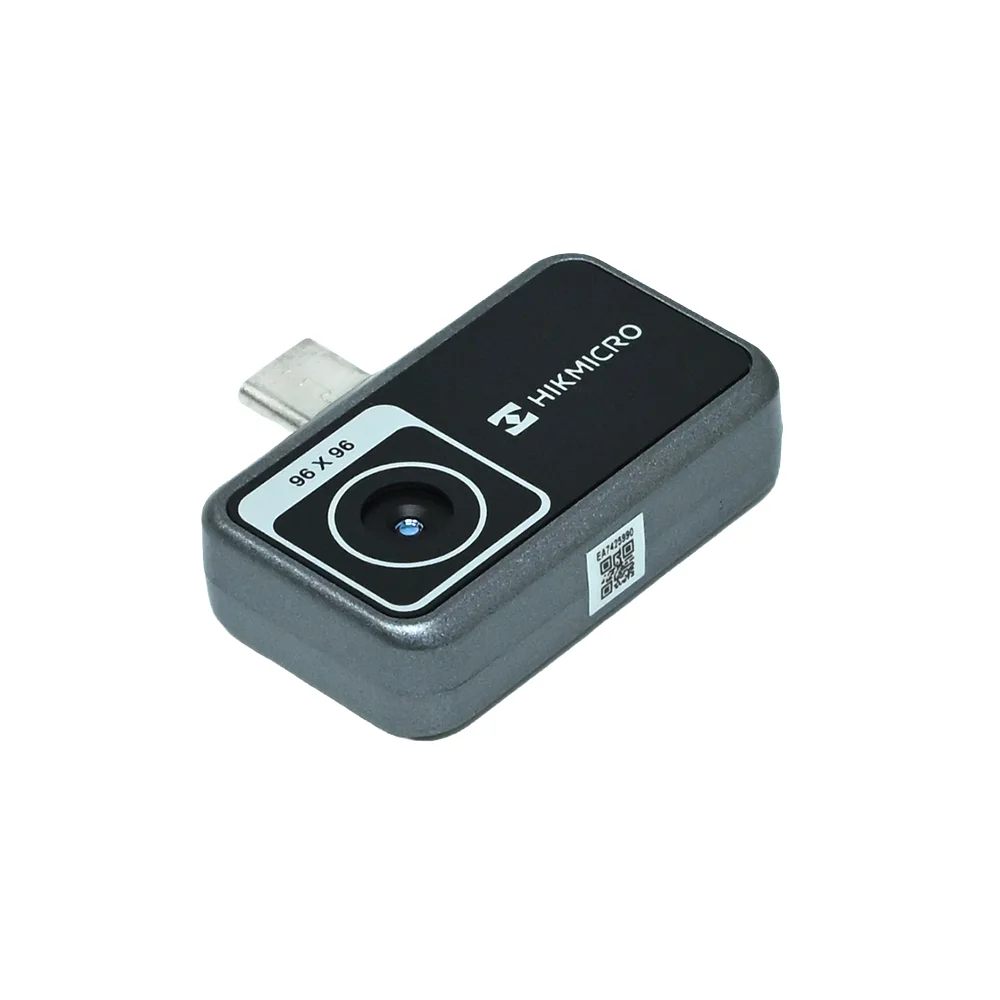

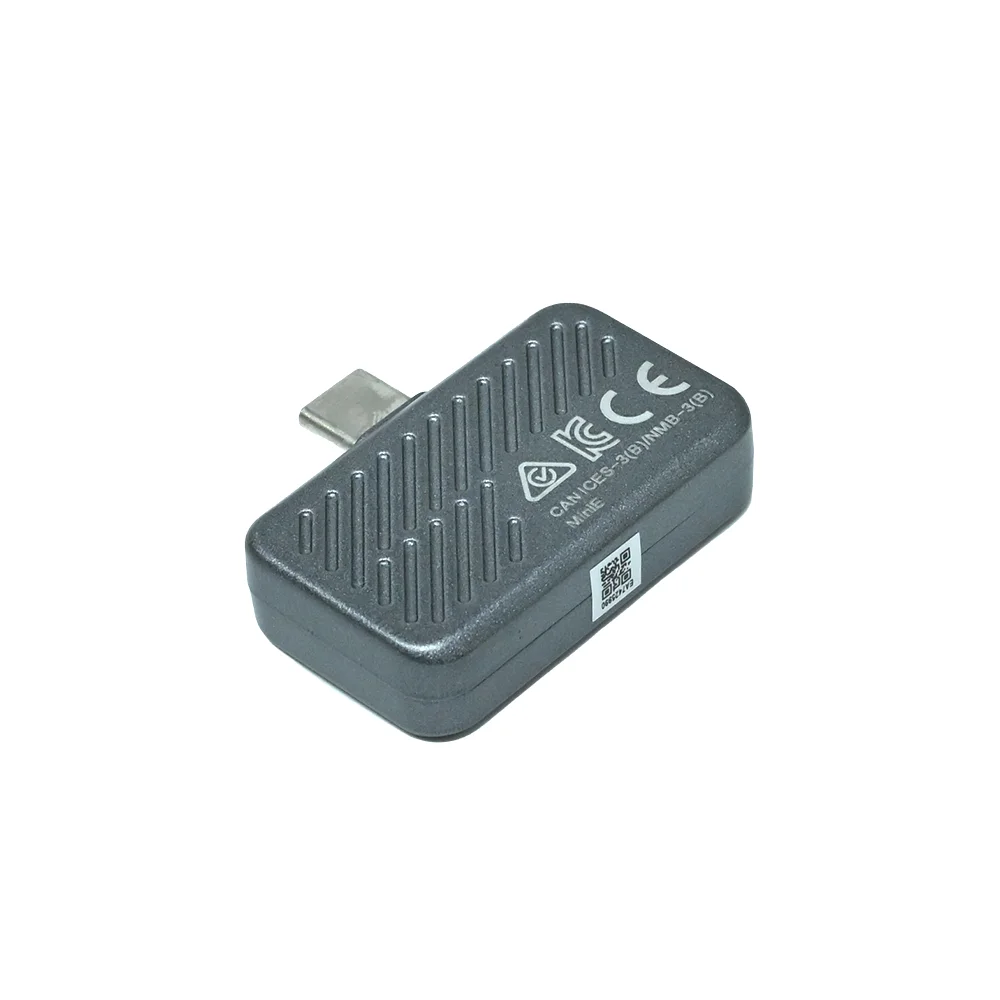

HIKMICRO MiniE Infrared Thermal Imaging Camera Type-C 25Hz
The HIKMICRO MiniE is a compact Type-C thermal imaging camera that transforms smartphones and tablets into portable inspection tools, featuring a 96×96 pixel VOx microbolometer, 25Hz refresh rate, and a wide -20°C to 400°C temperature range for real-time thermal diagnostics.
Features
- Compact Smartphone Thermal Imager: Ultra-miniature 20g design with Type-C and Lightning adapter support for plug-and-play connectivity with iOS, Android, and Windows devices.
- 96×96 IR Resolution & SuperIR Tech: Features a sensitive VOx microbolometer with SuperIR image enhancement for clear, detailed thermal visualization and accurate hotspot detection.
- Wide Industrial Temperature Range: Measures from -20°C to 400°C with ±2% accuracy, suitable for electrical inspections, mechanical troubleshooting, and building diagnostics.
- 25Hz Real-Time Imaging: Delivers smooth, live thermal video feed at 25 frames per second for dynamic inspection of moving components or thermal patterns.
- Low Power & Portable: Operates at 310mW via 2.7-5.5V USB power, making it an ideal on-the-go tool for field service technicians, engineers, and DIY enthusiasts.
Out of stock
The HIKMICRO MiniE Infrared Thermal Imaging Camera is a professional-grade, ultra-compact peripheral designed for mobile thermal diagnostics. It integrates a high-sensitivity 96×96 pixel vanadium oxide (VOx) microbolometer sensor with a spectral response of 7.5-14 μm, capable of detecting thermal differences as fine as <50 mK (NETD). The embedded SuperIR image processing engine enhances contrast and detail in real-time, outputting a smooth 25Hz video stream directly to your device’s screen via a standard USB Type-C or Lightning connection.
Engineered for field use, the MiniE operates from a standard 2.7-5.5V USB power supply with a low 310mW power draw, ensuring compatibility with phones, tablets, or power banks. Its fixed 1.35mm lens provides a 50°×50° field of view, ideal for close-up inspections of circuit boards, mechanical assemblies, HVAC systems, and building envelopes. The robust housing and included protective case offer durability for professional environments, making it a versatile tool for predictive maintenance, energy auditing, and research applications.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 4.156 × 3.403 cm |
