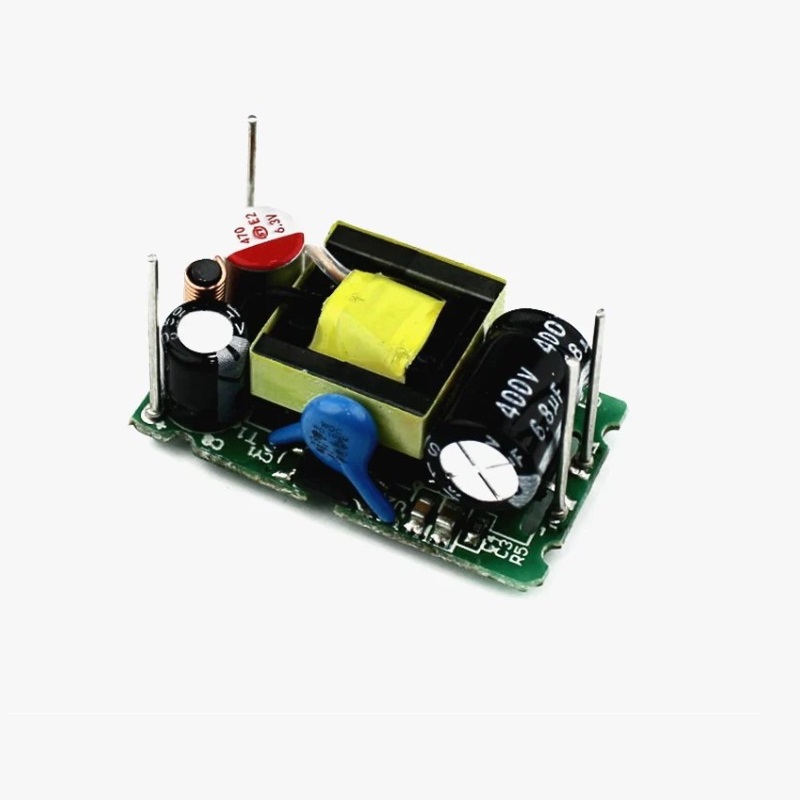

Hi-Link HLK-PM01L AC-DC 3W 5V Power Module
The Hi-Link HLK-PM01L is a compact 3W AC-DC power module that converts 100-240V AC mains input to a stable 5V DC output at up to 600mA, providing a reliable power source for low-power electronics, IoT devices, and embedded systems like Arduino and Raspberry Pi.
Features
- Universal AC Input (100-240V, 50/60Hz) for global compatibility.
- Stable 5V DC Output (±5%) with up to 600mA continuous current.
- Compact, PCB-mountable form factor for easy integration into enclosures.
- Built-in short-circuit, over-current, and over-voltage protection.
- 70% typical conversion efficiency with low standby power consumption.
Out of stock
The HLK-PM01L is a non-isolated switching power supply module designed for reliable, low-power voltage conversion. It employs a high-frequency switching topology to efficiently step down high-voltage AC mains to a precise 5V DC rail, suitable for powering microcontrollers, sensors, and small electronic loads.
This module features robust internal protection circuits, including output short-circuit and over-current safeguards, ensuring stable operation and enhanced system durability. Its compact, open-frame PCB design facilitates direct soldering or terminal block connection, making it ideal for integration into space-constrained applications such as smart home devices, industrial control boards, and embedded system power supplies.
Additional Information
| Weight | 0.014 kg |
|---|---|
| Dimensions | 11 × 8 × 4 cm |
