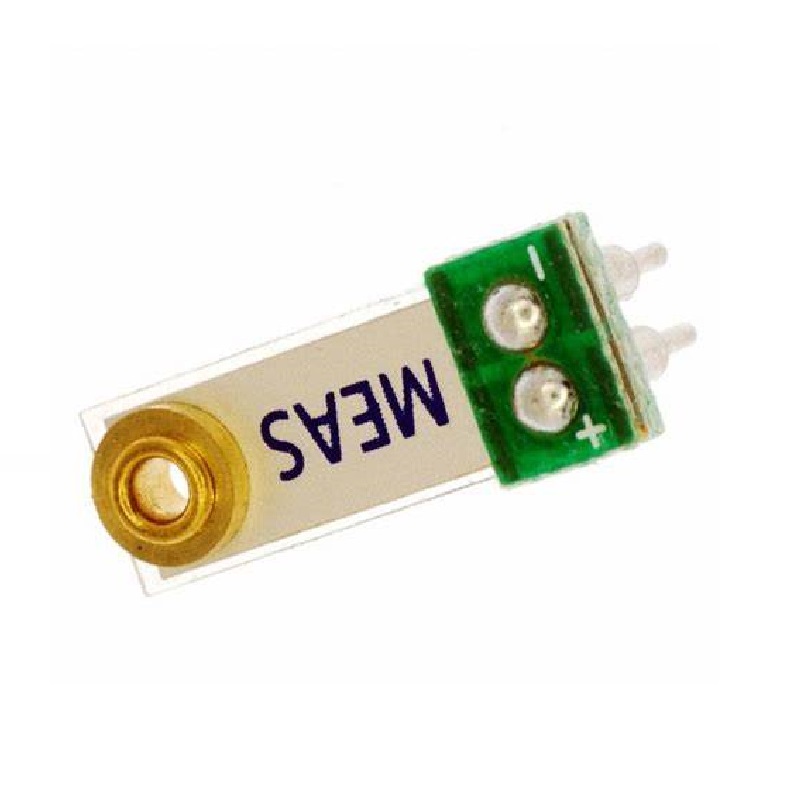

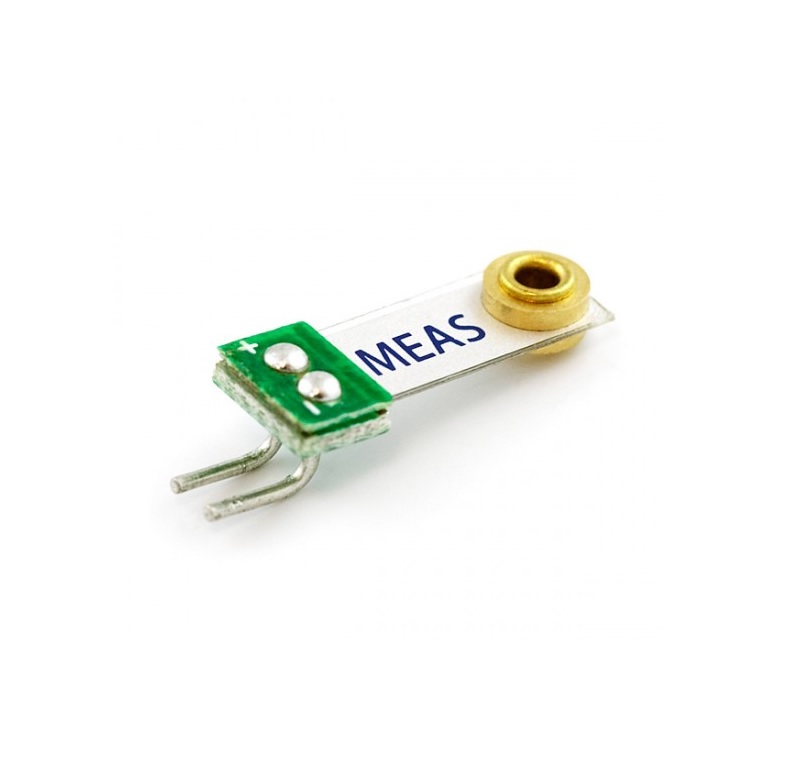

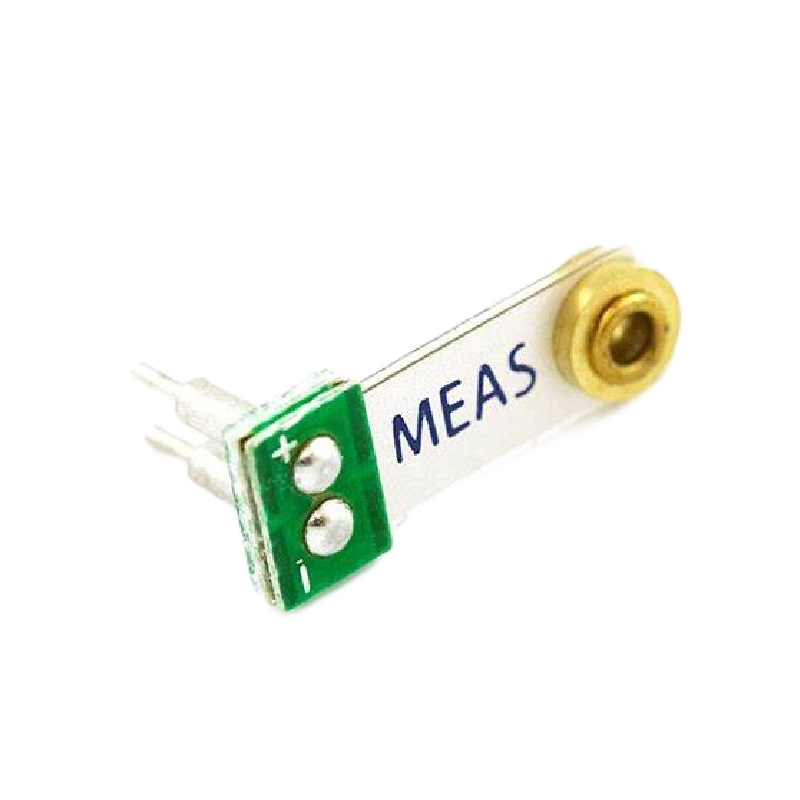

TE Connectivity MiniSense 100 Vibration Sensor 260pC/g Vertical Mount
The TE Connectivity MiniSense 100 is a low-cost, cantilever-type piezoelectric vibration sensor designed for PCB mounting. It offers high sensitivity (260 pC/g) for detecting low-frequency vibrations and impacts, making it compatible with industrial monitoring systems, PLCs, and data acquisition modules.
Features
- High Voltage Sensitivity: 1 V/g (260 pC/g) for precise low-amplitude vibration detection.
- Low-Frequency Resonance: Optimized for frequencies up to 40 Hz (2,400 RPM), ideal for machinery monitoring.
- Flexible Mounting: Supports both horizontal and vertical PCB mounting orientations.
- Shielded Construction: Integrated shielding provides improved rejection of RFI/EMI interference.
- Rugged PVDF Element: Flexible piezoelectric sensing material withstands high shock overload.
Out of stock
The MiniSense 100 vibration sensor utilizes a cantilever design with an inertial mass to provide high sensitivity at low frequencies. Its core is a rugged Polyvinylidene Fluoride (PVDF) piezoelectric sensing element, which generates a charge proportional to applied acceleration, offering excellent linearity and a wide dynamic range. This makes it suitable for detecting both continuous vibration and discrete impact events.
The sensor features a shielded active area to minimize electromagnetic interference, ensuring signal integrity in electrically noisy environments. Its solderable pins facilitate secure PCB mounting, and the design allows for potential mass modification (consult factory) to tailor frequency response and sensitivity for specific applications.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
