Description

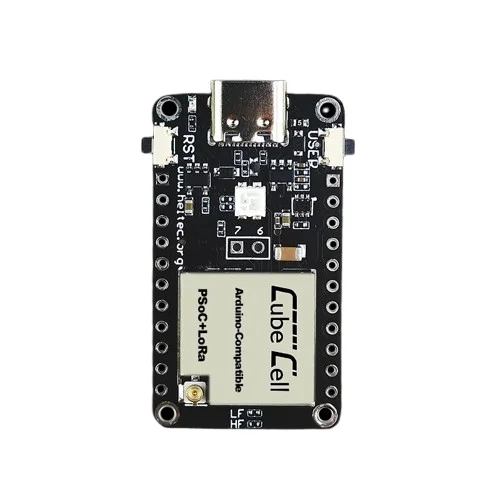

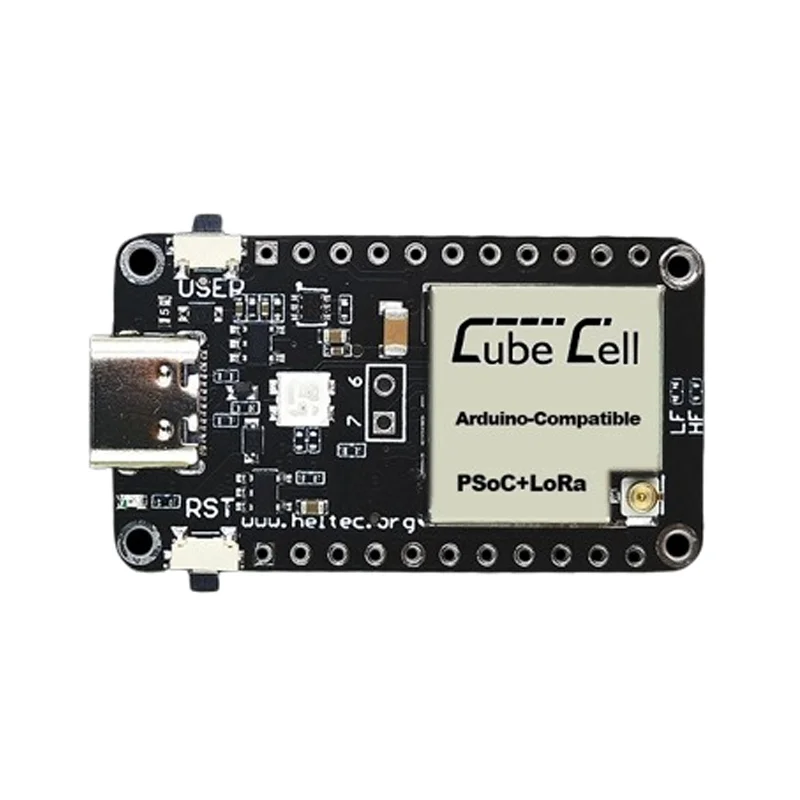

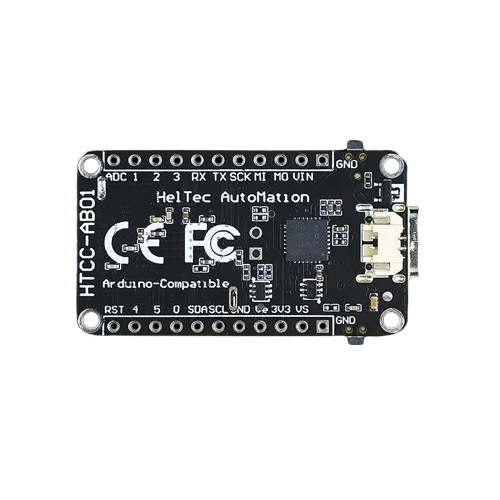

The Heltec Automation Automation CubeCell AB01 V2 is a feature-rich LoRaWAN node development board engineered for long-range, low-power IoT deployments. It integrates the ASR6502 system-on-chip, which combines a 48MHz ARM Cortex-M0+ microcontroller with a Semtech SX1262 LoRa transceiver, providing a compact and efficient wireless processing core. The board’s architecture is optimized for minimal energy consumption, supporting deep sleep currents as low as 3.5µA to maximize operational lifespan when powered by its onboard 3.7V lithium battery or an attached solar panel.
Designed for robust field performance, the AB01 V2 includes a fully integrated power management system with lithium battery charge/discharge control, overcharge protection, and automatic power source selection between USB and battery. Its RF section features impedance-matched circuitry connected to an IPEX antenna connector, ensuring stable communication and extended range. The development environment is streamlined through Arduino core support and a built-in CP2102 USB-to-UART bridge, allowing developers to rapidly deploy and debug LoRaWAN applications for smart agriculture, environmental monitoring, and asset tracking networks.
