Heltec Automation Automation CT62 LoRa Module ESP32-C3 SX1262 433-510MHz
The Heltec Automation Automation CT62 is a compact, dual-mode wireless module integrating an ESP32-C3FN4 RISC-V processor with a Semtech SX1262 LoRa transceiver. It supports Wi-Fi 802.11 b/g/n, Bluetooth 5.1, and LoRaWAN 1.0.2 for long-range, low-power IoT deployments, programmable via the Arduino IDE.
Features
- Dual-mode wireless connectivity with ESP32-C3FN4 (Wi-Fi/BLE) and Semtech SX1262 LoRa transceiver for versatile IoT networks.
- Ultra-low power operation with deep sleep current as low as 10µA, ideal for battery-powered remote sensors.
- Supports LoRaWAN 1.0.2 protocol on 433-510MHz bands for long-range, sub-GHz communication.
- Compact 1.27mm stamp-hole SMT package (17.78 x 17.78mm) for space-constrained, high-volume embedded designs.

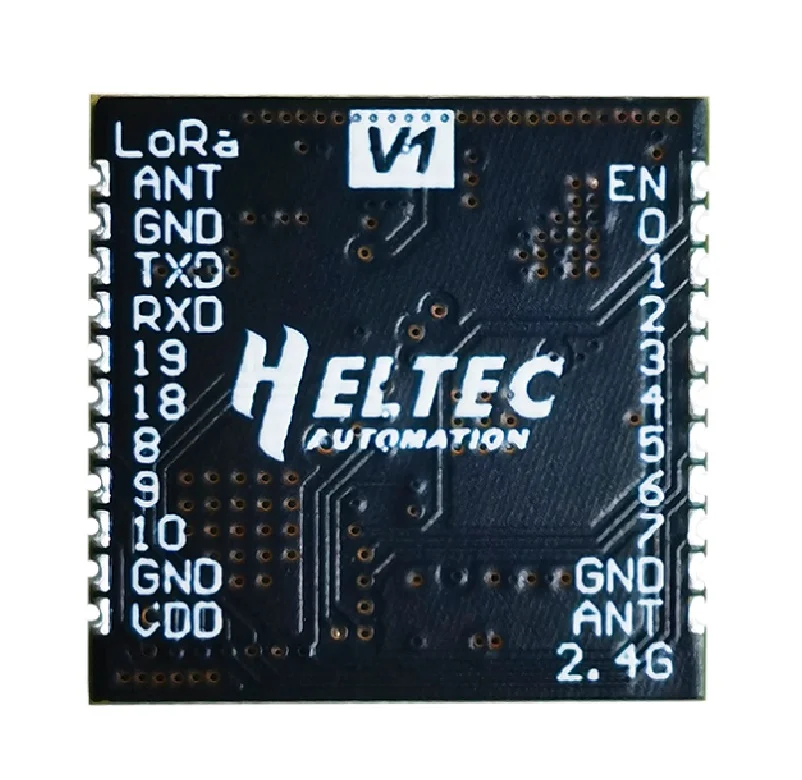

- Full Arduino IDE compatibility and onboard IPEX connectors for both 2.4GHz Wi-Fi/BLE and LoRa antennas.
Out of stock
The HT-CT62 module from Heltec Automation Automation combines Espressif’s ESP32-C3FN4—a 32-bit RISC-V processor running at up to 160 MHz—with Semtech’s SX1262 LoRa transceiver. This architecture provides a robust foundation for IoT edge nodes requiring both local network connectivity via 2.4 GHz Wi-Fi/Bluetooth 5.1 and long-range, low-data-rate communication via LoRa/LoRaWAN. The module’s integrated 4MB SiP flash and ample SRAM support complex application logic and Over-The-Air (OTA) updates.
Engineered for extreme power efficiency, the CT62 achieves a deep sleep current of just 10µA, enabling multi-year operation on coin-cell or small LiPo batteries. Its impedance-matched RF front-end and dual IPEX antenna connectors (one for 2.4GHz, one for LoRa) ensure optimal signal integrity and range. The compact, surface-mount form factor is designed for automated assembly, making it suitable for scalable smart city, agricultural telemetry, and industrial monitoring solutions.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.778 × 1.778 cm |
