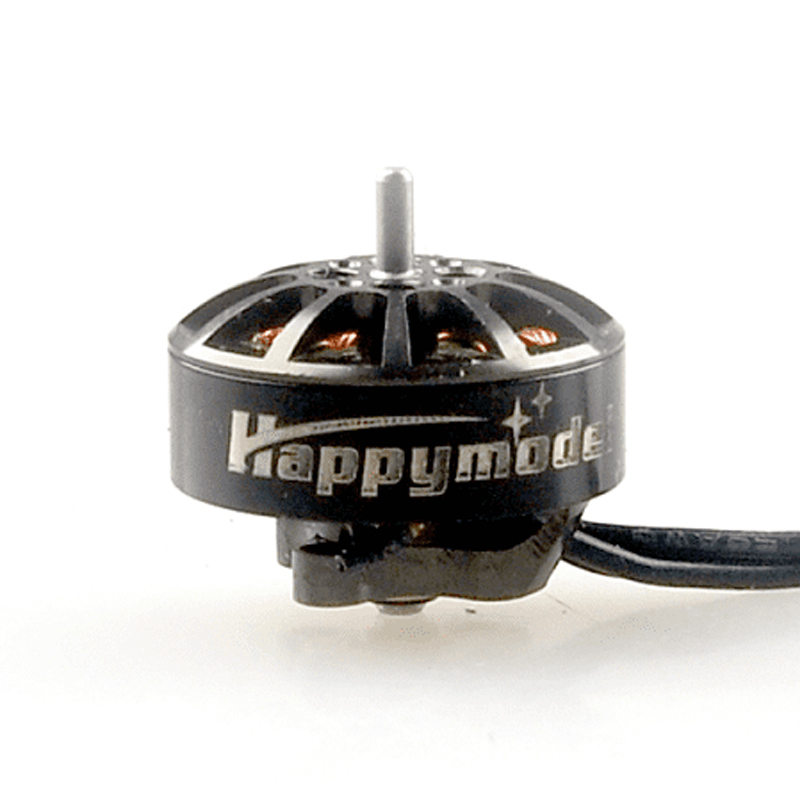

HappyModel EX1404 KV4800 Brushless Motor (CW)

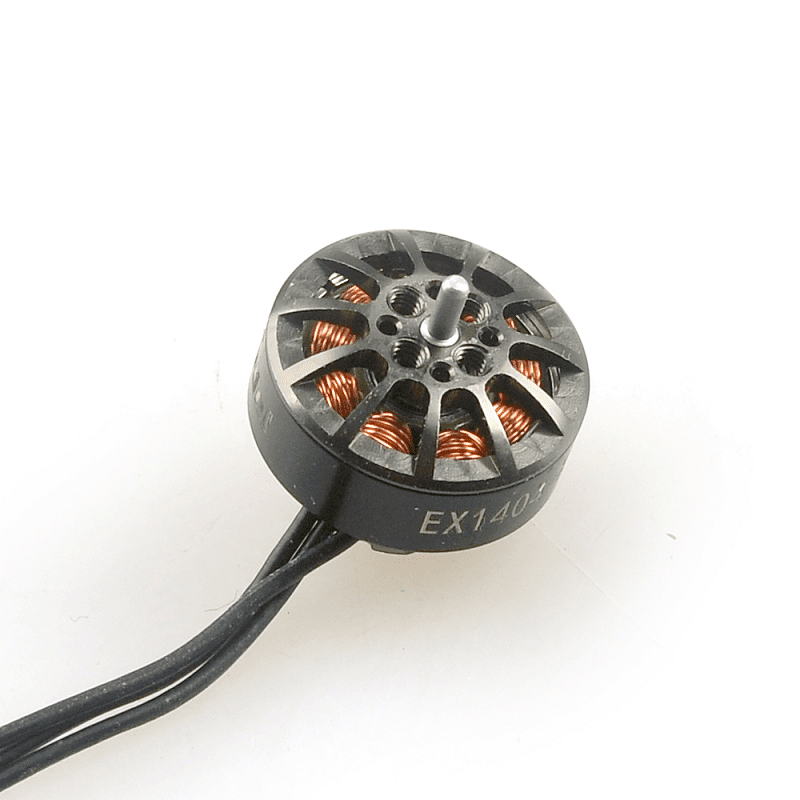

HappyModel EX1404 KV4800 Brushless Motor (CW) - Image 2
SKU: DRFC-2754
📋 GST Invoice Available

HappyModel EX1404 KV4800 Brushless Motor (CW)

₹989.00 (Inclusive of all taxes)
Out of Stock

The HappyModel EX1404 KV4800 is a high-KV brushless motor engineered for lightweight micro and toothpick-class FPV drones requiring high RPM on 3S or 4S LiPo batteries. Its 9N12P configuration and compact 17.8mm diameter deliver efficient, responsive power for acrobatic flight.

Features

  • High 4800KV rating optimized for 3S-4S LiPo micro drone builds.
  • Ultra-lightweight at 8.7 grams for exceptional power-to-weight ratio.
  • Compact 17.8mm diameter and 17.6mm length with a 1.5mm shaft.
  • 9N12P stator configuration for smooth, reliable, and efficient operation.
  • Compatible with popular micro propellers like Gemfan 4024 and 3018.

Out of stock

Description

The HappyModel EX1404 KV4800 brushless motor is designed to provide high-RPM performance in an exceptionally lightweight package. Its 4800KV winding is specifically tuned for 3S and 4S LiPo batteries, making it ideal for micro and toothpick quadcopters where rapid throttle response and high top-end speed are critical.

Constructed with a 9N12P stator configuration, the motor ensures smooth cogging transitions and efficient power delivery. The compact 17.8mm diameter and 17.6mm length allow it to fit into tight frame spaces while the 1.5mm shaft diameter is standard for micro propellers. This motor is a core component for pilots building high-performance, sub-250g FPV drones.

Key Features

  • High-KV Performance: 4800KV winding delivers high RPM for explosive acceleration and top speed on 3S-4S power systems.
  • Ultra-Lightweight Design: At only 8.7g, it minimizes overall drone weight, crucial for micro-class agility and flight time.
  • 9N12P Stator Configuration: Provides a balanced magnetic field for smooth rotation, reduced vibration, and improved efficiency.
  • Compact Form Factor: 17.8mm diameter and short 17.6mm stator length enable installation in the most space-constrained micro frames.
  • Durable Construction: Features high-quality bearings and a robust bell housing for reliable operation under high-stress flight conditions.
  • Broad Propeller Compatibility: Works seamlessly with a range of micro propellers, including popular 3-inch and 4-inch bi-blade and tri-blade designs.

Applications

  • Ultra-lightweight 3-inch and 4-inch toothpick FPV drones for freestyle and racing.
  • High-performance micro and nano long-range builds requiring efficient 4S power.
  • Sub-250g Cinewhoop platforms where weight savings and punchy throttle response are critical.
  • Custom micro drone builds targeting maximum power density in a minimal footprint.

Technical Specifications

Motor ModelEX1404
KV Rating4800 KV
Stator Configuration9N12P
Shaft Diameter1.5 mm
Motor Diameter17.8 mm
Stator Length17.6 mm
Weight8.7 g
Recommended Battery3S-4S LiPo
Mounting Pattern9x9mm / M2
RotationCW (Clockwise)

Frequently Asked Questions

What is the recommended battery for the EX1404 4800KV motor?

The EX1404 4800KV motor is optimized for 3S and 4S LiPo batteries. Using it on 4S will provide maximum RPM and thrust for aggressive flying, while 3S offers a more efficient and slightly tamer power curve, ideal for longer flight times or lighter builds.

What is the mounting hole pattern for this motor?

The HappyModel EX1404 uses a standard 9x9mm mounting hole pattern with M2 screws. This is a common pattern for micro and toothpick-class drone frames, ensuring broad compatibility with popular frame designs on the market.

Is this motor suitable for a 2.5-inch or 3-inch Cinewhoop?

Yes, the EX1404 4800KV is an excellent choice for lightweight 2.5-inch and 3-inch Cinewhoops running on 3S or 4S. Its high KV provides the instant torque needed for ducted flight, and its minimal weight helps maintain the sub-250g category for regulations.

What propellers are compatible with the 1.5mm shaft?

The motor's 1.5mm shaft is compatible with a wide range of micro propellers that use a 1.5mm bore, including popular models like the Gemfan 4024, HQProp 3x3, and many 3-inch and 4-inch tri-blade props designed for high-KV micro motors.

Package Includes

  • 1 x HappyModel EX1404 KV4800 Brushless Motor (CW)

Additional Information

Weight 0.15 kg
Dimensions 12 × 8 × 2 cm
