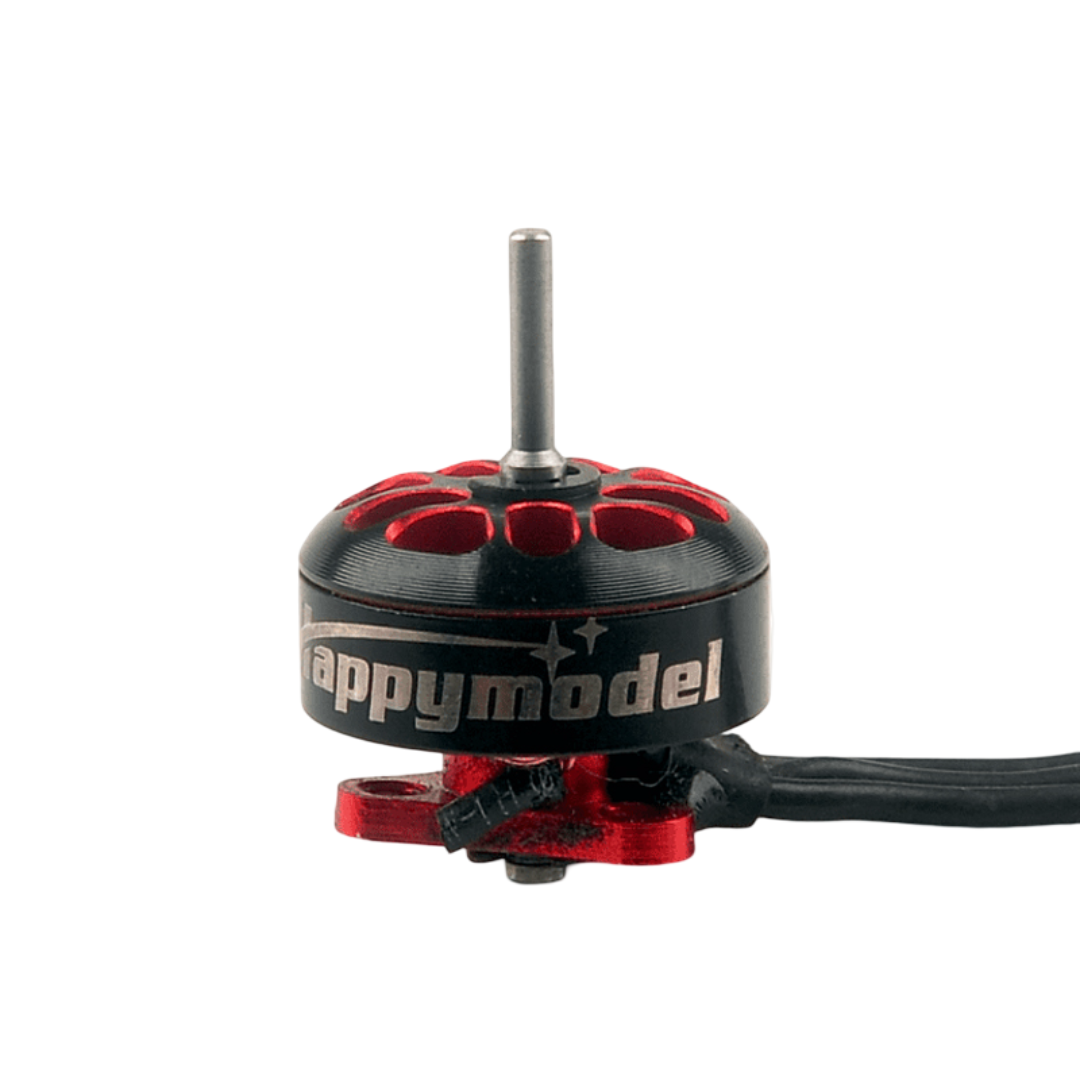

HappyModel EX0802 KV25000 Brushless Motor (CW)

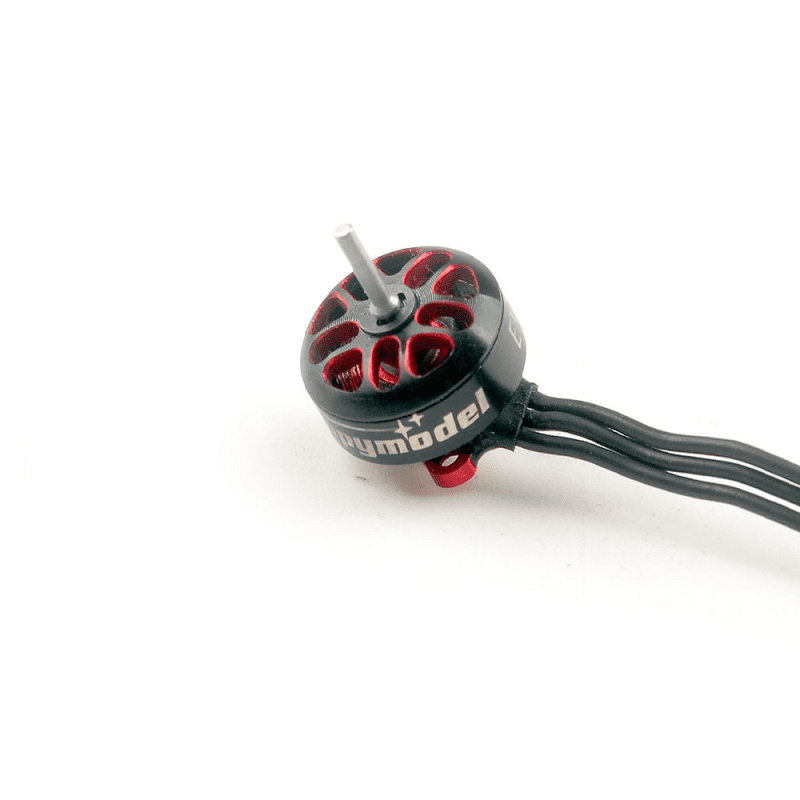

HappyModel EX0802 KV25000 Brushless Motor (CW) - Image 2
SKU: DRFC-3002
📋 GST Invoice Available

HappyModel EX0802 KV25000 Brushless Motor (CW)

₹789.00 (Inclusive of all taxes)
Out of Stock

The HappyModel EX0802 KV25000 is a lightweight 0802 brushless motor designed for high-performance 1S and 2S micro FPV drones. Its one-piece design and double E-clip ensure reliable operation for racing and freestyle builds.

Features

  • Ultra-lightweight 1.7g construction for agile micro drone performance.
  • High 25000KV rating optimized for 1S and 2S LiPo battery configurations.
  • One-piece design with double E-clip for enhanced bell retention and durability.
  • Features JST1.25mm connectors for simplified wiring and installation.
  • Excellent dynamic balance for smooth, vibration-free flight.

Out of stock

Description

The HappyModel EX0802 KV25000 brushless motor delivers high thrust-to-weight performance for micro FPV racing drones. Its 9N12P magnetic configuration and precision-balanced rotor provide efficient power delivery and responsive throttle control.

Engineered with a robust one-piece stator and a double E-clip securing the motor bell, this design prevents separation during high-G maneuvers, ensuring long-term reliability. The motor is compatible with popular 31mm and 40mm micro propellers, making it a core component for high-speed Whoops and toothpick-style builds.

Key Features

  • Ultra-lightweight 0802 frame weighing only 1.7 grams.
  • High-speed 25000KV windings for 1S and 2S LiPo voltage ranges.
  • Reinforced one-piece stator construction for improved structural integrity.
  • Double E-clip bell retention system prevents catastrophic failure.
  • Precision dynamic balancing minimizes vibration for cleaner video feed.
  • JST1.25mm plug-and-play terminals for quick solder-free installation.
  • 9N12P (9 stator slots, 12 magnet poles) configuration for smooth torque.
  • 1.0mm shaft diameter compatible with standard micro drone propellers.

Applications

  • High-performance 1S and 2S micro FPV racing drones (e.g., 65mm-75mm Whoops).
  • Ultra-lightweight toothpick-style freestyle and cinewhoop builds.
  • Custom micro drone projects requiring maximum thrust in a sub-2g motor package.
  • Compatible with 31mm Gemfan and 40mm 4-blade micro propellers.

Technical Specifications

Motor TypeBrushless Motor
ModelEX0802
KV Rating25000 KV
Configuration9N12P
Compatible Voltage1-2S LiPo
Shaft Diameter1.0mm
Weight (per motor)1.7g
Terminal TypeJST1.25mm

Frequently Asked Questions

What is the compatible voltage range for the EX0802 25000KV motor?

The EX0802 25000KV motor is designed for 1S and 2S LiPo battery configurations. Its high KV rating makes it particularly effective on 1S setups for extreme RPM, while it can also handle 2S for increased power output in lightweight micro builds.

What propellers are compatible with this 0802 motor?

This motor is compatible with common micro drone propellers, specifically 31mm and 40mm diameters, such as the Gemfan 31mm props and various 40mm 4-blade designs. The 1.0mm shaft diameter is the standard for this motor class.

How does the double E-clip design improve motor durability?

The double E-clip acts as a secondary retention mechanism for the motor bell. It prevents the bell from separating from the stator shaft during high-stress maneuvers or crashes, a common failure point in micro motors, thereby significantly enhancing overall reliability.

Package Includes

  • 1 x HappyModel EX0802 KV25000 Brushless Motor (CW)

Additional Information

Weight 0.15 kg
Dimensions 12 × 8 × 2 cm
