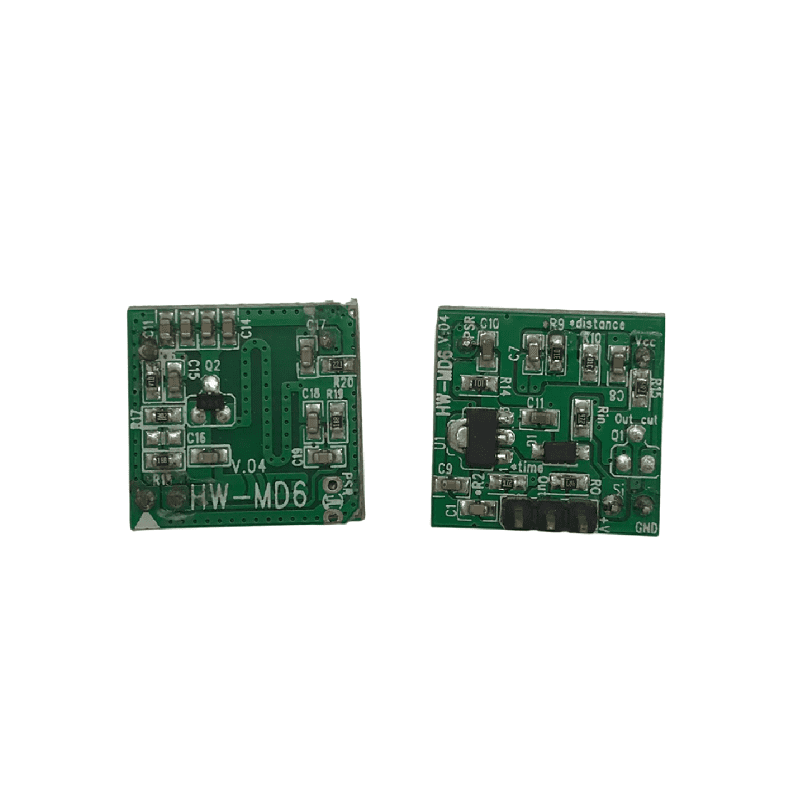

HaiWang HW-MD6 Microwave Radar Motion Sensor Module, 10m Range
The HaiWang HW-MD6 is a compact microwave radar motion sensor module designed for reliable human presence detection in security, lighting, and automation systems. It operates on a wide 3.7-24V DC range, making it compatible with 12V battery packs and industrial power supplies, and provides a direct 3V/0V digital output for easy integration with microcontrollers and logic circuits.
Features
- Microwave Doppler Radar Sensor with 0.5m to 20m Adjustable Detection Range.
- Wide Operating Voltage: 3.7V to 24V DC, ideal for 12V battery and industrial applications.
- Ultra-Low Power Consumption: ≤7mA static, ≤8mA dynamic for energy-efficient continuous operation.
- Configurable Output Delay: Adjustable from 1.5 to 2.5 seconds (default ~2-3s).
- Compact Double-Plate Composite Structure with a 2.5GHz to 3.2GHz operating frequency.
Out of stock
The HW-MD6 utilizes microwave Doppler radar technology to detect motion by sensing changes in the reflected frequency of its 2.5-3.2GHz transmitted signal. This principle allows it to penetrate non-metallic materials like plastic, glass, and thin walls, making it suitable for concealed installations where PIR sensors may fail. The module outputs a clean 3V high-level signal upon detection, reverting to 0V after the user-adjustable delay period.
Engineered for stability, its double-plate composite structure houses a streamlined circuit that minimizes noise and false triggers. The wide voltage input and low current draw make it an optimal choice for battery-powered IoT devices, smart lighting controls, and security systems requiring 24/7 monitoring without significant power drain.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 7 × 2 cm |
