HaiWang HW-HB100 Microwave Radar Sensor Module, 10-30m Range, 10.525GHz, 6-24V DC
The HaiWang HW-HB100 is a 10.525GHz microwave Doppler radar motion sensor module, offering a 10 to 30-meter adjustable detection range with 360° coverage. Operating on a 6-24V DC supply, it provides a digital control level output (H/L) for seamless integration into security systems, smart lighting, and industrial automation projects.
Features
- 10.525GHz Doppler radar with 10-30m adjustable detection range.
- 360° motion sensing with no blind spots, penetrates non-metallic enclosures.
- Low static power consumption (<35mA) operates from 6-24V DC.
- Repeatable trigger with adjustable delay time (2 to 120 seconds).
- Digital output (High/Low level) for direct microcontroller interface.
Out of stock

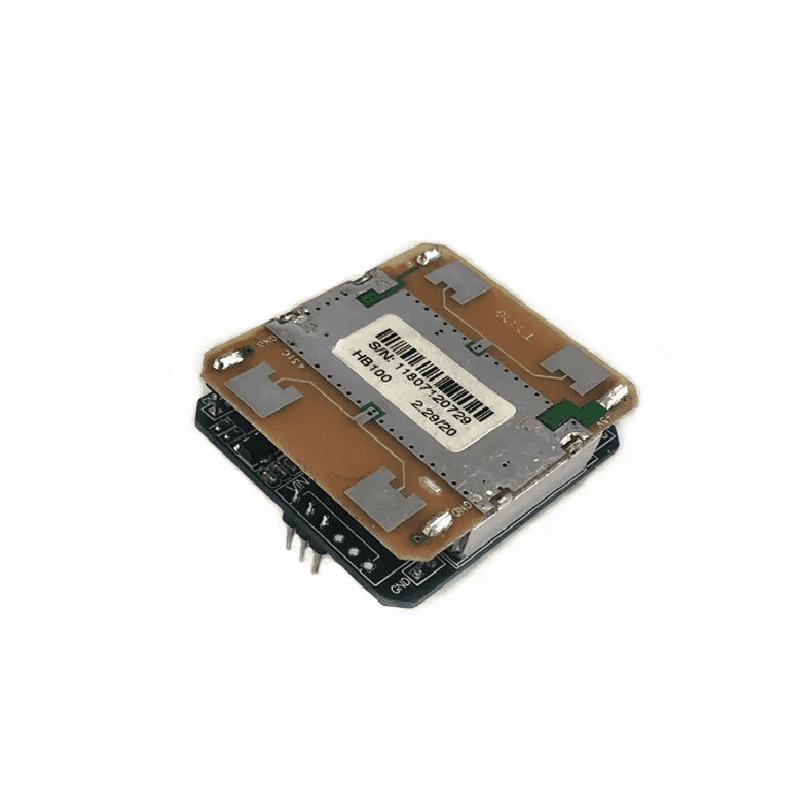

The HW-HB100 module utilizes a dual-plate superimposed planar antenna to transmit and receive high-frequency electromagnetic waves. Based on the Doppler effect principle, it detects minute changes in the reflected wave caused by target movement, triggering its internal microprocessor to output a useful control signal. This sensing method ensures reliable operation unaffected by ambient temperature and humidity variations.
Designed for robust performance, the module can penetrate non-metallic housings (with a typical signal attenuation of 10-20%) and is ideal for environments where optical or passive infrared (PIR) sensors may fail. Its compact form factor and configurable trigger logic make it suitable for integration into a wide range of electronic control systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 11 × 8 × 2 cm |
