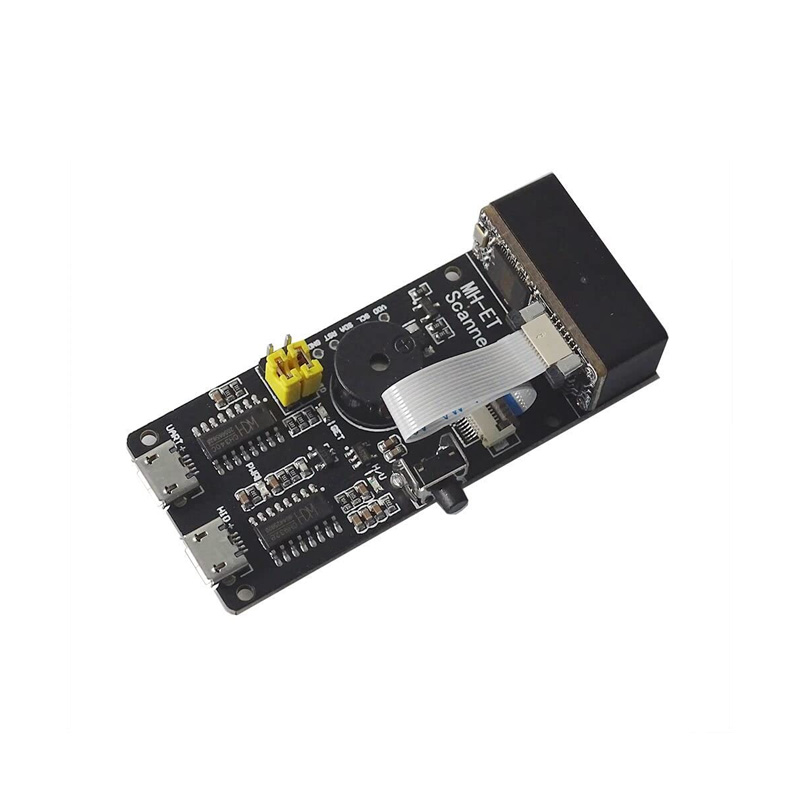

Scanner V3.0 Barcode Scan Recognition Module - USB/UART Interface

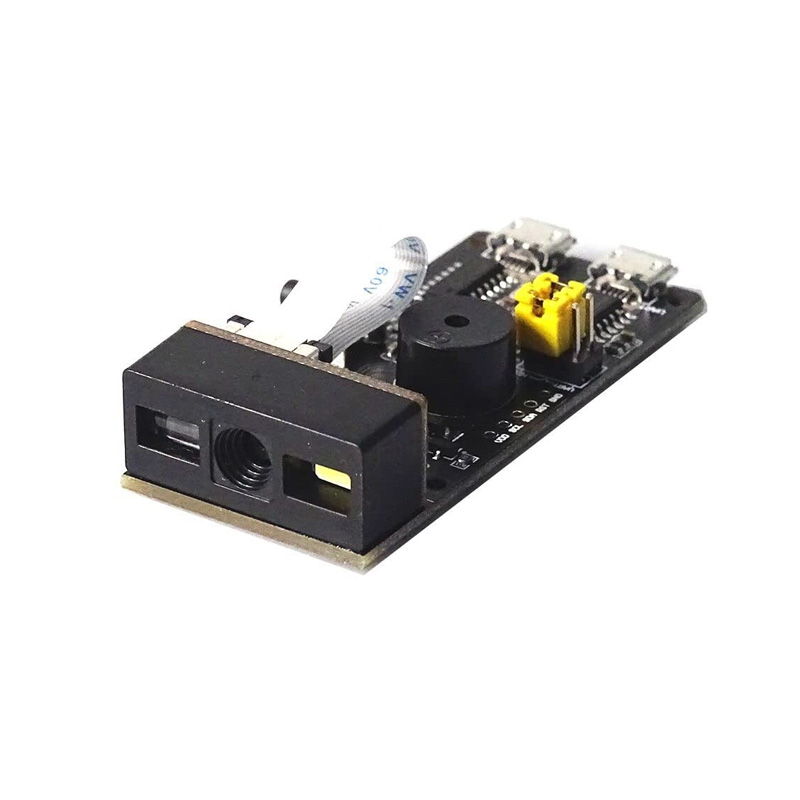

Scanner V3.0 Barcode Scan Recognition Module - USB/UART Interface - Image 2

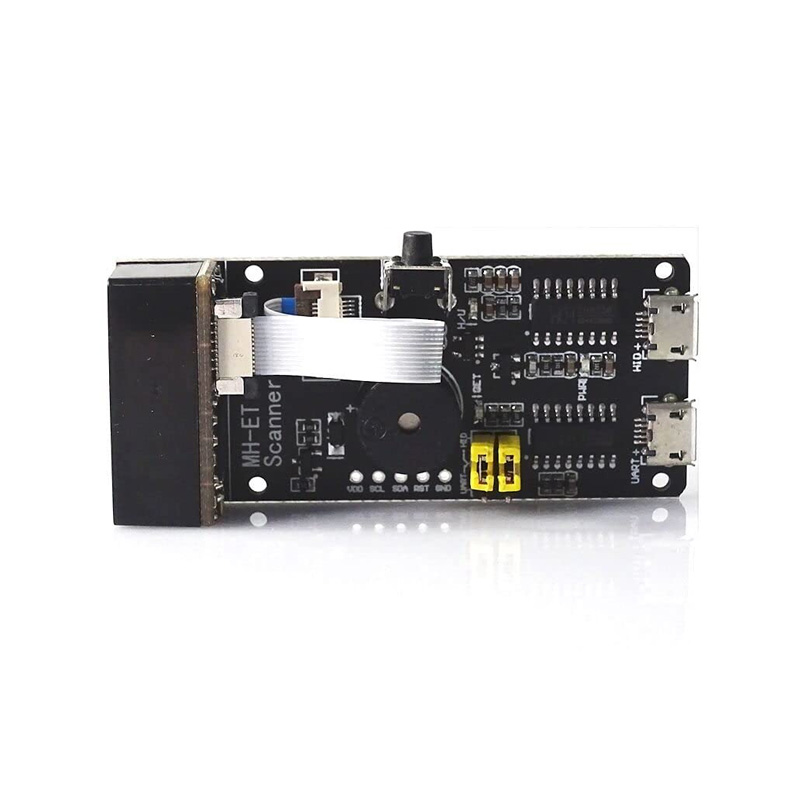

Scanner V3.0 Barcode Scan Recognition Module - USB/UART Interface - Image 3
SKU: SENS-0015
📋 GST Invoice Available

Scanner V3.0 Barcode Scan Recognition Module - USB/UART Interface

₹2,179.00 (Inclusive of all taxes)
Out of Stock

The Scanner V3.0 is a compact 2D CMOS imager module for fast and accurate 1D/2D barcode recognition, featuring USB and UART interfaces for direct PC connection or integration into embedded systems and automation devices like Arduino, Raspberry Pi, and industrial PLCs.

Features

  • High-performance 2D CMOS imager for 1D barcodes and 2D QR codes.
  • Dual USB and UART (TTL) serial communication interfaces for flexible system integration.
  • Onboard auxiliary LED illumination for reliable scanning in low-light conditions.
  • Fast and stable recognition with instant cold and warm start-up capability.
  • Compact form factor powered by a 5V DC supply for embedded and automation applications.

Out of stock

Description

The Scanner V3.0 barcode recognition module utilizes a professional-grade 2D CMOS image sensor and dedicated processing chip to deliver stable, high-speed scanning performance across various surfaces, including paper, screens, and plastic. Its robust design ensures accurate code recognition in complex lighting and environmental conditions typical of industrial and commercial settings.

Featuring both USB (for direct PC connectivity) and UART TTL serial interfaces, the module offers seamless integration into a wide range of systems, from simple microcontroller projects using Arduino or ESP32 to sophisticated automation and point-of-sale (POS) terminals. The module is configured via scan-to-configure barcodes, allowing for flexible parameter adjustments without dedicated software.

Key Features

  • Professional 2D CMOS image sensor for high-accuracy scanning.
  • Dual-interface design with USB (HID/keyboard emulation) and UART TTL serial output.
  • Integrated auxiliary white LED for consistent illumination in low-light environments.
  • Fast recognition engine with instant start-up, supporting both cold and warm scanning modes.
  • Scan-to-configure functionality for easy setup of parameters like output format and interface mode.
  • Compact and durable construction optimized for embedded integration.
  • Wide compatibility with common barcode types printed on various materials.

Applications

  • Embedded barcode scanning in kiosks, vending machines, and point-of-sale (POS) systems.
  • Inventory management and asset tracking in warehouse automation.
  • Integration into microcontroller-based projects (Arduino, Raspberry Pi, ESP32) for product identification.
  • Industrial automation for part verification and process control on production lines.
  • Document and ticket validation systems requiring QR code scanning.

Technical Specifications

ModelScanner V3.0
Barcode Type Supported1D and 2D (QR Code)
Scan Engine Type2D CMOS Imager
Communication InterfaceUSB, UART (TTL)
Operating Voltage5V DC
DPM (Direct Part Marking) SupportNo
Primary ApplicationEmbedded Systems, Automation

Frequently Asked Questions

What types of barcodes does the Scanner V3.0 module support?

The Scanner V3.0 module supports both 1D linear barcodes (like Code 39, Code 128, EAN-13) and 2D Matrix codes, including QR codes. It uses a 2D CMOS imager to capture and decode these codes from various surfaces such as paper, screens, and plastic.

How do I connect and communicate with the Scanner V3.0 module?

The module offers two primary interfaces. The USB port allows for direct plug-and-play connection to a computer, typically emulating a keyboard (HID) for instant data entry. The UART (TTL serial) interface, with TX, RX, GND, and 5V pins, is used for integration with microcontrollers like Arduino, Raspberry Pi, or industrial PLCs, requiring simple serial communication protocols.

What is the operating voltage, and how is the module powered?

The Scanner V3.0 module requires a stable 5V DC power supply. When using the USB interface, power is supplied directly from the USB host (e.g., a computer or USB charger). For UART operation, you must provide 5V to the module's VCC pin from your microcontroller or an external regulated 5V source, ensuring common ground connection.

Does the module work in low-light conditions?

Yes, the module features an onboard auxiliary white LED that automatically illuminates the scanning area in low-light environments. This ensures consistent and reliable code recognition regardless of ambient lighting conditions, making it suitable for indoor applications.

Can I configure the module's scanning parameters?

Yes, the Scanner V3.0 supports scan-to-configure functionality. You can print specific configuration barcodes (provided in the user manual) and scan them with the module to change parameters such as the output interface mode (USB vs. UART), barcode symbologies, or data formatting without needing dedicated PC software.

Package Includes

  • 1 x Scanner V3.0 Barcode Recognition Module

Related Products

Out of Stock

Keyestudio Capacitive Touch Sensor Module

134.00
Learn More
Out of Stock

9-in-1 Multi-function Expansion Board for Arduino UNO

409.00
Learn More
Out of Stock

LGT8F328P LQFP32 MiniEVB 5V (Pro Mini Compatible)

116.00
Learn More
Out of Stock

Grow GM810-L Barcode Scanner Module - CMOS Sensor, UART/USB Interface, 7-50cm Range

2,419.00
Learn More
Out of Stock

UNO R3 CH340G ATmega328P Development Board + Cable

262.35
Learn More
Out of Stock

Waveshare Barcode Scanner Module, 1D/2D Codes Reader - USB/UART Interface

3,479.00
Learn More
Out of Stock

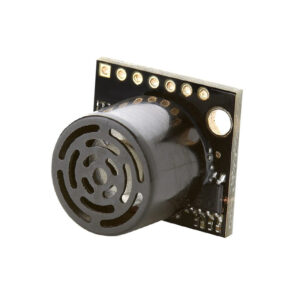

MaxBotix MB1043 Ultrasonic Sensor - USB Interface, 5m Range, 1mm Resolution

2,659.00
Learn More
Out of Stock

Grow GM73 Barcode Scanner - USB & UART Interface

3,379.00
Learn More
Out of Stock

Reyax RYRR20I 4 Port USB/UART Interface UHF RFID Reader Mini PCIe Card

1,769.00
Learn More
Out of Stock

HFSecurity HF4000 Optical Fingerprint Scanner - 500 DPI, USB Type-A/Micro USB

5,329.00
Learn More
Out of Stock

Grow GM861XS Barcode Scanner Module - UART/USB Interface, CMOS Sensor

1,339.00
Learn More
Out of Stock

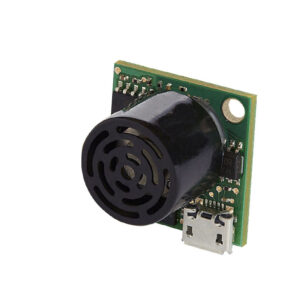

MaxBotix MB1414 USB-ProxSonar-EZ1 Ultrasonic Sensor - USB Interface
