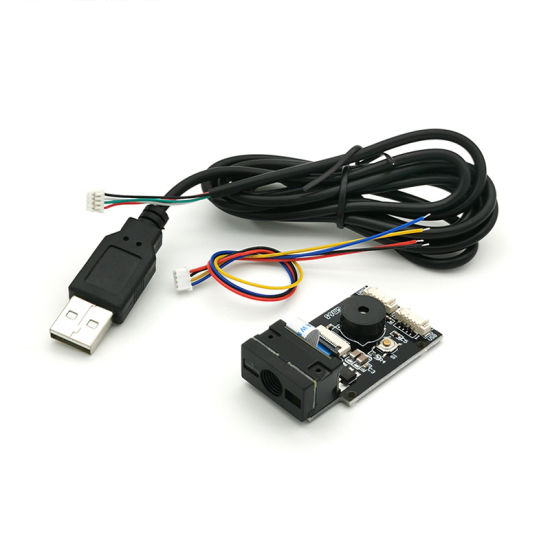

Grow GM65 1D/2D Barcode Scanner Module - USB & UART Interface

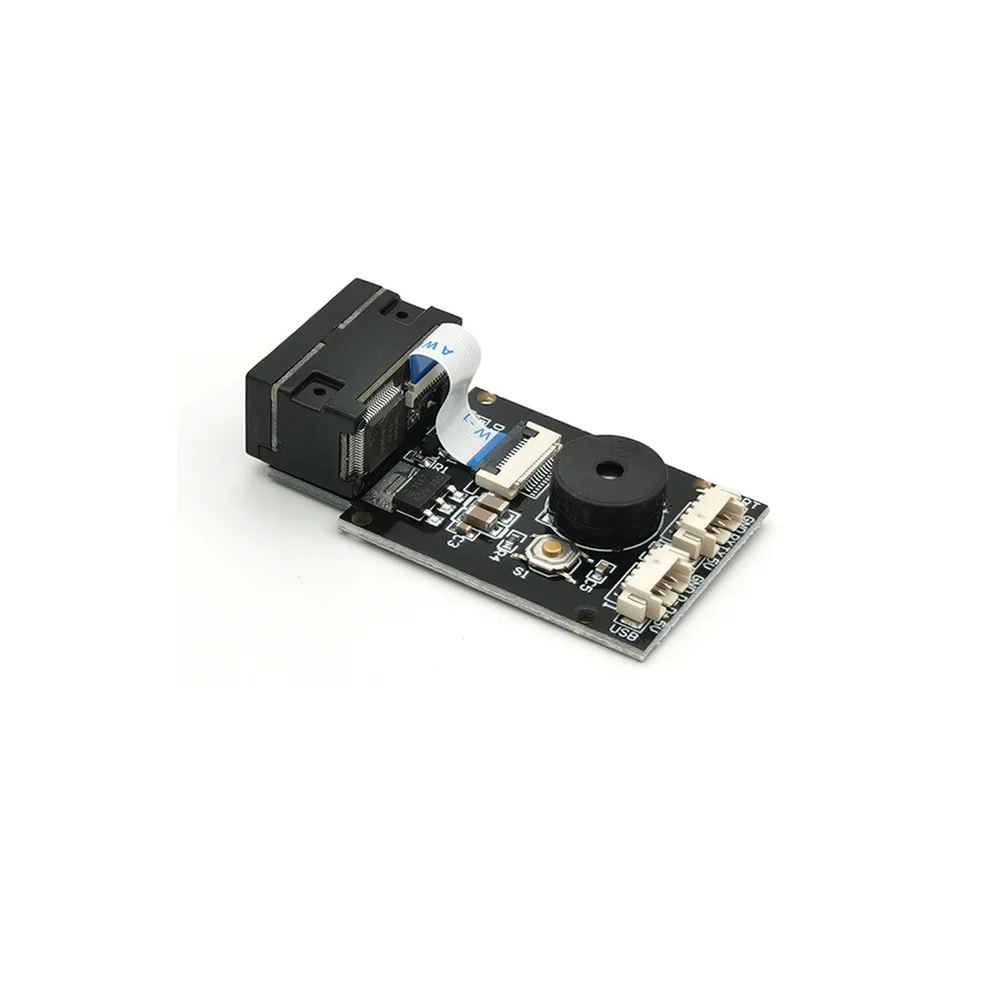

Grow GM65 1D/2D Barcode Scanner Module - USB & UART Interface - Image 2

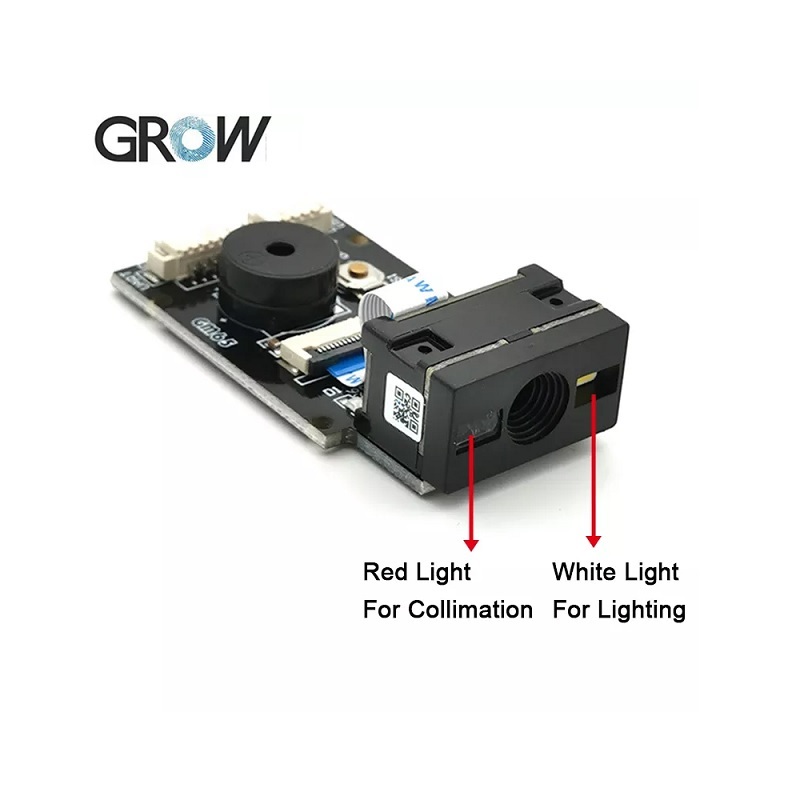

Grow GM65 1D/2D Barcode Scanner Module - USB & UART Interface - Image 3
Grow GM65 1D/2D Barcode Scanner Module - USB & UART Interface - Image 4

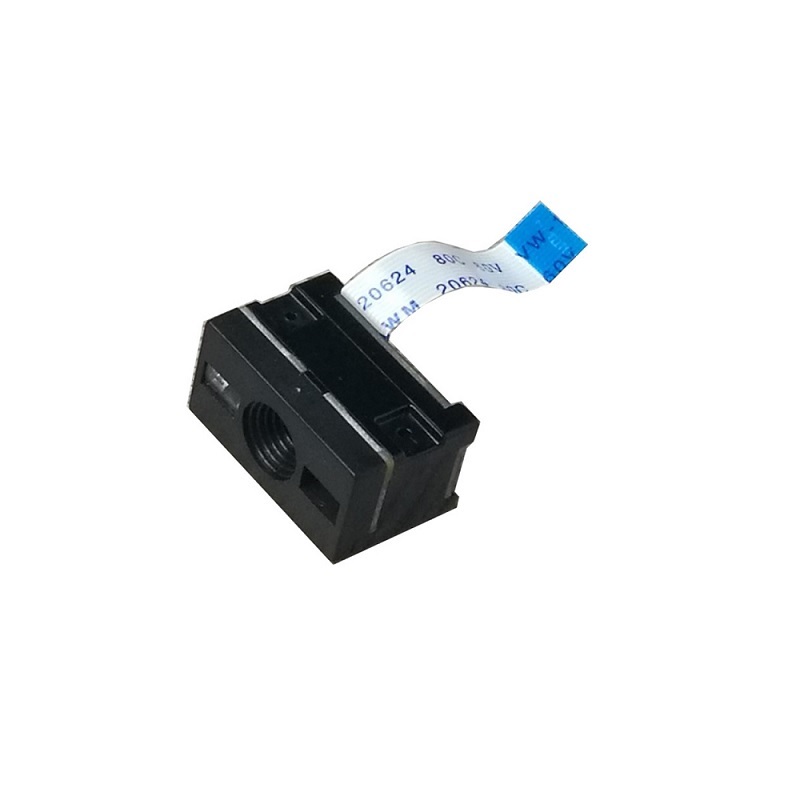

Grow GM65 1D/2D Barcode Scanner Module - USB & UART Interface - Image 5
SKU: SENS-2570
📋 GST Invoice Available

Grow GM65 1D/2D Barcode Scanner Module - USB & UART Interface

₹3,057.00 (Inclusive of all taxes)
Out of Stock

The Grow GM65 is a high-resolution 1D/2D barcode scanner module designed for seamless integration into automated systems, POS terminals, and kiosks. It operates on a 5V DC supply and communicates via USB or UART interfaces, making it compatible with a wide range of embedded platforms and industrial PCs.

Features

  • High-resolution 2D image scanning engine with 0.10mm (4mil) precision for reading dense and damaged codes.
  • Dual-interface support (USB 2.0 and UART) for flexible integration with computers, PLCs, and microcontroller systems like Arduino and Raspberry Pi.
  • Omnidirectional scanning capability for 1D barcodes and 2D Matrix codes (QR, Data Matrix) on labels, paper, and electronic displays.
  • Over 180 configurable parameters including scan modes (trigger/continuous), data prefixes/suffixes, and macro string replacement.
  • Robust operating range from -20°C to 55°C with integrated audible buzzer for scan confirmation.

Out of stock

Description

The GM65 module employs a high-performance 2D CMOS image sensor and advanced decoding algorithms to reliably capture and process both linear and Matrix barcodes. Its omnidirectional scanning feature eliminates the need for precise alignment, speeding up workflow in high-volume environments. The module supports a wide range of symbologies including Code 128, EAN-13, UPC, and QR codes.

Engineered for industrial durability, the GM65 operates across an extended temperature range and features configurable communication protocols. Its programmable data output allows for integration with legacy systems by adding custom terminators and data formatting. The compact form factor and low power consumption (120mA @ 5V) make it suitable for portable and space-constrained embedded applications.

Key Features

  • High-performance 2D imaging scanner with 0.10mm (4mil) minimum bar code resolution.
  • Dual communication interfaces: Standard USB HID keyboard emulation and configurable TTL UART (3.3V/5V logic).
  • Extensive programmability with over 180 settings for scan mode, output format, and data manipulation.
  • Integrated audible buzzer and LED provide immediate visual and audible feedback on scan success.
  • Wide operating temperature range (-20°C to 55°C) ensures reliability in challenging environments.
  • Macro command support enables complex string replacement and data formatting directly within the scanner.
  • Compact and lightweight design (46.8 x 27.5mm, 13g) for easy integration into handheld devices or fixed-mount systems.

Applications

  • Point-of-Sale (POS) systems and retail kiosks for fast product identification and inventory management.
  • Logistics and parcel sorting automation for tracking and routing package labels.
  • Library and document management systems for asset tracking and data entry automation.
  • Factory floor production control and quality assurance for scanning work-in-progress labels.
  • Mobile computing and handheld terminals for field service and asset verification.

Technical Specifications

Model NumberGM65
Scanning Type2D Image Sensor (1D/2D)
Minimum Resolution0.10 mm (4 mil)
Reading Distance2.5 cm to 25 cm (Typical)
Decoding Symbologies1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128; 2D: QR Code, Data Matrix, etc.
InterfaceUSB 2.0 (HID), TTL UART
Supply Voltage5 V DC
Operating Current120 mA (Typical)
Operating Temperature-20°C to +55°C

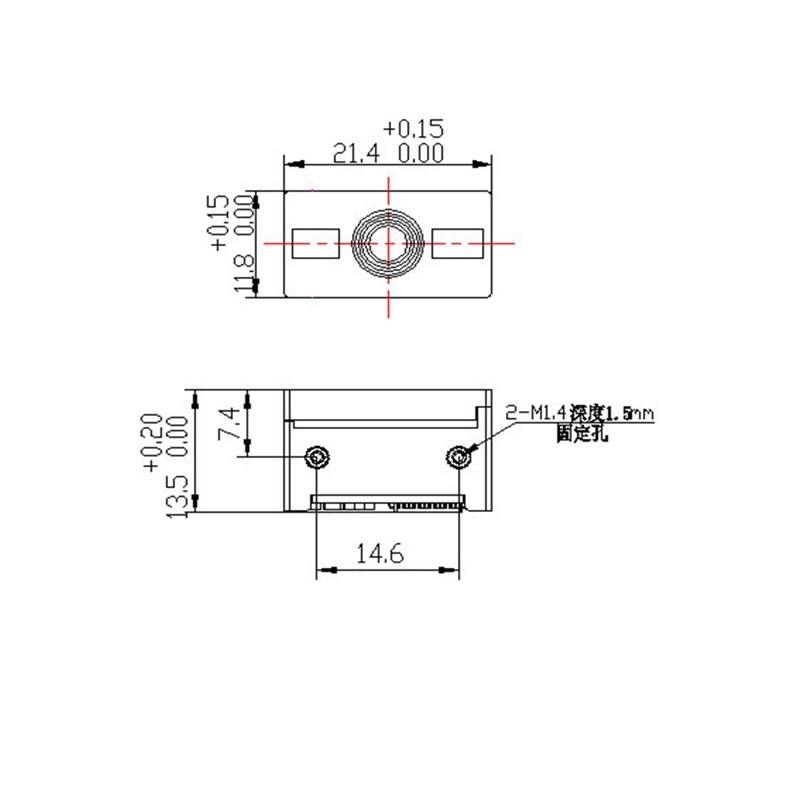

Dimensions (L x W)46.8 mm x 27.5 mm
Weight13 g

Frequently Asked Questions

What are the power requirements for the GM65 module?

The GM65 requires a stable 5V DC power supply and draws approximately 120mA during operation. It can be powered directly from a USB port or via a regulated 5V source on your embedded board, such as an Arduino or Raspberry Pi. Ensure your power supply can provide clean, stable voltage to avoid scanning errors.

How do I communicate with the scanner using a microcontroller?

You can interface with the GM65 using its TTL UART (serial) interface. Connect the module's TX, RX, GND, and 5V pins to your microcontroller's corresponding serial pins. The baud rate and data format are configurable via programming commands. For plug-and-play use with a PC, the USB interface emulates a standard HID keyboard, sending scanned data as keystrokes.

Can this module read barcodes from a mobile phone or computer screen?

Yes, the GM65's 2D imaging sensor is capable of reading barcodes and QR codes displayed on electronic screens, including mobile phones, tablets, and monitors. Its omnidirectional scanning and advanced decoding algorithms allow it to capture codes even with screen glare or suboptimal lighting, making it suitable for ticketing, loyalty programs, and contactless data transfer applications.

What is the effective scanning distance range?

The GM65 has a typical reading distance range from 2.5 cm to 25 cm, depending on the barcode size and density. For best results with standard 1D barcodes, a distance of 5-15 cm is recommended. The minimum bar width it can resolve is 0.10mm (4 mil), allowing it to read high-density codes when held closer to the target.

How do I configure the scanner's settings, like the scan mode or data output format?

The GM65 is programmed by scanning special configuration barcodes provided in the user manual. These barcodes allow you to set over 180 parameters, including scan mode (manual trigger or auto-sense), interface selection (USB/UART), output data formatting (adding prefixes/suffixes), and enabling the audible buzzer. No separate software is required for basic configuration.

Package Includes

  • 1 x Grow GM65 1D/2D Barcode Scanner Module

Additional Information

Weight 0.013 kg
Dimensions 4.68 × 2.75 cm
