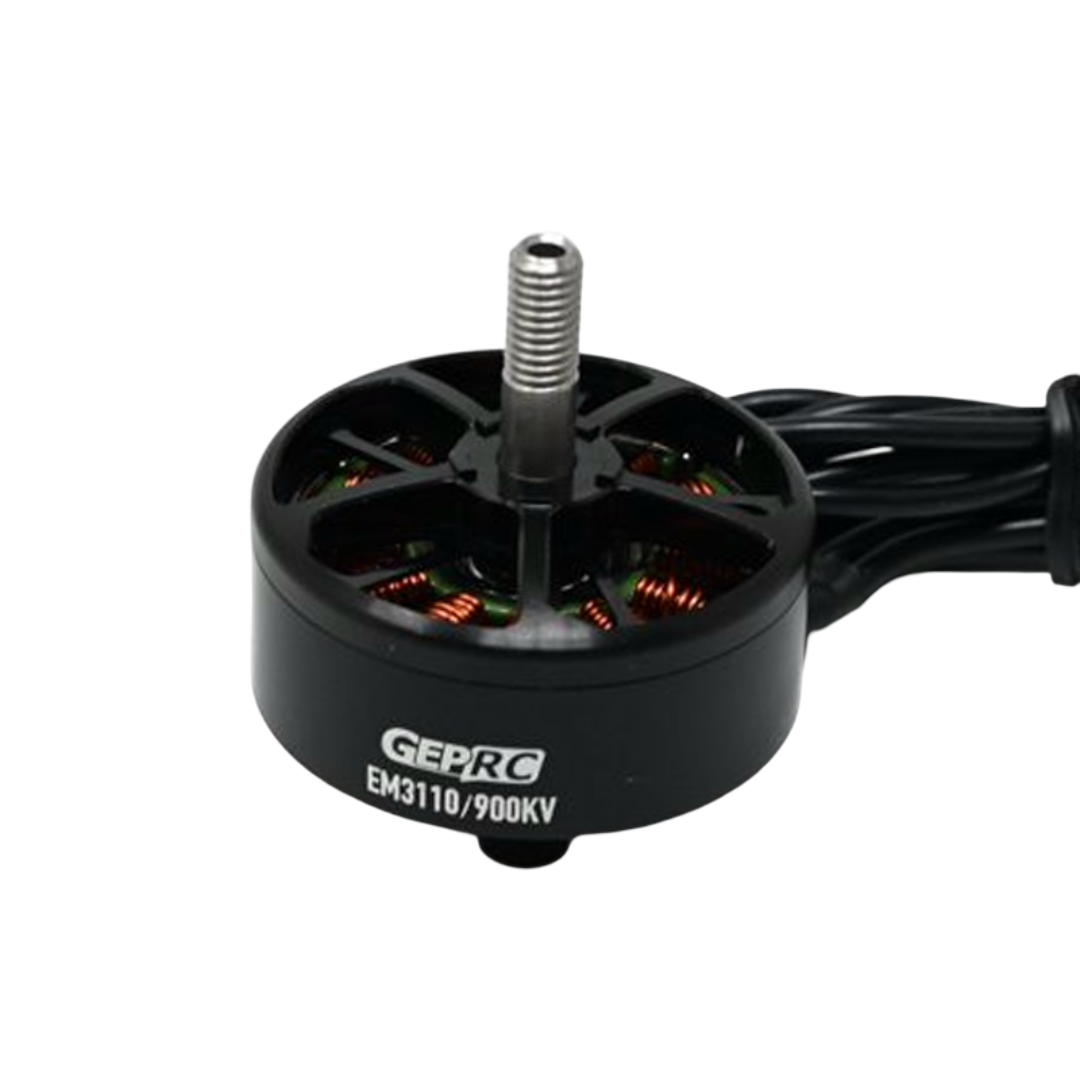

GEPRC EM3110 900KV Brushless Motor

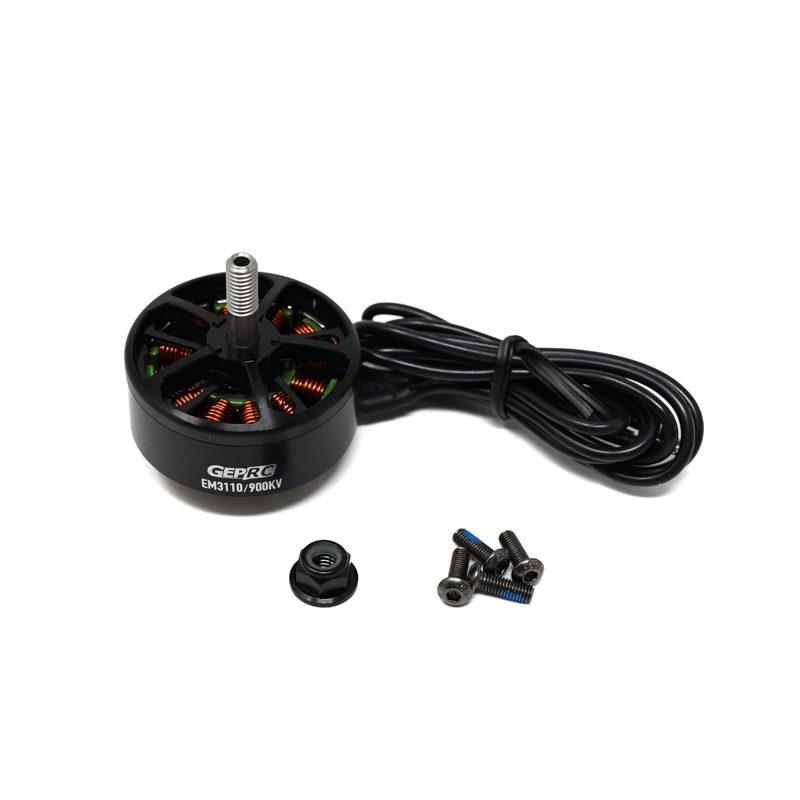

GEPRC EM3110 900KV Brushless Motor - Image 2
SKU: DRFC-2994
📋 GST Invoice Available

GEPRC EM3110 900KV Brushless Motor

₹2,769.00 (Inclusive of all taxes)
Out of Stock

The GEPRC EM3110 is a 900KV brushless motor engineered for 6S-powered long-range FPV drones, optimized for 8–10 inch propellers to deliver high-torque, efficient propulsion with a durable M5 steel shaft and premium NSK/NMB bearings.

Features

  • 900KV rating optimized for 6S LiPo batteries and high-torque applications.
  • M5 steel shaft and N52H high-torque magnetic circuit for durability and power.
  • Premium NSK/NMB bearings ensure smooth, low-friction operation.
  • Compact 33mm diameter design with a total weight of 87.5 grams.
  • Rated for up to 1480W maximum power, compatible with 60A–80A ESCs.

Out of stock

Description

The GEPRC EM3110 900KV brushless motor is engineered for demanding long-range FPV and aerial photography platforms. Its high-torque magnetic circuit, utilizing N52H-grade magnets, provides exceptional power density and efficiency when paired with large 8 to 10-inch propellers on 6S voltage systems. This design ensures stable, responsive thrust for extended flight times and reliable performance under load.

Constructed with a robust M5 steel shaft and supported by high-precision NSK/NMB bearings, the motor offers outstanding mechanical durability and smooth rotation with minimal resistance. The compact stator package delivers a peak power output of 1480W, making it a suitable propulsion solution for medium-lift UAVs requiring a balance of power, weight, and thermal management.

Key Features

  • High-Torque N52H Magnet Circuit: Delivers powerful, efficient thrust for large propellers on 6S systems.
  • Premium Bearing Construction: Utilizes NSK/NMB bearings for smooth, reliable, and long-lasting operation.
  • Durable M5 Steel Shaft: Provides superior strength and resistance to bending forces.
  • Optimized Thermal Design: Stator and winding configuration manages heat effectively during sustained high-power operation.
  • Lightweight Aluminum Housing: Balances structural rigidity with minimal weight penalty.
  • Precision Dynamic Balancing: Reduces vibration for smoother video footage and extended component life.

Applications

  • 6S-powered long-range FPV drones and mapping platforms using 8–10 inch propellers.
  • Medium-lift aerial photography and cinematography quadcopters requiring efficient, high-torque propulsion.
  • Heavy-duty freestyle or endurance builds where reliable power and thermal performance are critical.

Technical Specifications

Model NumberEM3110
Motor KV900 KV
Recommended Voltage6S LiPo (22.2V)
Shaft Diameter5 mm
Max Continuous Power1480 W
Motor Diameter33 mm
Motor Weight87.5 g
Recommended ESC60A–80A
Recommended Prop Size8–10 inch

Frequently Asked Questions

What size propellers are recommended for the GEPRC EM3110 900KV motor?

The EM3110 900KV motor is optimized for large, high-pitch propellers in the 8 to 10-inch range. This KV rating on 6S voltage provides the ideal torque and RPM for efficient long-range flight and heavy-lift applications. Always use a propeller thrust test stand to verify amp draw stays within your ESC's limits.

What is the maximum voltage and ESC rating for this motor?

This motor is designed for 6S LiPo battery systems (nominal 22.2V). It is rated for a maximum continuous power of 1480W. For safe operation, pair it with a high-quality 60A to 80A Electronic Speed Controller (ESC) that supports 6S input and features robust active braking and timing control.

What type of bearings does the EM3110 motor use, and are they user-replaceable?

The GEPRC EM3110 utilizes premium NSK/NMB brand bearings for smooth, low-friction rotation and extended service life. While the bearings are high-quality, they are press-fit into the motor bell and housing; replacement requires specialized tools and technical skill for proper disassembly and reassembly without damaging the stator or magnets.

Package Includes

  • 1 x GEPRC EM3110 900KV Motor
  • 4 x M3×9 Round Head Screws
  • 1 x M5 Anti-slip Nut

Additional Information

Weight 0.7 kg
Dimensions 6 × 7 × 5 cm
