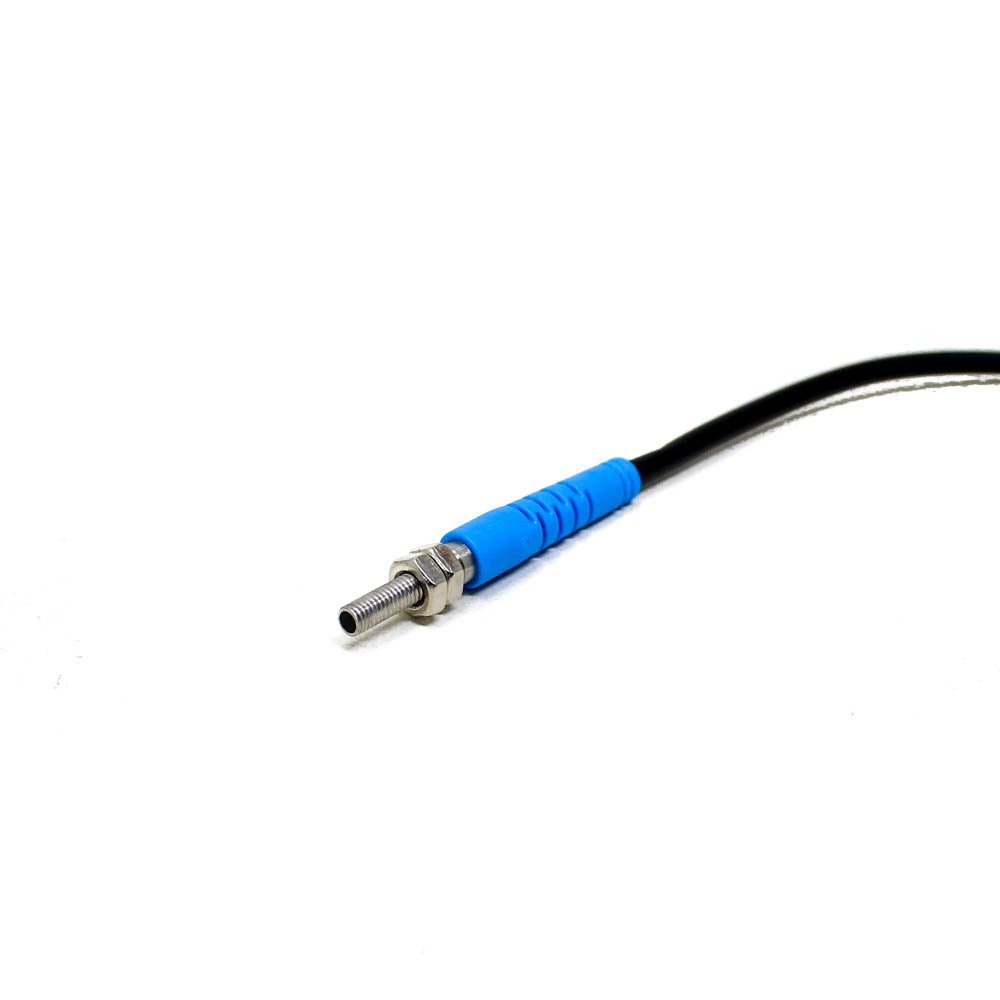

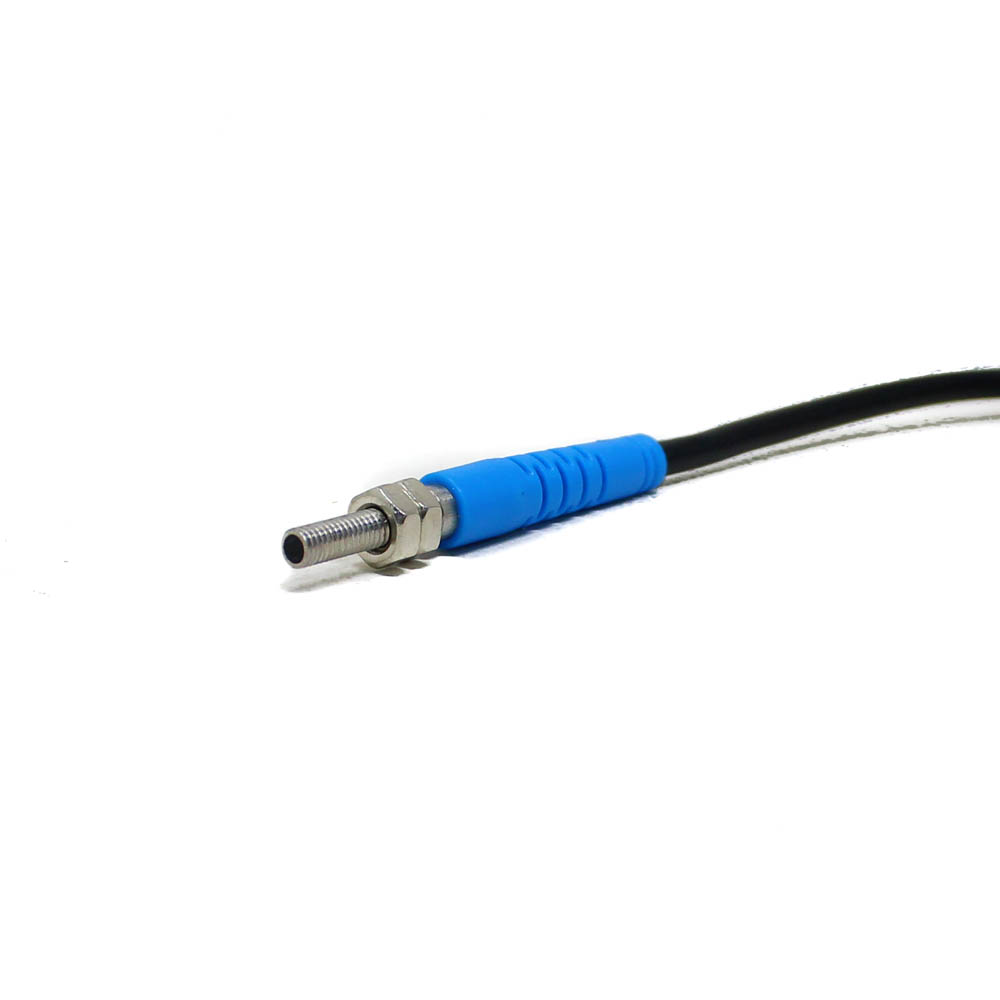

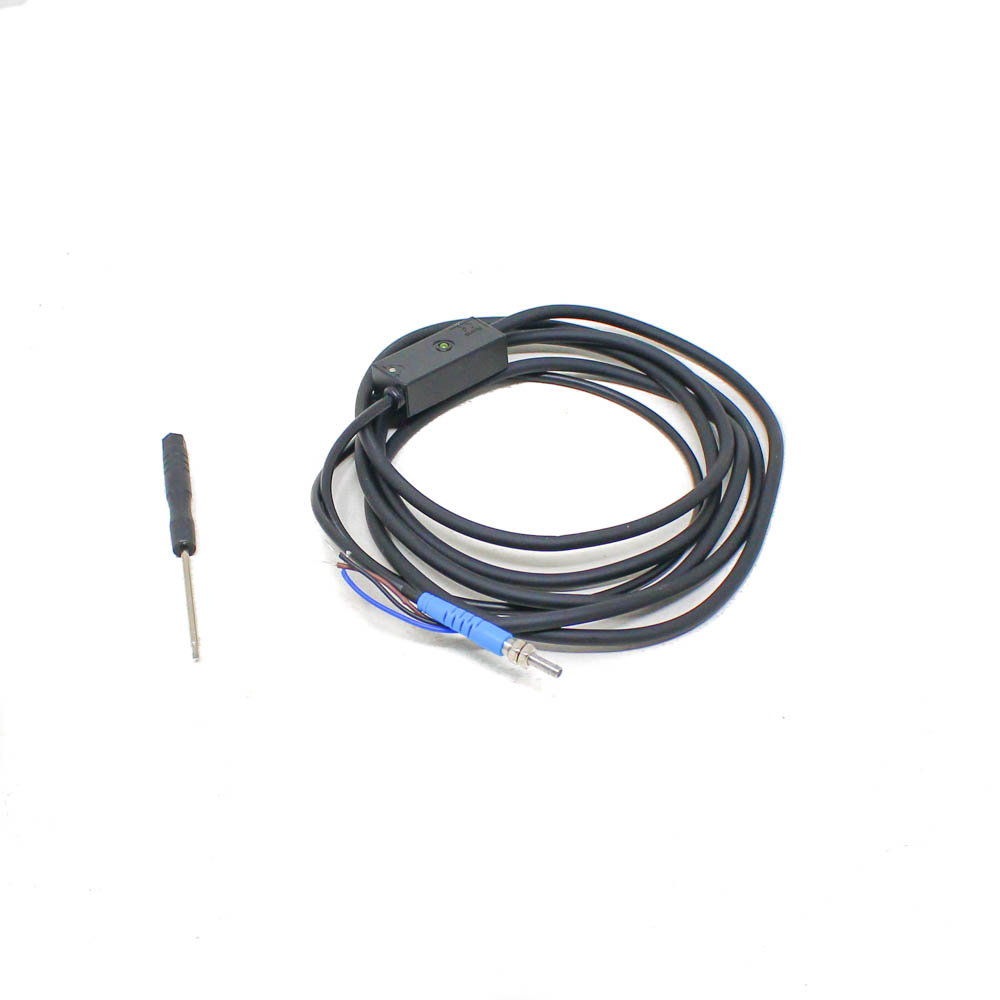

Generic M4 FTD-04NO 50mm Laser Micro Diffuse Photoelectric Switch - Stainless Steel Housing
The Generic M4 FTD-04NO is a compact, diffuse-reflective photoelectric switch with a 50mm sensing range, designed for precise object detection in automated systems. It operates on a 10-30V DC supply and provides a robust NPN open-collector output, making it compatible with PLCs, industrial controllers, and 24V automation environments.
Features
- Compact M4 stainless steel threaded housing for robust industrial mounting.
- 50mm diffuse-reflective sensing range for reliable object presence detection.
- Wide 10-30V DC operating voltage range for flexible system integration.
- NPN open-collector output (150mA max) for direct PLC and controller interfacing.
- 120Hz response frequency suitable for high-speed counting and sorting applications.
Out of stock
The M4 FTD-04NO photoelectric switch operates on the diffuse reflection principle, where its integrated laser emitter and receiver detect objects within a 50mm range by sensing the reflected light. This self-contained sensing method eliminates the need for a separate reflector, simplifying installation in confined spaces.
Built with a stainless steel M4 threaded body, the sensor is designed for durability in industrial environments. Its internal circuitry features synchronous loop gating for enhanced noise immunity and stable operation across a 0°C to 50°C temperature range, ensuring reliable performance in factory automation and packaging machinery.
Additional Information
| Weight | 0.052 kg |
|---|---|
| Dimensions | 16 × 17 × 1 cm |
