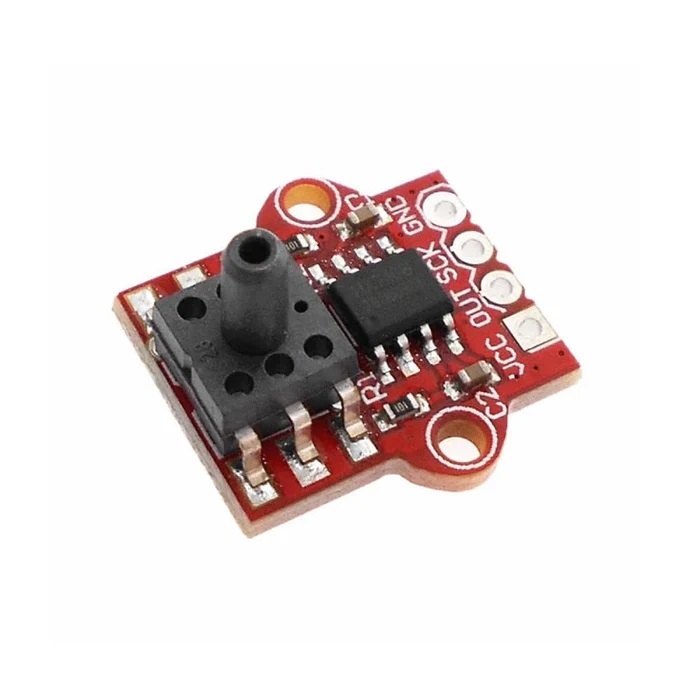

Generic HX710B Air Pressure Sensor Module (0-40 kPa) with Straight Header - Analog Voltage Output
The HX710B Air Pressure Sensor Module is a MEMS piezoresistive transducer delivering a 0-40 kPa gauge pressure measurement via analog voltage output, compatible with 3.3V and 5V microcontroller systems like Arduino, Raspberry Pi, and ESP32 for barometric and environmental monitoring.
Features
- MEMS piezoresistive sensor for 0-40 kPa gauge pressure measurement.
- Analog voltage output for direct ADC interfacing with microcontrollers.
- Wide 2.6V to 5.5V DC supply range for 3.3V/5V logic compatibility.
- Integrated temperature compensation for enhanced measurement stability.
- Pre-soldered straight pin header for rapid breadboard or PCB integration.
Out of stock
The HX710B module integrates a precision MEMS piezoresistive sensing element, which translates applied air pressure into a proportional analog voltage signal. This design provides a direct and straightforward interface for analog-to-digital converters (ADCs) on common development platforms.
Engineered with built-in temperature compensation, the module maintains accuracy across varying environmental conditions, making it suitable for applications where thermal stability is a concern. Its robust construction and simple analog output make it a versatile choice for prototyping and integrated systems requiring reliable pressure data.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 8 × 2 cm |
