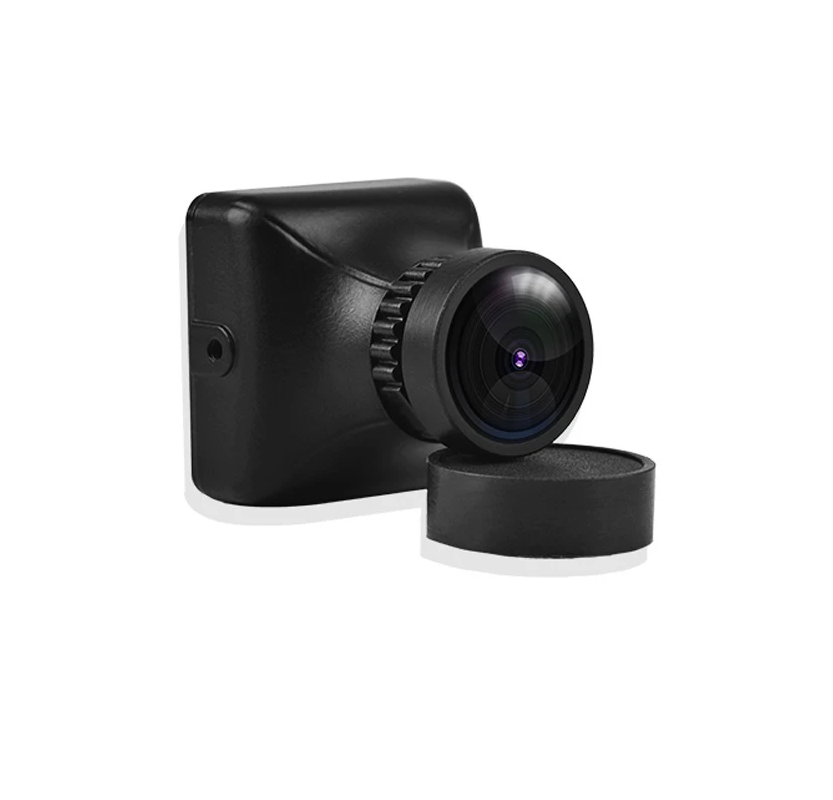

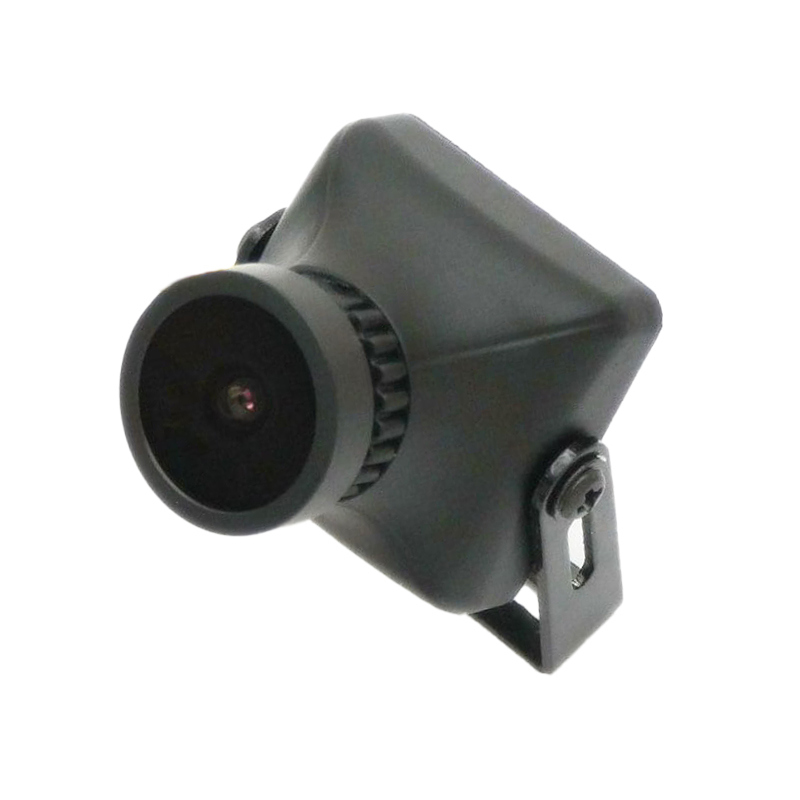

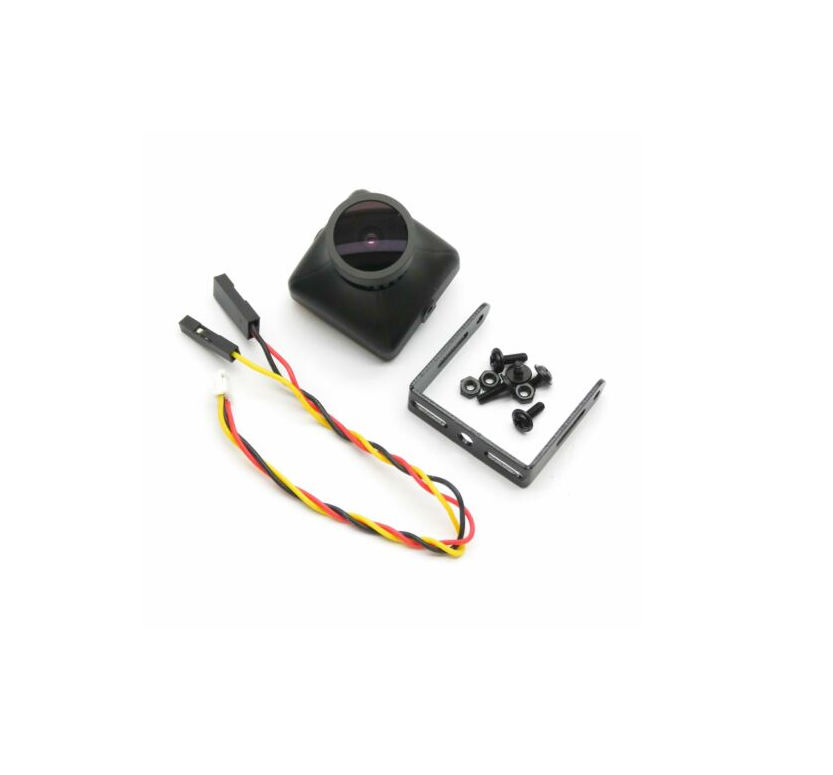

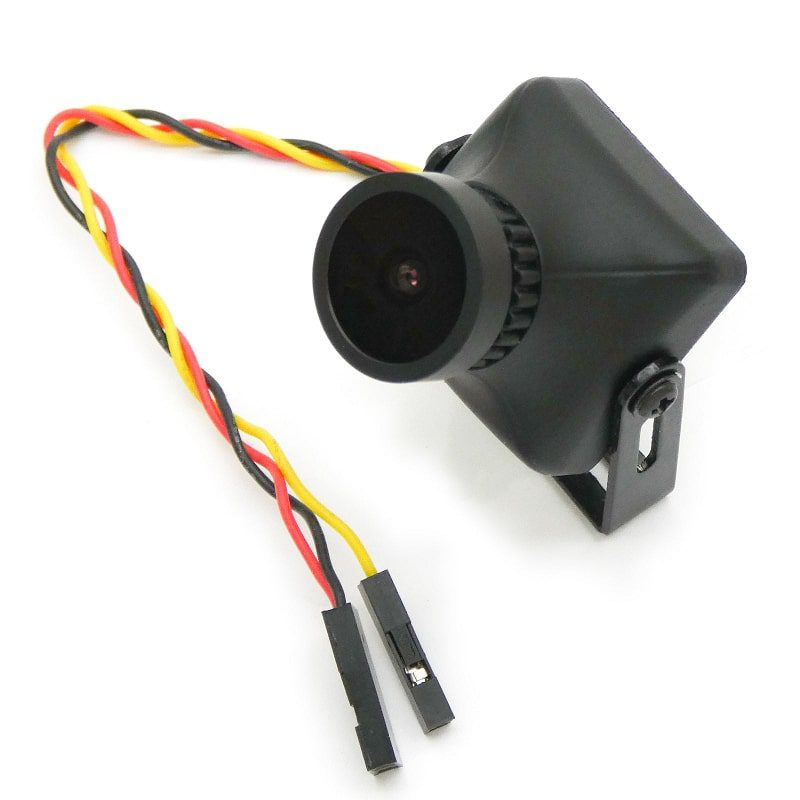

Generic High Definition 1200TVL CMOS FPV Camera with 2.1mm Lens
This 1200TVL CMOS FPV camera features a 2.1mm lens and a 1/3″ SUPER HAD II sensor, delivering high-resolution video for drone and multi-copter FPV systems with a wide 5-12V DC input voltage range.
Features
- 1200TVL resolution with 1/3″ CMOS SUPER HAD II image sensor for clear video feed.
- Wide 5-12V DC operating voltage compatible with most FPV power systems.
- Low illumination capability down to 0.01Lux for flying in varied lighting conditions.
- PAL signal system with features including AGC, BLC, and DNR for stable image quality.
- Compact dimensions of 26 x 26 x 30 mm and lightweight at 15g for easy integration.
Out of stock
Designed for FPV drone applications, this camera utilizes a 1/3″ CMOS SUPER HAD II sensor to provide a 1200TVL horizontal resolution, ensuring a detailed and sharp video feed for piloting and recording. Its electronic shutter supports speeds from 1/50 to 1/100,000 second, accommodating a wide range of lighting environments from bright daylight to low-light scenarios.
The camera’s robust electrical design supports a broad input voltage of 5 to 12V DC, making it compatible with standard LiPo battery configurations and regulated BEC outputs. Integrated image processing features such as Auto Gain Control (AGC), Backlight Compensation (BLC), and 2D Digital Noise Reduction (DNR) work to maintain a consistent and clear picture under challenging flight conditions.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 2.6 × 2.6 × 3 cm |
