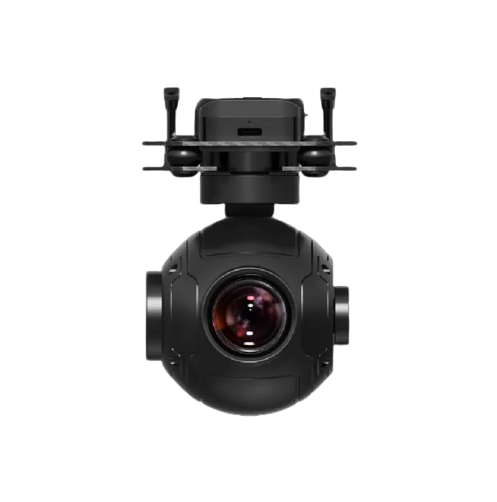

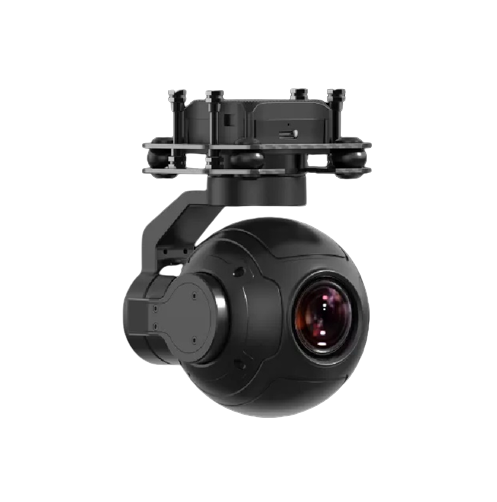

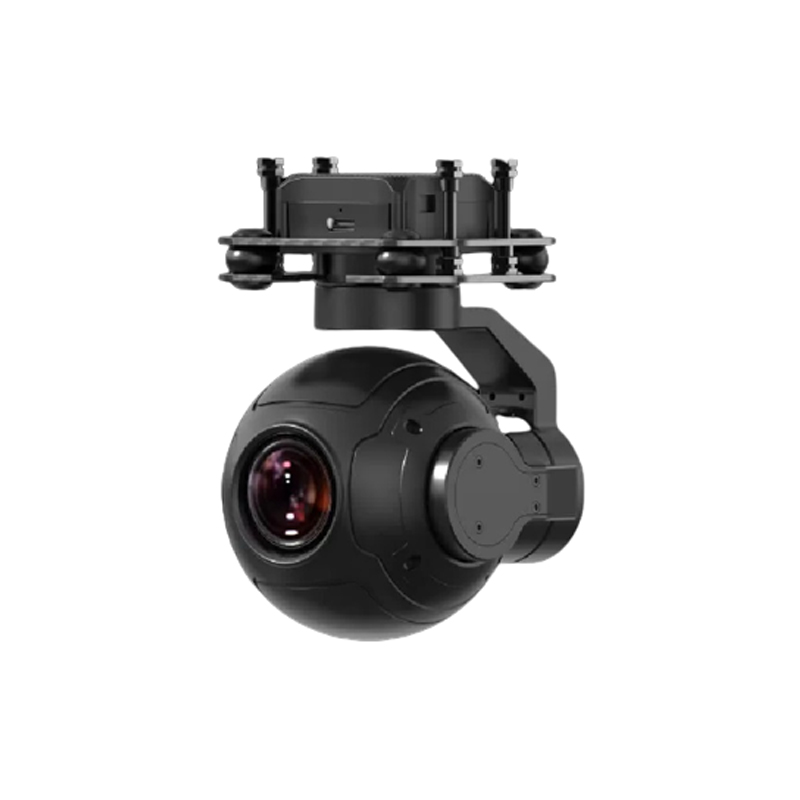

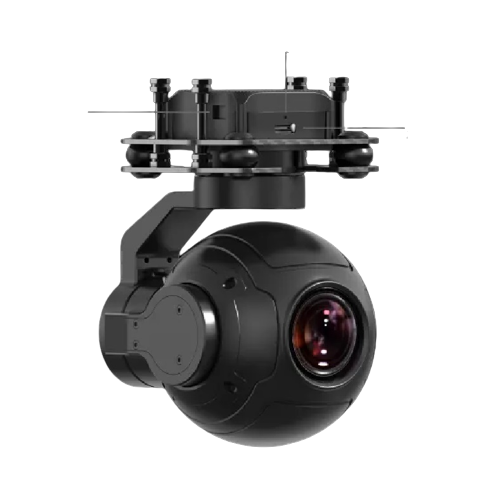

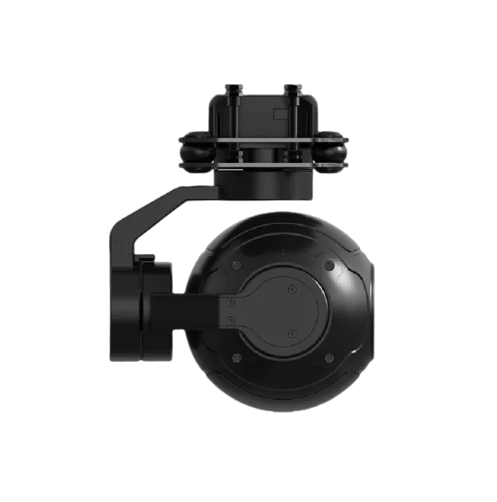

SIYI ZR10 Hybrid Zoom Gimbal Camera HDR Starlight Vision

₹65,429.00 (Inclusive of all taxes)
Out of Stock

The SIYI ZR10 is a versatile 3-axis stabilized hybrid zoom gimbal camera, featuring HDR and Starlight Night Vision for exceptional low-light performance across a wide 11-25.2V operating range. Engineered with high-precision FOC control, it delivers crisp 2K video capture, making it ideal for diverse drone imaging applications.

Features

  • Integrated 3-axis Gimbal Stabilizer with High-Precision FOC Control.
  • Features 10X Optical Zoom (30X Hybrid) for detailed long-range imaging.
  • Equipped with HDR and Starlight Night Vision for superior low-light performance.
  • Supports 2K (2560*1440) 30fps video recording with Ethernet output.
  • Wide operating voltage range of 11-25.2V, compatible with 3S-6S LiPo batteries.

Out of stock

Description

The SIYI ZR10 Hybrid Zoom Gimbal Camera integrates a high-quality imaging sensor with a precise 3-axis stabilization system, delivering exceptional aerial photography and videography capabilities. Its advanced hybrid zoom technology allows pilots to capture distant subjects with clarity, combining 10X optical and 30X hybrid magnification for detailed inspections or cinematic shots. Designed for ease of use and portability, this unit is an invaluable tool for both hobbyists and professional drone operators.

Equipped with HDR and Starlight Night Vision, the ZR10 excels in challenging lighting conditions, providing clear and vibrant imagery even in low-light environments. The F1.8 aperture further enhances its performance, ensuring bright and sharp visuals. With robust construction and an operating voltage range of 11V to 25.2V, it seamlessly integrates with a variety of UAV platforms, offering reliable performance for diverse aerial missions.

Key Features

  • Ethernet video output provides reliable and high-quality digital video transmission.
  • Multiple control signal inputs supported: S.Bus, PPM, UART, and UDP for broad compatibility.
  • Ensures exceptional stability with an angular vibration range of just ±0.01°.
  • Offers controllable pitch angles from -90° to +25° and yaw angles from -45° to +45°.
  • Features a 10X optical zoom lens, extending to 30X hybrid zoom for versatile framing.
  • Utilizes a 1/2.7-inch, 4 MP effective resolution image sensor with F1.8 to F2.5 aperture.
  • Records 2K (2560*1440) resolution video at 30 frames per second with a 12 Mbps bitrate.
  • Supports MicroSD Class 10 cards up to 128GB (FAT32 format) for extensive storage.

Applications

  • FPV cinematic videography and aerial filmmaking.
  • Industrial inspection, surveillance, and monitoring.
  • Search and rescue (SAR) operations in challenging environments.
  • Long-range observation and aerial data collection.
  • Precision agricultural drone scouting and assessment.

Technical Specifications

ModelZR10
Working Voltage11 to 25.2 V
Power Consumption3 W
Working Temperature-10 to 50 ℃
Gimbal Type3-axis Stabilizer with FOC Control
Angular Vibration Range±0.01°
Controllable Pitch Angle-90° to +25°
Mechanical Pitch Angle-135° to +45°
Controllable Yaw Angle-45° to +45°
Mechanical Yaw Angle-90° to +90°
Zoom10X Optical (30X Hybrid)
Focal Length5.15±5% to 47.38±5% mm
Min Focus Distance200 mm
Image Sensor1/2.7”-inch, 4 MP
ApertureF1.8 to F2.5
Field of View (FOV)Diagonal 79.5°, Horizontal 71.5°
Video Resolution2K (2560*1440) @ 30 fps
Video Bitrate12 Mbps
File Storage FormatFAT32
MicroSD SupportClass 10, up to 128GB
Still Photo ModeSingle
Metering ModeEvaluative
Video OutputEthernet
Control Signal InputS.Bus, PPM, UART, UDP
Waterproof LevelIP4X
Dimensions (L x W x H)121 x 101 x 78 mm
Weight381 g

Frequently Asked Questions

What power requirements does the SIYI ZR10 gimbal camera have?

The ZR10 operates within a wide voltage range of 11 to 25.2 volts, making it compatible with 3S to 6S LiPo battery setups common in drones. Its typical power consumption is low at just 3 watts, ensuring efficient operation during extended flight missions. This flexibility supports various UAV power systems effectively.

How does the SIYI ZR10 ensure stable video capture during flight?

The ZR10 features a high-precision 3-axis gimbal stabilizer with FOC control, minimizing angular vibration to an impressive ±0.01°. This advanced stabilization system dynamically compensates for aircraft movements, providing exceptionally smooth and level footage, even in dynamic flight conditions. Pitch and yaw control are highly precise.

What video transmission and control protocols does the ZR10 support?

For video output, the ZR10 utilizes a reliable Ethernet interface, providing high-quality digital transmission. Control signal input is highly versatile, supporting S.Bus, PPM, UART, and UDP protocols. This broad compatibility allows for seamless integration with most modern flight controllers and ground station systems.

Can the SIYI ZR10 perform well in low-light conditions?

Yes, the ZR10 is equipped with HDR (High Dynamic Range) imaging and Starlight Night Vision capabilities, featuring an F1.8 aperture lens. These technologies collectively enable the camera to capture clear, detailed, and color-accurate video in extremely low-light environments, far surpassing standard camera performance.

What are the zoom capabilities and video resolution of this camera?

The SIYI ZR10 boasts a powerful 10X optical zoom lens, further enhanced by 30X hybrid zoom, allowing for significant magnification of distant subjects. It records high-definition video at 2K resolution (2560x1440) at 30 frames per second, ensuring clear and detailed footage for various aerial applications.

Package Includes

  • 1 x SIYI ZR10 Hybrid Zoom Gimbal Camera with HDR Starlight Night Vision 3-Axis Stabilizer

Additional Information

Dimensions 12.1 × 10.1 × 7.8 cm
