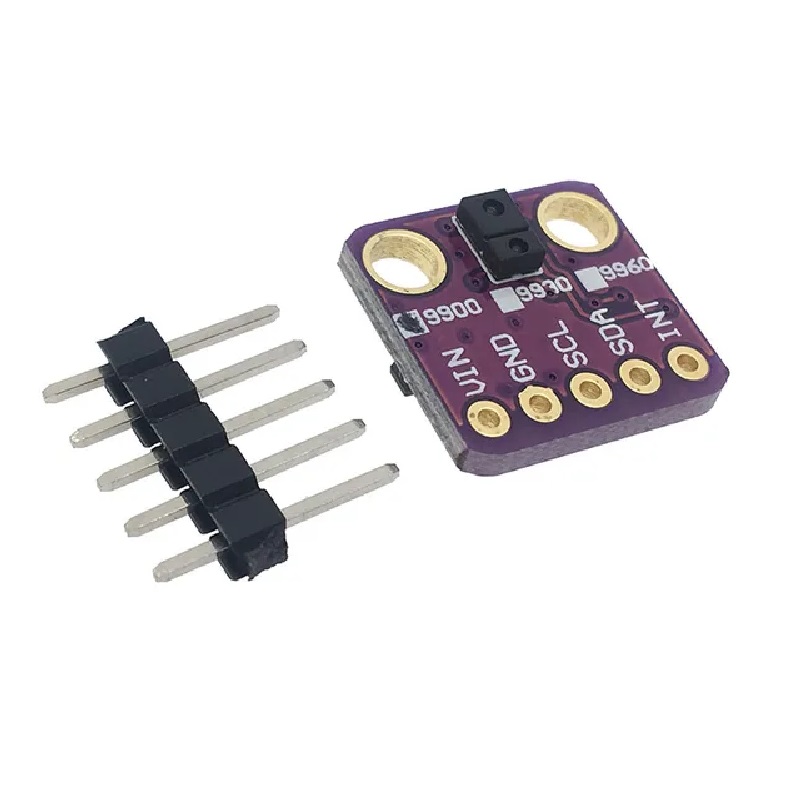

Generic GY-9960 APDS9960 RGB & Gesture Sensor Module - Unsoldered Components
The GY-9960 module integrates the APDS-9960 sensor for touchless gesture recognition, proximity sensing, and RGB color detection. It operates from a 3-5V supply, making it compatible with Arduino, Raspberry Pi, and other 3.3V/5V microcontroller platforms.
Features
- APDS-9960 sensor for integrated gesture, proximity, and color sensing.
- Touchless gesture recognition for motion direction control.
- RGB and ambient light sensing capabilities.
- Wide 3-5V operating voltage range for flexible system integration.
- Unsoldered header pins allow for custom connection configurations.
Out of stock
The GY-9960 module is built around the APDS-9960 digital proximity, RGB, and gesture sensor. It utilizes an integrated IR LED and a calibrated photodiode array to detect simple swipe gestures (up, down, left, right) without physical contact. The same optical system enables proximity detection and measures ambient light intensity with color (RGB) sensing.
The module communicates via the I2C interface, providing a straightforward digital connection to host controllers like Arduino, ESP32, or Raspberry Pi. The unsoldered header pins offer flexibility for direct soldering or using separate pin headers, catering to various prototyping and integration needs.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1.3 × 1.3 cm |
