Generic F7 MINI V1.0 Flight Controller + 40A 2-5S BLHeli_S 4-in-1 ESC Flytower
The Generic F7 MINI V1.0 Flytower integrates an STM32F722-based F7 flight controller with a 40A 2-5S BLHeli_S 4-in-1 ESC, providing a compact, high-performance control solution for FPV racing and freestyle drones.
Features

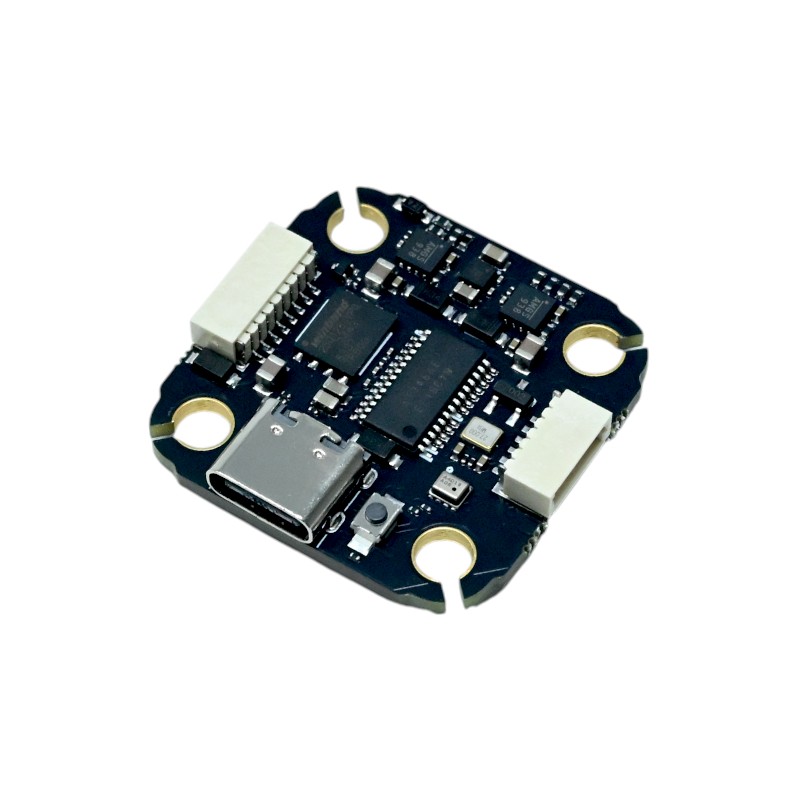

- Integrated F7 MINI V1.0 Flight Controller with ARM STM32F722R processor for high-speed processing.

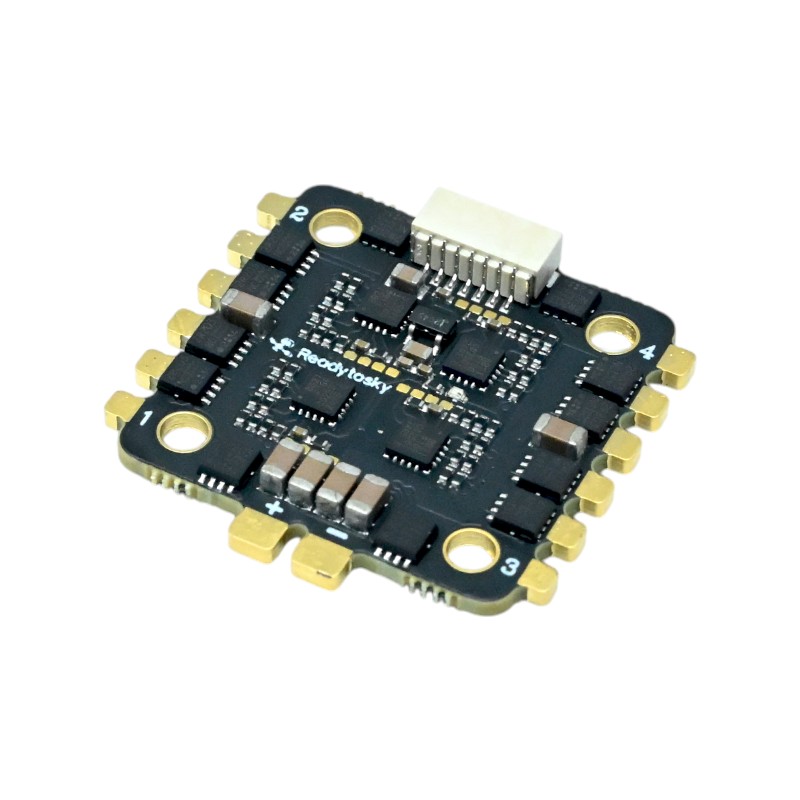

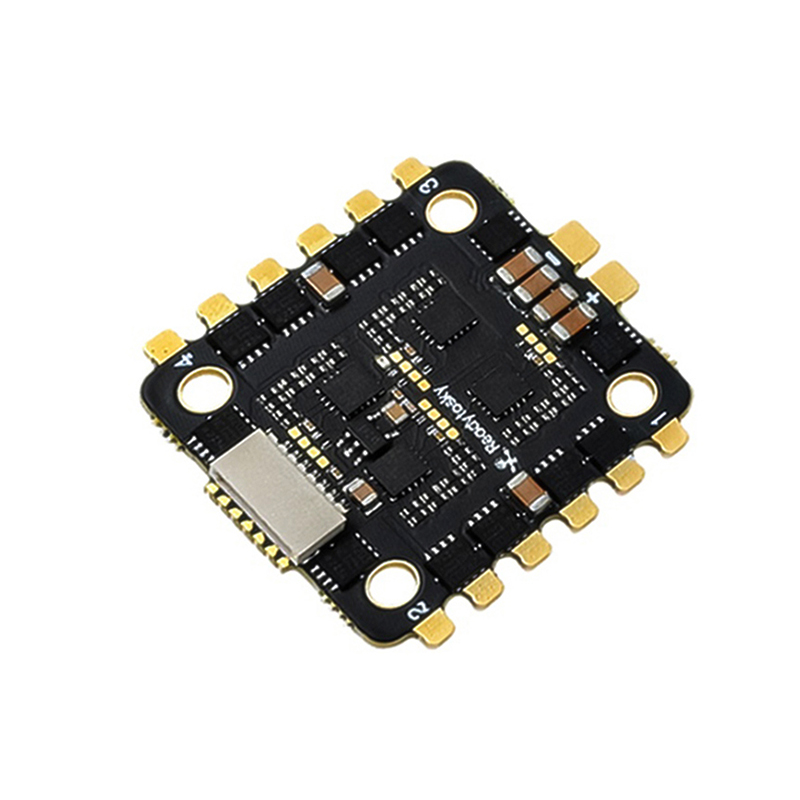

- 40A continuous current 4-in-1 ESC running BLHeli_S firmware, compatible with 2-5S LiPo batteries.
- Features BMP280 barometer for altitude hold functionality.

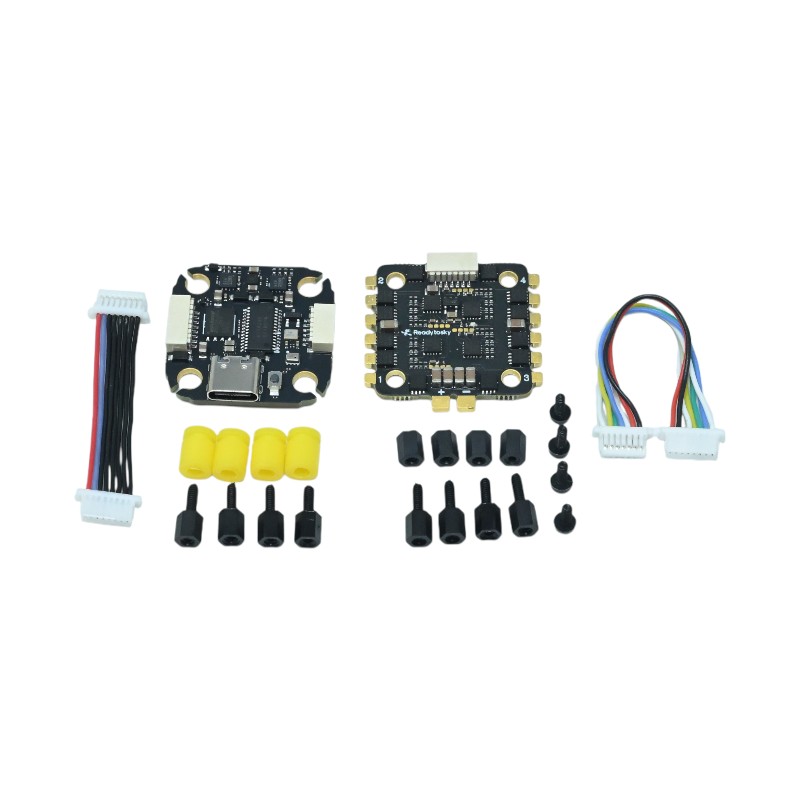

- Compact, lightweight flytower design simplifies wiring and reduces build weight.
- Direct plug-and-play compatibility between FC and ESC for efficient power and signal delivery.
Out of stock
The Generic F7 MINI V1.0 Flytower combines a modern flight controller and a robust electronic speed controller into a single, streamlined unit. The flight controller leverages the powerful STM32F722 microcontroller, enabling support for advanced flight firmware like Betaflight and ArduPilot with high gyro sampling rates. The integrated 4-in-1 ESC delivers 40A per channel, capable of handling high-performance motors on 2-5S LiPo power systems.
This all-in-one stack design minimizes wiring complexity and reduces overall weight, which is critical for competitive FPV builds. The inclusion of a BMP280 barometer provides reliable altitude data for flight modes requiring barometric pressure sensing. The compact form factor is engineered to fit into tight frame builds while maintaining full feature accessibility.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 13 × 8 × 2 cm |
