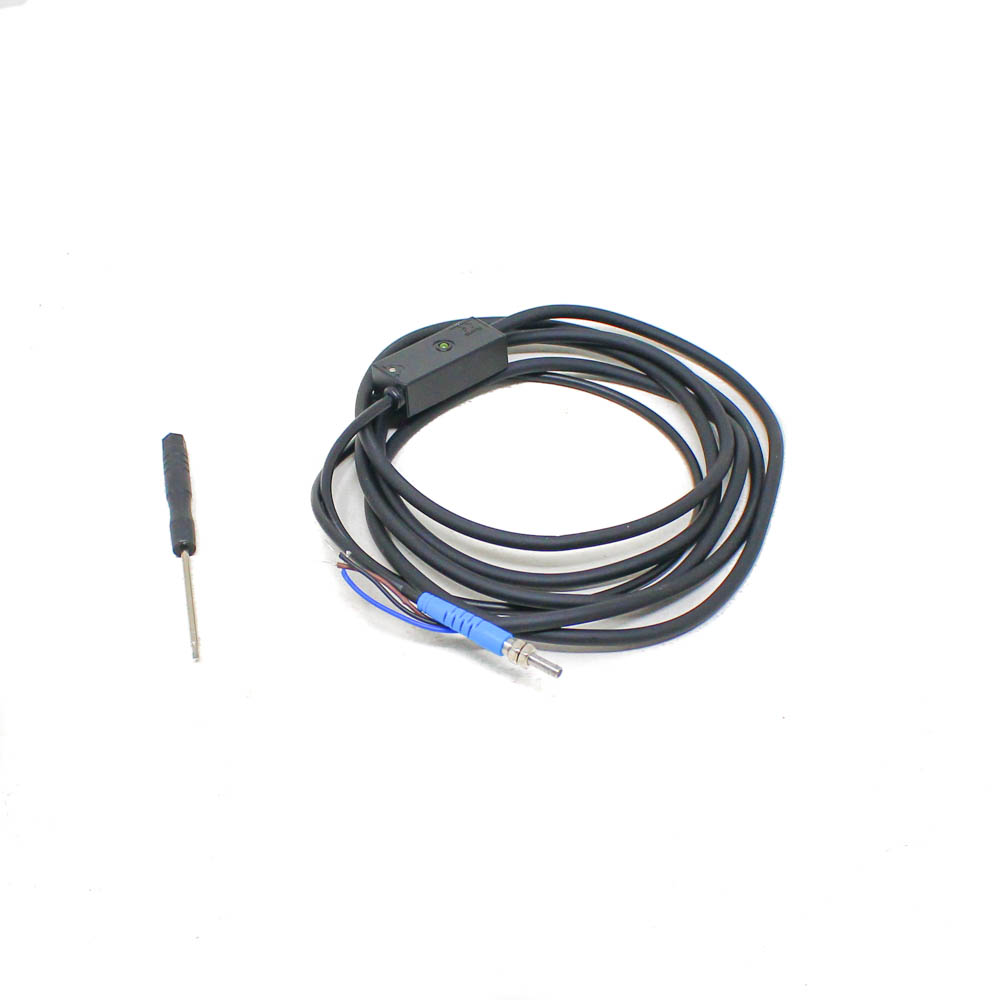

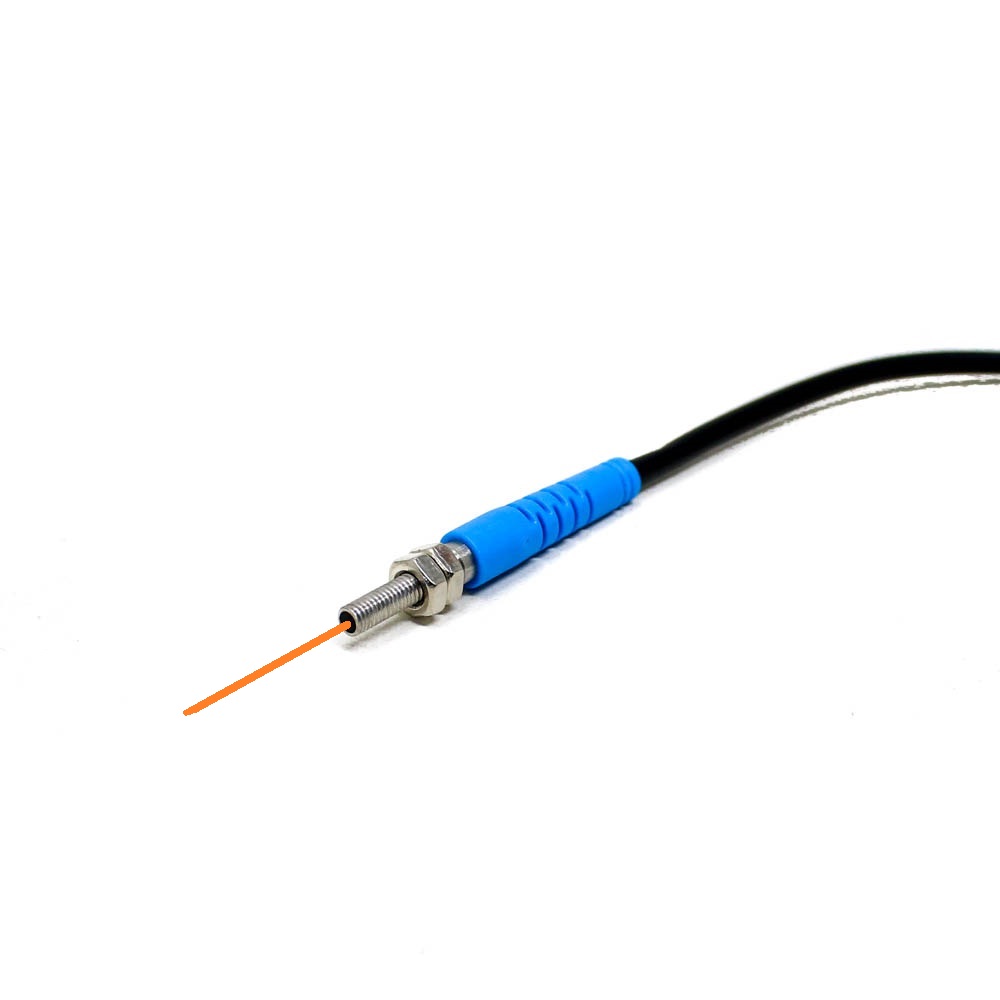

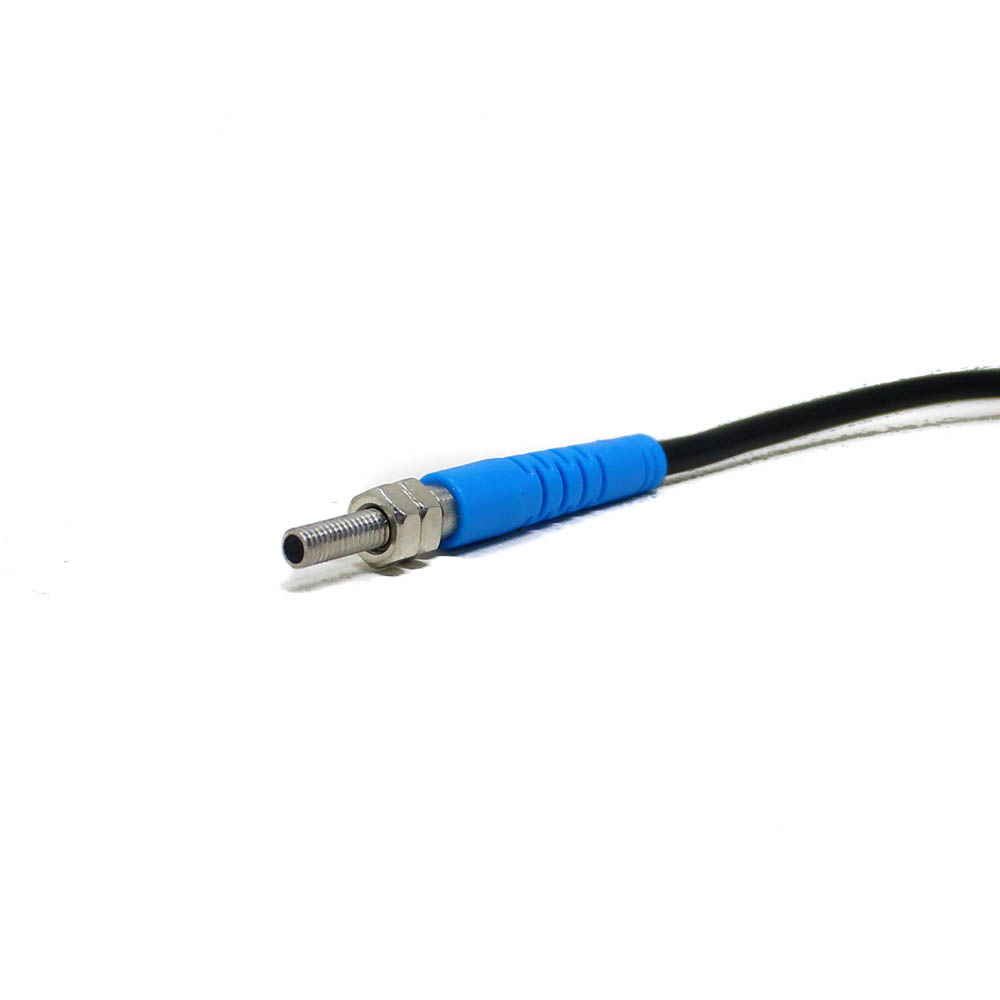

M5 FTD-05NO 100mm Laser Micro Photoelectric Switch - Diffuse Reflective, M4 Thread, Stainless Steel Pipe
The M5 FTD-05NO is a compact, diffuse-reflective laser photoelectric switch designed for precise object detection within a 100mm range. Operating on a 10-30V DC supply, it provides a robust 150mA output signal compatible with PLCs, industrial controllers, and automation systems.
Features
- 100mm diffuse-reflective laser detection range for reliable object sensing.
- Wide 10-30V DC operating voltage range for flexible industrial integration.
- Robust 150mA output current capable of driving relays and small loads directly.
- Compact M4 threaded stainless steel housing for durable, easy mounting.
- 120Hz operating frequency for fast response in high-speed counting or positioning applications.
Out of stock
The M5 FTD-05NO photoelectric switch employs a diffuse-reflective laser sensing principle. The integrated laser emitter and receiver detect objects by sensing the reflection of its own beam, making it suitable for detecting a wide variety of surfaces without requiring a separate reflector. Its synchronous loop gate circuit ensures stable detection and strong immunity to ambient light interference.
Housed in a compact, M4-threaded stainless steel pipe, this sensor is built for durability in industrial environments. It operates within a temperature range of 0°C to 50°C, making it suitable for factory automation, packaging machinery, and material handling systems where reliable, non-contact detection is critical.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 16 × 15 × 1 cm |
