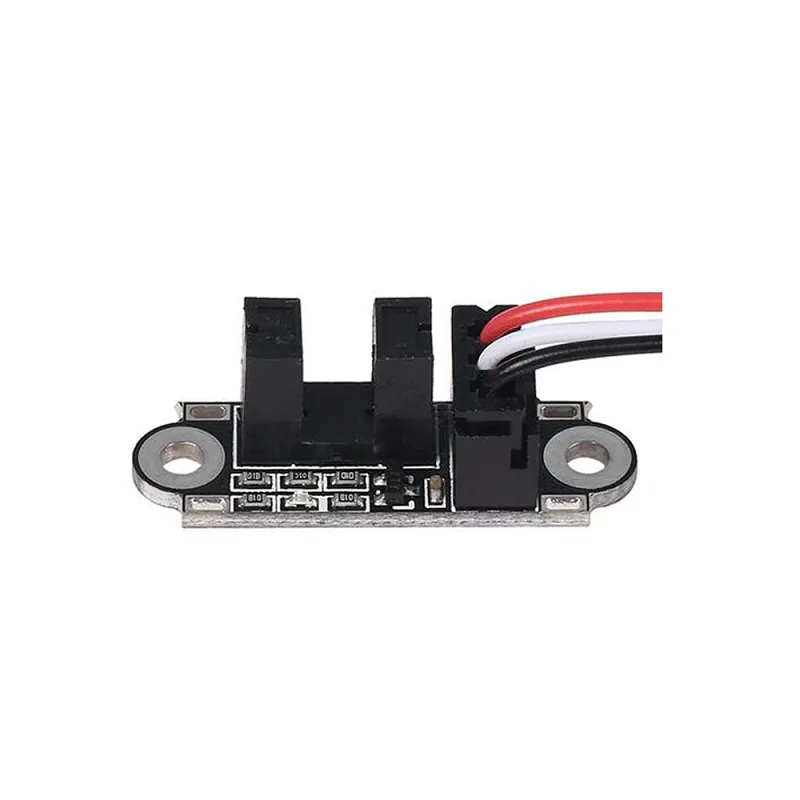

Optical Endstop Light Control Limit Switch for 3D Printer

This optical endstop operates on a photoelectric light control principle. When an object interrupts the light beam, it instantly triggers a digital signal, indicating that the limit has been reached. This non-contact method ensures reliability and extends the switch's operational lifespan compared to mechanical alternatives, making it ideal for precise axis homing.

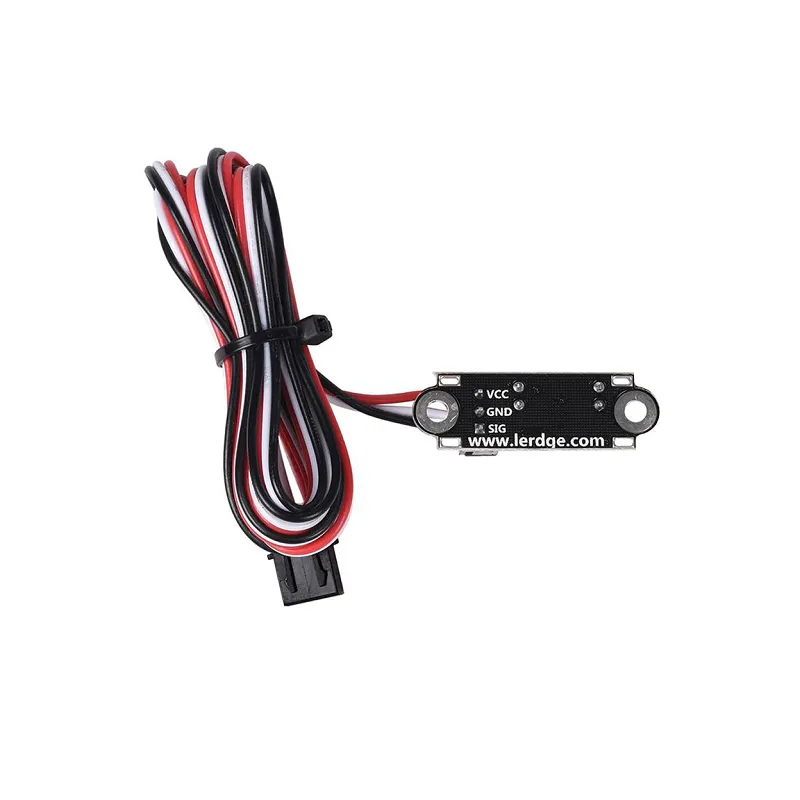

This optical endstop is generally compatible with most 3D printers and CNC machines that utilize 3-pin limit switch inputs. It requires a 2.7V to 5V operating voltage. Users should verify their control board's pinout and voltage specifications before installation to ensure proper electrical connection and functionality.

Unlike mechanical switches that suffer from wear and potential debounce issues, an optical endstop provides consistent, contact-free detection. This eliminates physical degradation, reducing the chance of missed triggers and increasing the accuracy of homing sequences. The result is more reliable machine operation and reduced maintenance over time for critical printer axes.

Optical endstops offer several advantages, including increased precision due to non-contact detection, extended service life because there are no moving parts to wear out, and immunity to mechanical bounce. They provide a cleaner, more reliable signal, leading to more accurate homing and fewer printing errors for 3D printers and CNC applications.
