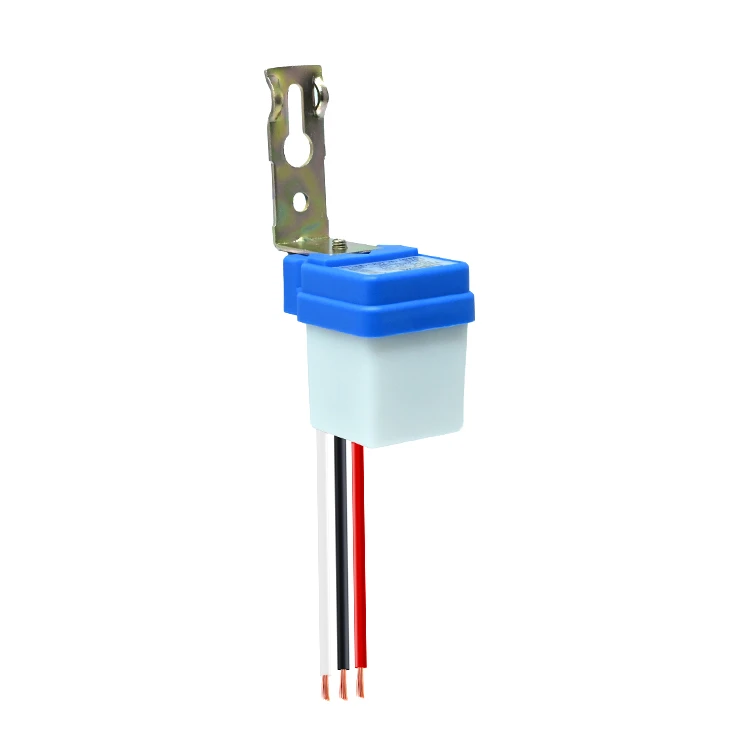

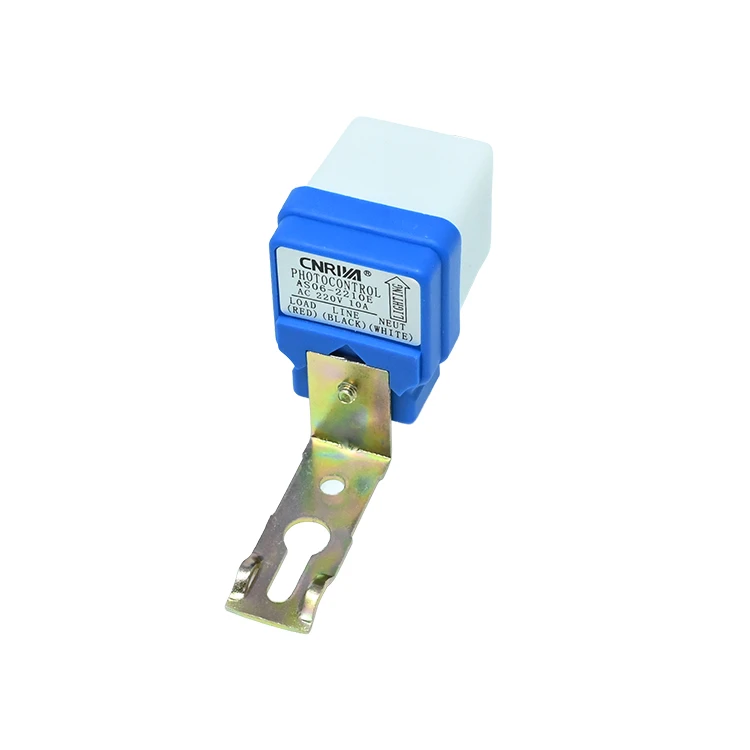

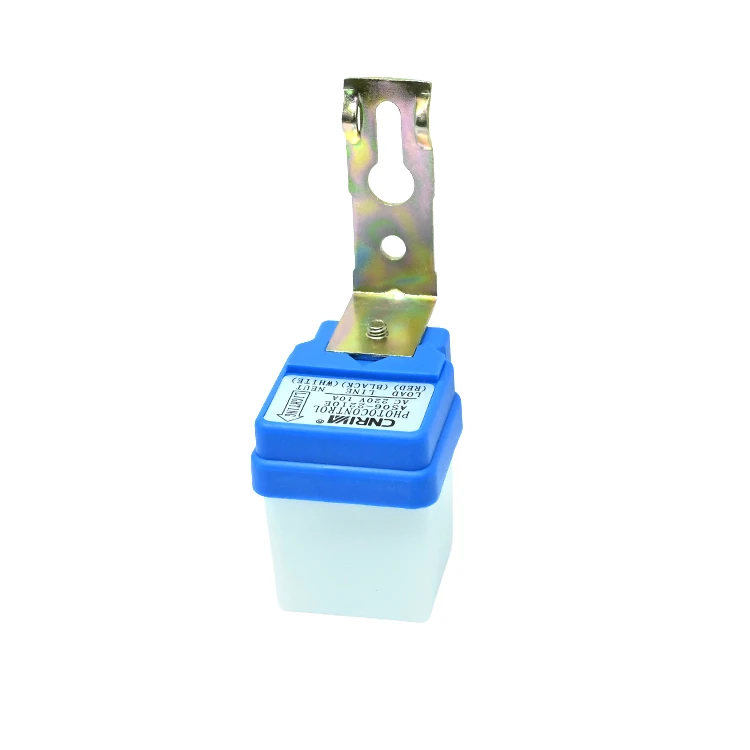

Generic AS06-2210E Photocell Street Lamp Switch Sensor - AC 220V, 10A Load
The AS06-2210E is a photocell-based automatic lighting controller designed for AC 220V street and outdoor lamp systems. It switches connected loads on at dusk (~16 LUX) and off at dawn (<70 LUX), supporting up to 10A for direct integration with high-power lighting fixtures.
Features
- Automatic dusk-to-dawn switching based on ambient light levels (16–70 LUX range)
- Rated for AC 220V, 50–60Hz mains power with a 10A maximum load capacity
- Durable, weather-resistant housing suitable for outdoor installation
- Simplified two-wire installation for series connection with lighting circuits
- Energy-saving operation eliminates manual control and reduces power waste
Out of stock
The AS06-2210E operates on a cadmium sulfide (CdS) photoconductive cell principle, where its internal resistance decreases as ambient light intensity rises. This change in resistance is used to control a solid-state relay or switching circuit, enabling automatic ON/OFF control of connected AC lighting loads. The device is engineered for direct 220V AC line integration, requiring no separate DC power supply or logic-level interface.
Built with outdoor durability in mind, its encapsulated housing protects the sensing element and electronics from dust and moisture ingress. The fixed hysteresis between turn-on (~16 LUX) and turn-off (<70 LUX) thresholds prevents relay chattering during twilight conditions, ensuring stable and reliable operation for street lamps, security lights, and garden lighting systems.
Additional Information
| Weight | 0.061 kg |
|---|---|
| Dimensions | 10 × 6.5 × 4 cm |
