Geekworm X1202 4-Cell 18650 UPS HAT for Raspberry Pi 5
The Geekworm X1202 is an ultra-compact advanced uninterruptible power supply (UPS) HAT designed specifically for the Raspberry Pi 5. It provides a stable 5.1V 5A backup power from four 18650 cells, ensuring continuous operation and protecting against power outages.
Features
- Provides 5.1V 5A uninterrupted backup power for Raspberry Pi 5.

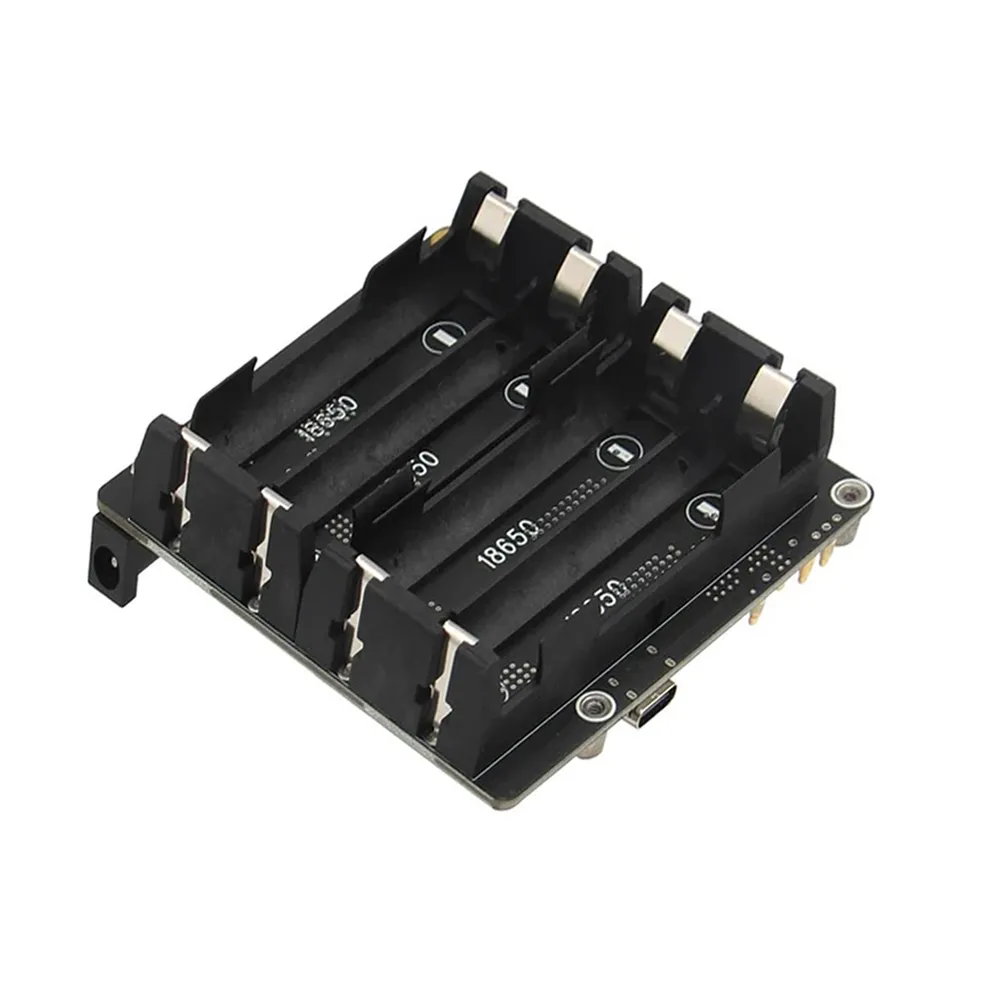

- Supports four 18650 batteries (not included) for extended runtime.
- Features intelligent power management with auto power-on and software shutdown.
- Enables seamless power switching during outages and fast 3A battery recharging.

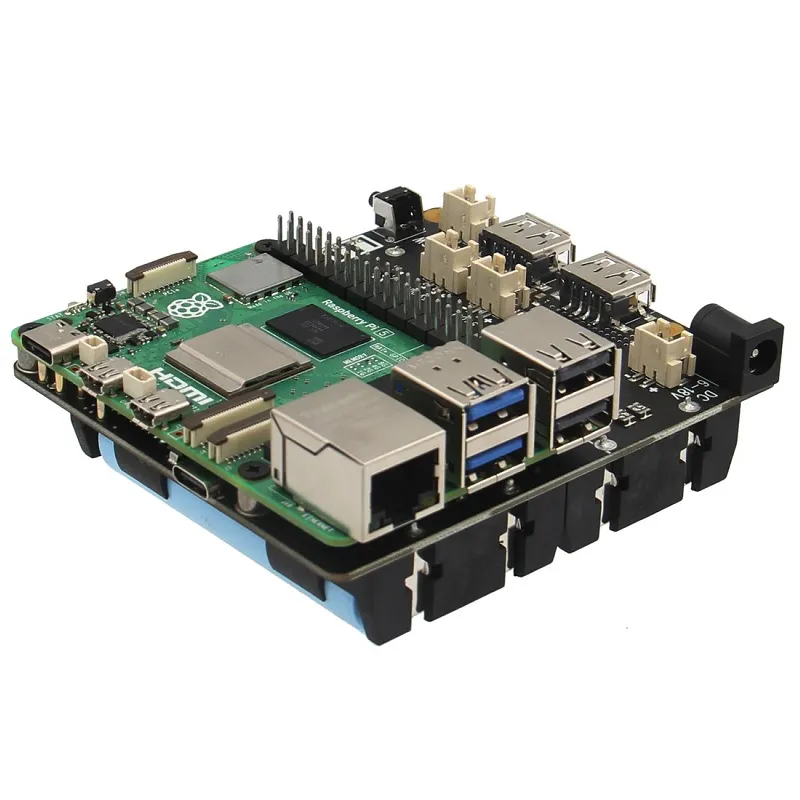

- Designed to mount underneath the Pi 5, allowing stacking with other HATs without GPIO obstruction.
Out of stock
The X1202 is an ultra-compact advanced uninterruptible power supply expansion board engineered specifically for the Raspberry Pi 5. With its robust power backup capabilities, the X1202 ensures stable and continuous operation for even the most demanding Raspberry Pi setups, safeguarding against unexpected power interruptions.
This UPS HAT features advanced power management, including automatic power cutoff on shutdown to optimize battery life and ultra-low standby consumption. It facilitates seamless power switching to backup power during outages or adapter failures, maintaining continuous Pi operation. The X1202 supports auto power-on and software-controlled full shutdown for convenient management, along with quick recharging up to 3000mA for rapid readiness. While not compatible with the X1002 PCIe to M.2 2280 NVMe SSD Bottom board, it works perfectly with X1001/X1000/X1003 PCIe to M.2 NVMe SSD Top boards.
Additional Information
| Weight | 0.117 kg |
|---|---|
| Dimensions | 9.5 × 8.51 × 2.49 cm |
