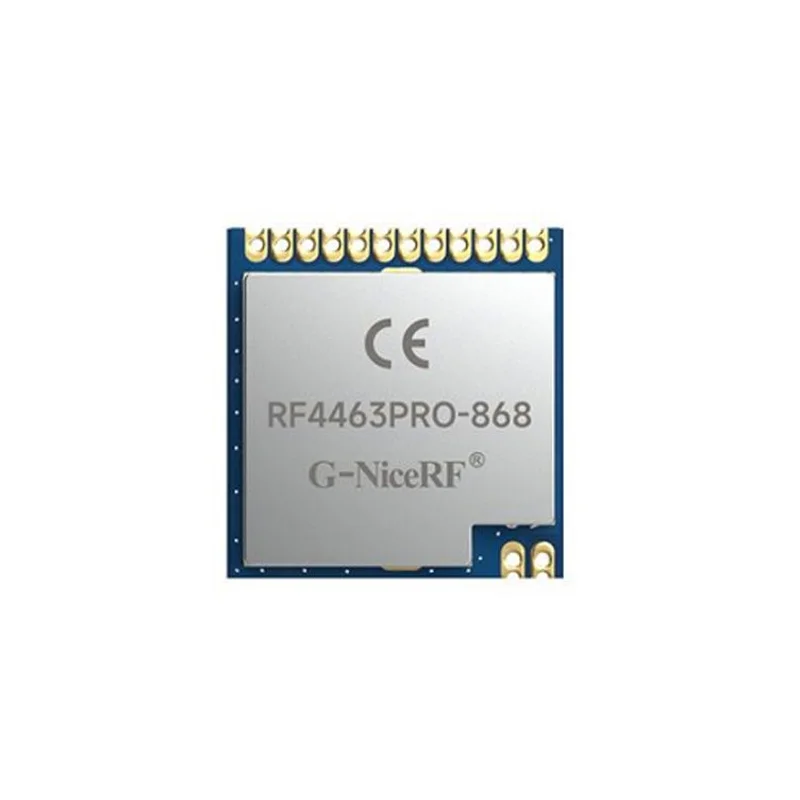

G-NiceRF RF4463PRO-868 Si4463 CE-RED Certified 868MHz RF Module
The G-NiceRF RF4463PRO-868 is a CE-RED certified, high-performance RF transceiver module operating in the 868MHz ISM band, built on the Silicon Labs Si4463 chip for reliable long-range wireless data links in sensor networks and industrial control systems.
Features
- Powered by Silicon Labs Si4463 C2 transceiver IC for robust 868MHz ISM band communication.
- High RF sensitivity of -126 dBm and configurable output power up to +20 dBm (100mW) for extended range.
- Ultra-low power consumption with 13.5 mA in active RX mode and configurable low-power sleep states.
- Wide adjustable data rate from 0.1 kbps to 1000 kbps to optimize for range or throughput.
- CE-RED certified, simplifying regulatory compliance for wireless product deployment in European markets.
Out of stock
The G-NiceRF RF4463PRO-868 is a professional-grade RF module designed for developers and system integrators requiring reliable, long-range sub-1GHz wireless connectivity. Its core is the Silicon Labs Si4463 C2 transceiver, which provides excellent receiver sensitivity and high transmit power for robust communication links in noisy RF environments. The module supports a wide range of modulation schemes and data rates, allowing for optimization between range, data throughput, and power consumption.
Engineered for industrial applications, it operates from a 1.8V to 3.6V supply and features a stable 10ppm crystal for precise frequency control. Its CE-RED certification reduces the time and cost associated with bringing a wireless product to market in Europe, making it an ideal choice for remote telemetry, industrial automation, and sensor network projects requiring regulatory compliance.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 7 × 9 × 1 cm |
