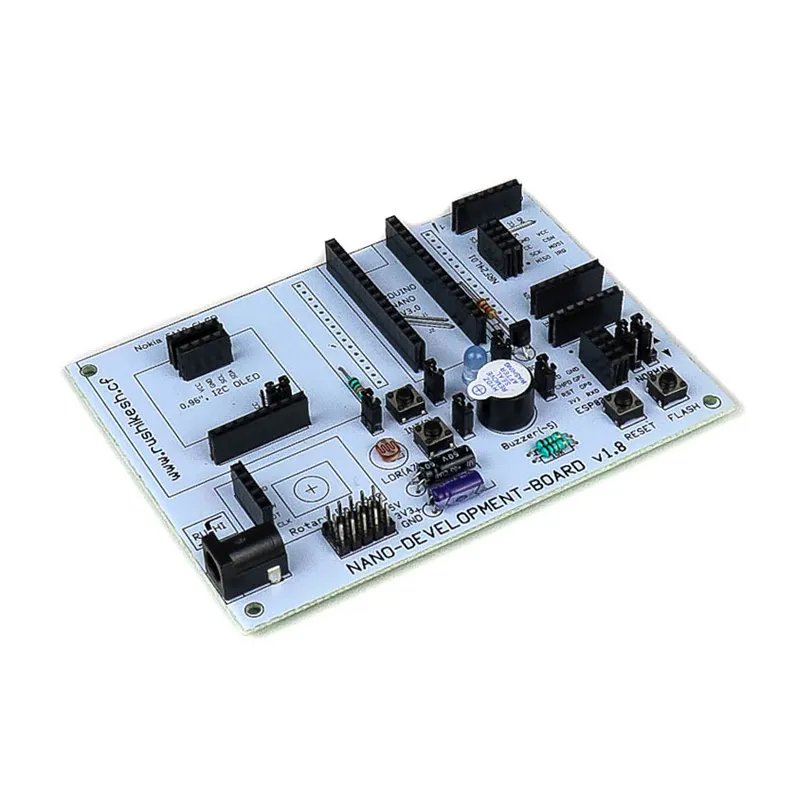

HACK-NANO Development Board for Arduino Nano
The HACK-NANO Development PCB Board simplifies Arduino Nano projects by providing dedicated slots and integrated peripherals for common modules. It eliminates complex breadboard wiring, allowing for rapid prototyping and easy expansion with features like onboard LDR, buttons, and direct power outputs.
Features
- Simplifies Arduino Nano projects by integrating common module interfaces.
- Features dedicated slots for MicroSD, nRF24L01, RTC, Bluetooth, ESP8266, and Nokia 5110 GLCD modules.
- Includes onboard LDR, Reset/Flash button, and two interrupt-capable push-buttons.
- Provides regulated 5V and 3.3V output pins to power external components directly.
- Individual jumpers allow manual connection/disconnection of LEDs, buzzer, and interrupt buttons.
Out of stock
The HACK-NANO Development PCB Board addresses the common challenge of complex breadboard wiring when integrating external modules with the Arduino Nano. Leveraging the Nano’s powerful ATmega328P microcontroller, this board consolidates essential interfaces and peripherals, making it an ideal platform for beginners and experienced makers alike to accelerate project development.

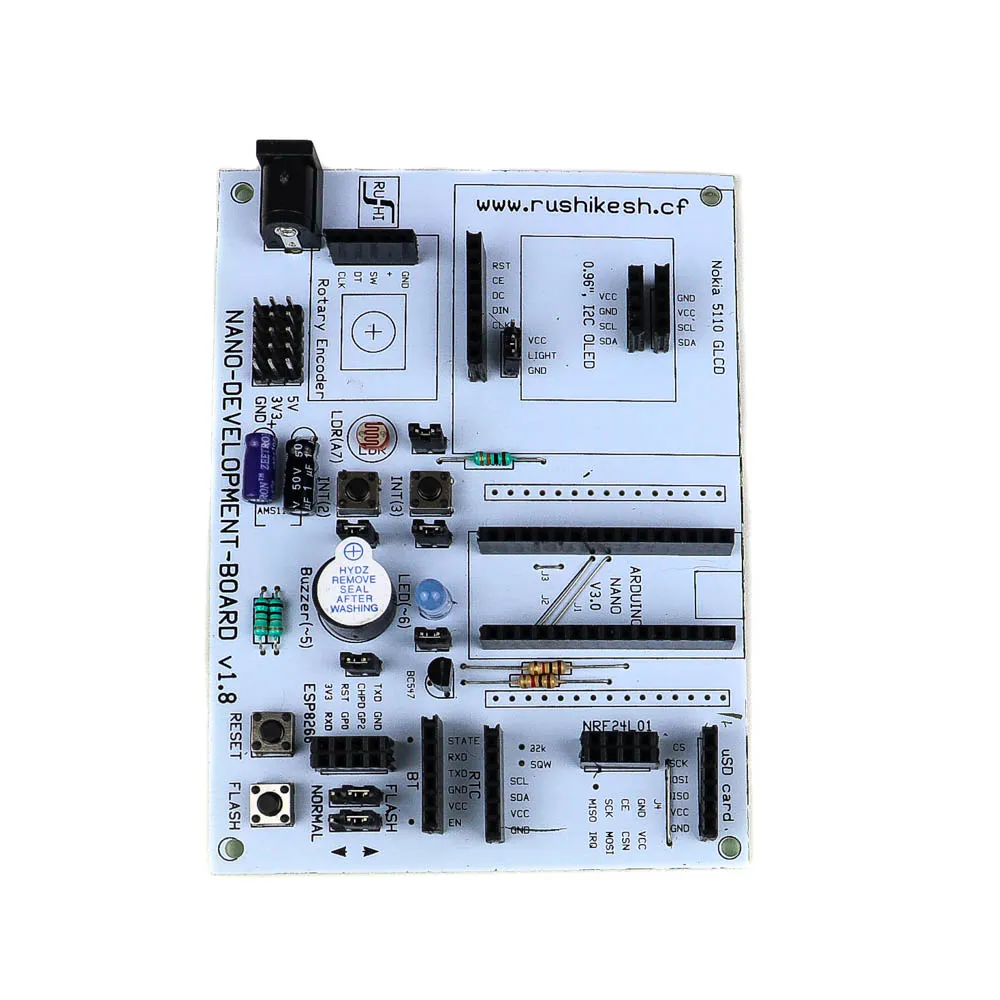

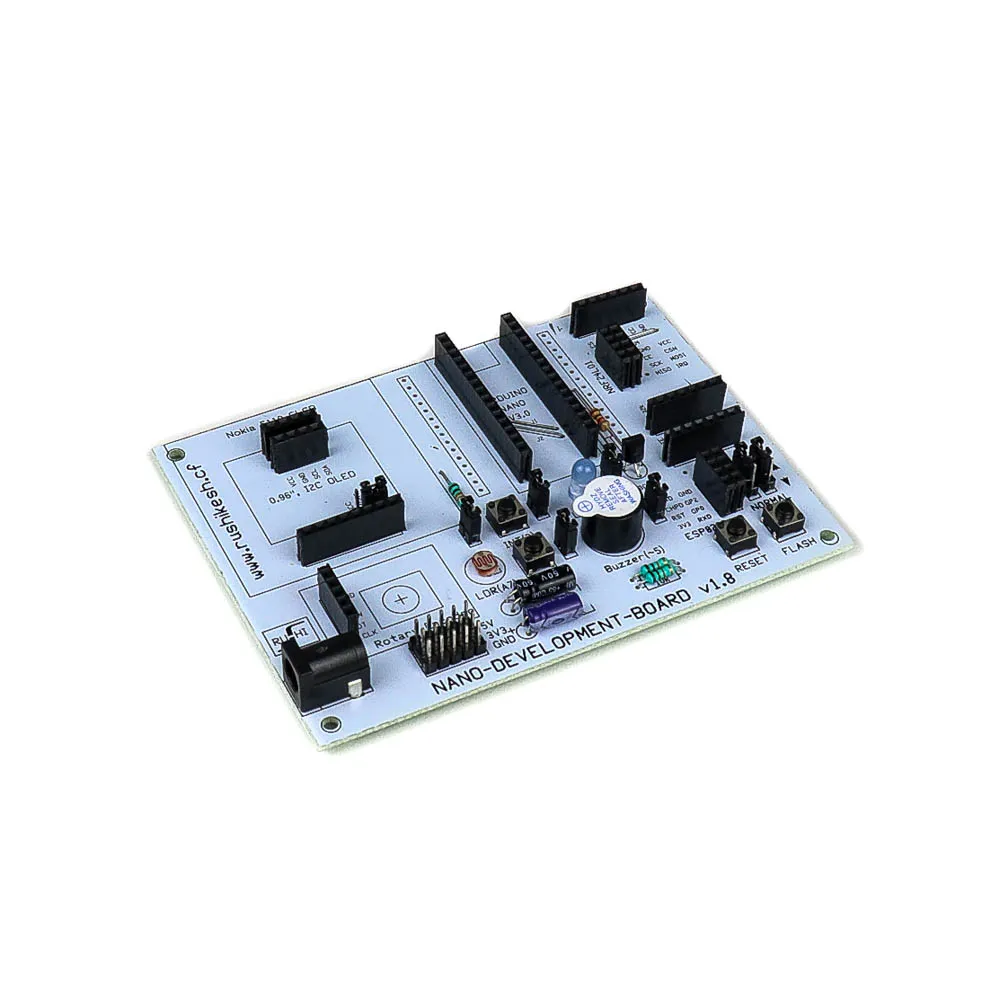

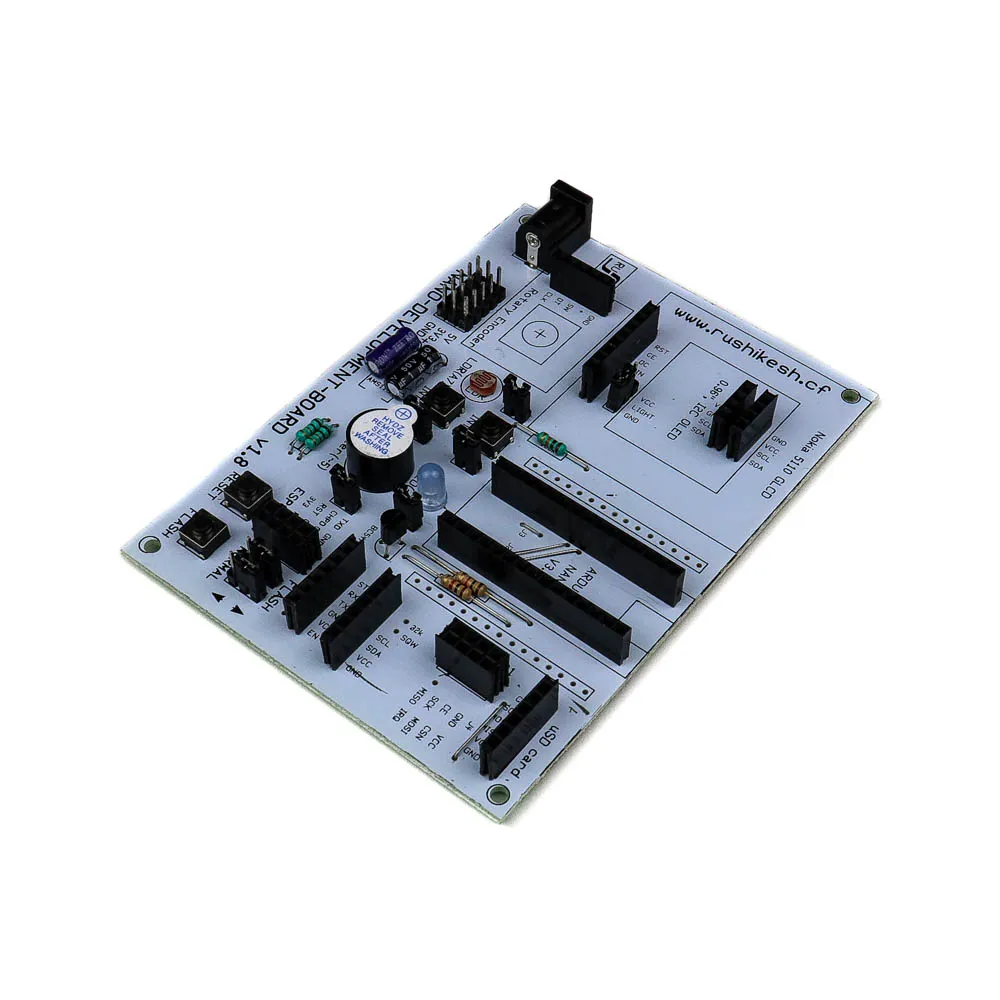

This versatile development board features dedicated onboard slots for a wide array of popular modules, including Micro SD cards, nRF24L01 wireless transceivers, DS1307/DS3231 Real-Time Clocks (RTC), HC-05/HC-06 Bluetooth modules, ESP8266-01 WiFi modules with on-board flashing capabilities, rotary encoders, and Nokia 5110 GLCD displays. This integration streamlines connections, eliminating the need for intricate custom circuitry and ensuring reliable performance.
Beyond module support, the HACK-NANO board enhances prototyping with integrated peripherals such as an LDR for light sensing, two push-button switches for generating interrupts, and a Reset/Flash button for convenient programming. It also provides regulated 5V and 3.3V output pins, simplifying power distribution to external sensors and actuators. A specific power jumper is included for Nokia 5110 LCDs, allowing selection between 3.3V and GND for backlight control to accommodate various display types.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 11.9 × 8.9 cm |
