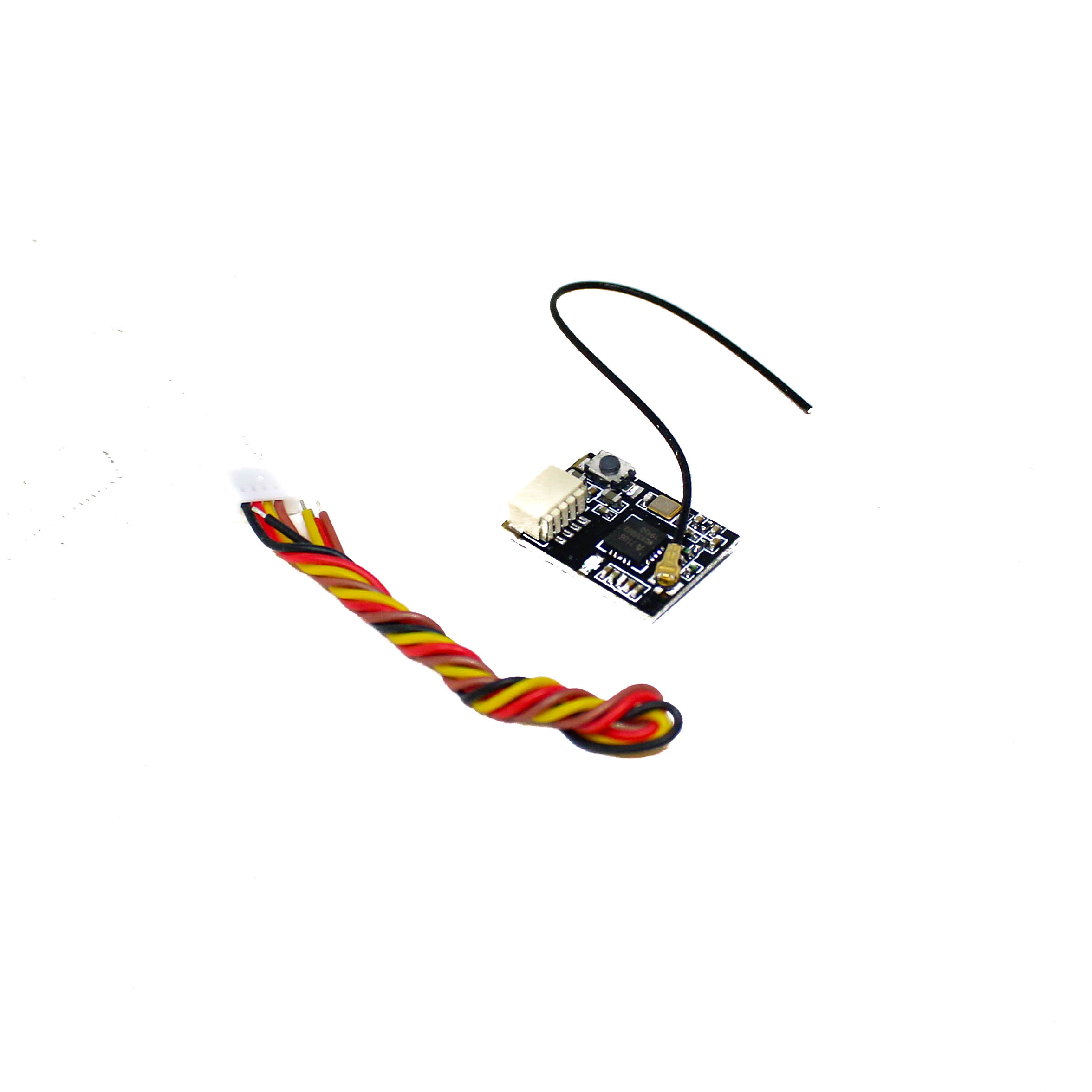

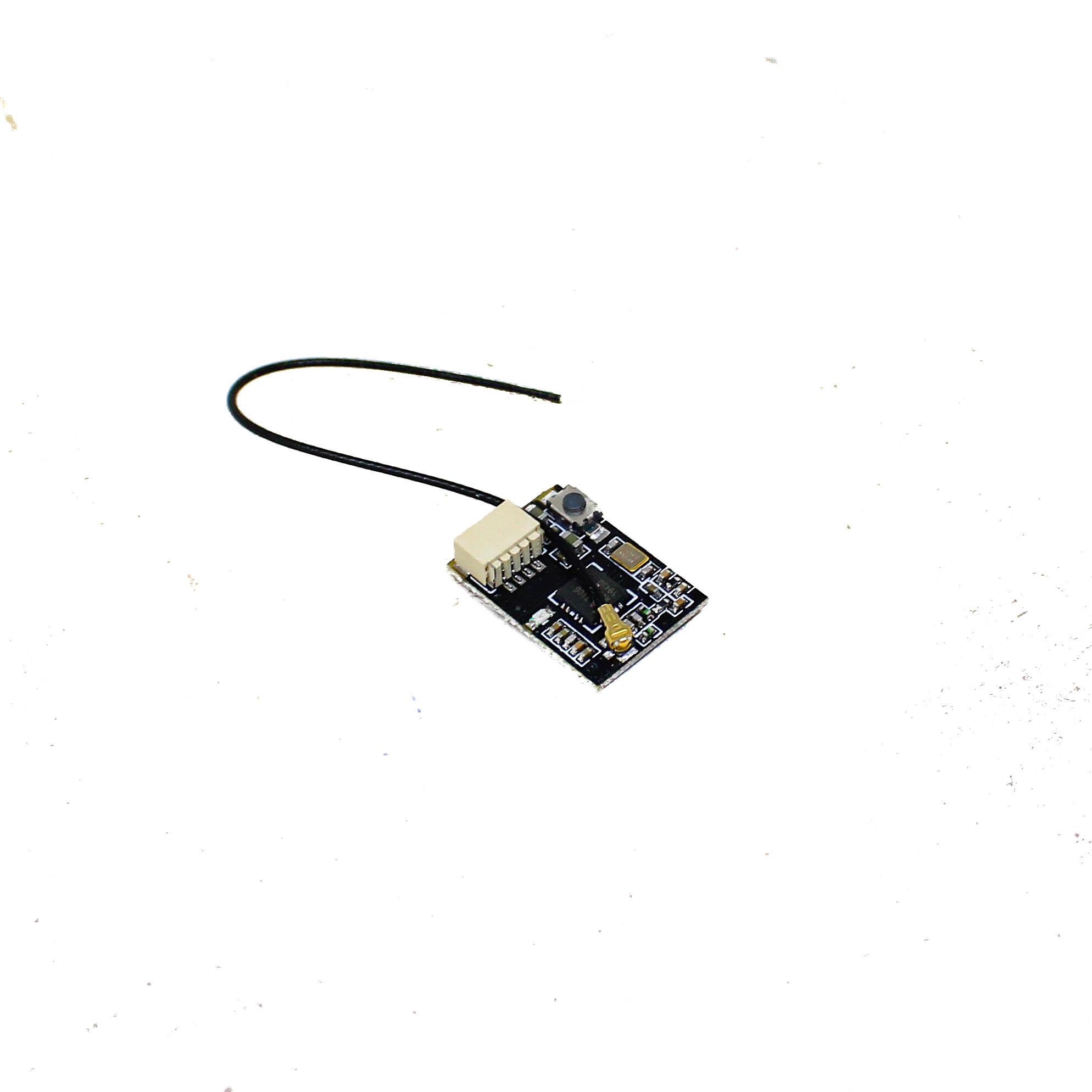

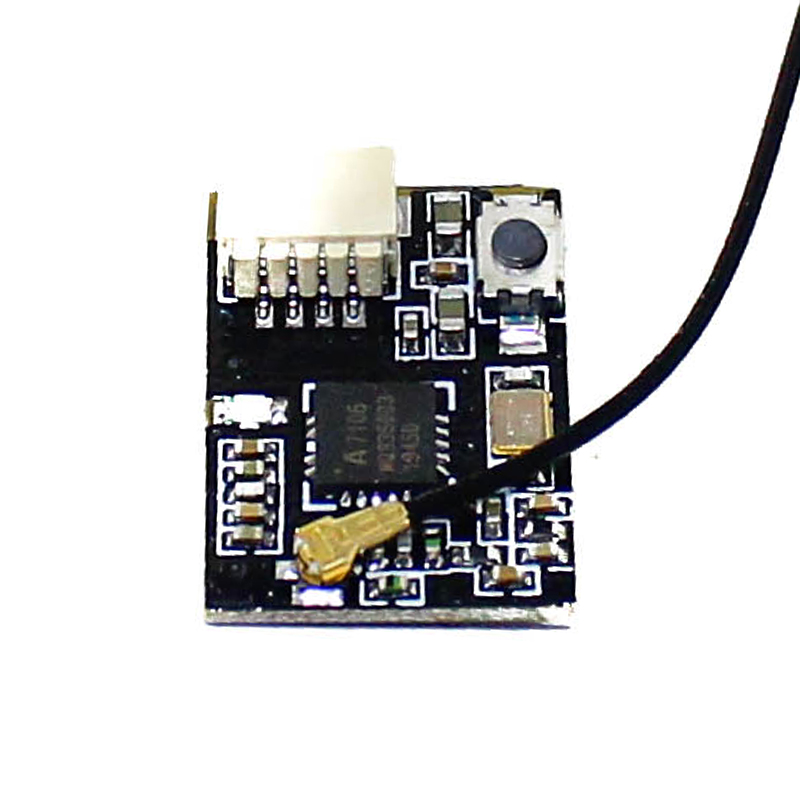

Fuss FS-RX2A Pro V1 Receiver Mini - IBUS / PPM / SBUS Signal
The Fuss FS-RX2A Pro V1 is a compact, lightweight 2.4GHz receiver compatible with AFHDS 2A protocol transmitters, providing IBUS, PPM, and SBUS signal outputs for multi-rotor drones and fixed-wing aircraft.
Features
- Ultra-compact 12 x 15 mm footprint weighing only 0.9 grams for space-constrained builds.
- Supports IBUS, PPM, and SBUS signal outputs for flexible integration with various flight controllers.
- Wide input voltage range from 5.0V to 20V, compatible with direct LiPo and regulated BEC power sources.
- AFHDS 2A protocol compatibility with FlySky transmitters like FS-I6, FS-I6X, and FS-I10.
- Features a failsafe function on IBUS output for enhanced flight safety and loss-of-signal protection.
Out of stock
The FS-RX2A Pro V1 receiver is engineered for pilots requiring a minimalistic, high-performance link for their drone or RC aircraft. Its AFHDS 2A protocol ensures stable communication with a wide range of FlySky transmitters, while the multi-protocol output (IBUS, PPM, SBUS) allows seamless connection to most modern flight control systems, from Betaflight to ArduPilot.
With a robust operating voltage of 5-20V, it can be powered directly from a 2S-4S LiPo battery via a compatible ESC BEC or a standalone voltage regulator. The receiver’s -92dBm sensitivity and optimized 2.4GHz antenna provide a reliable control link with a range exceeding 500 meters in open areas, making it suitable for FPV racing, freestyle, and general RC aviation.
Additional Information
| Weight | 0.0009 kg |
|---|---|
| Dimensions | 1.2 × 1.5 × 0.3 cm |
