FrSky TD R10 2.4GHz 900M Dual Band Receiver w/ Antennas
The FrSky TD R10 is a dual-band receiver operating simultaneously on 2.4GHz and 900MHz TD protocols, designed for Tandem series transmitters. It features 10 configurable channel ports, a built-in black box, and supports FBUS telemetry for integration with Neuron ESCs and advanced sensors.
Features
- Simultaneous dual-band TD mode for enhanced reliability and anti-interference performance.
- 10 configurable channel ports assignable as PWM, SBUS, FBUS, or S.Port.

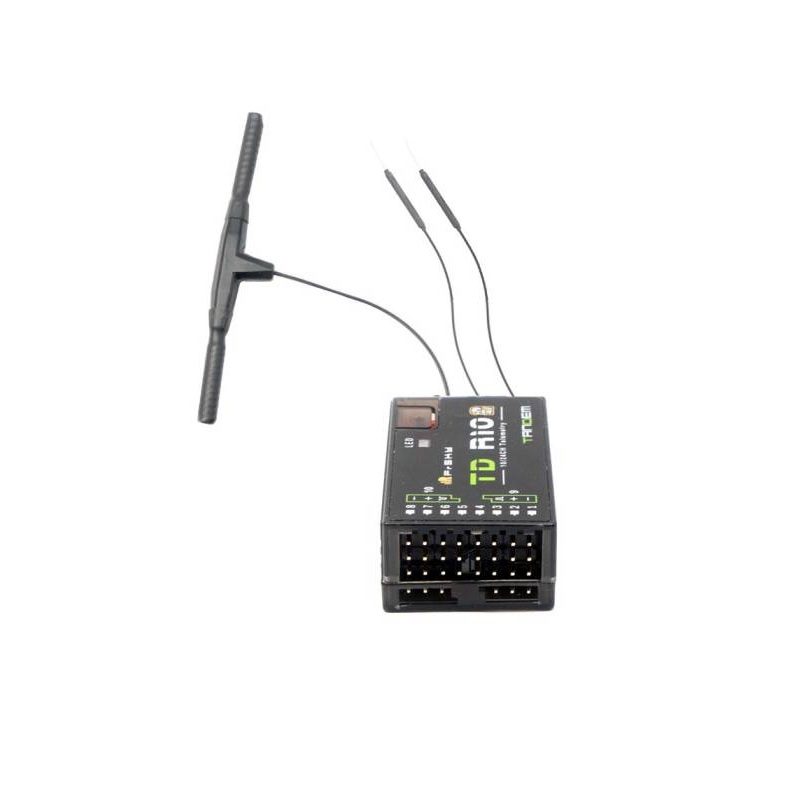

- Triple antenna design (2.4GHz/900MHz) for multi-directional signal coverage.
- Built-in black box module for recording flight data and voltage sensor.
- Supports 4ms Race Mode with telemetry and Over-The-Air (OTA) firmware updates.
Out of stock
The FrSky TD R10 receiver leverages simultaneous 2.4GHz and 900MHz operation within the proprietary TD protocol to deliver a robust control link characterized by low latency and extended range. This dual-band architecture provides a high level of signal redundancy and interference resistance, making it suitable for demanding FPV and long-range applications where control reliability is critical.
Engineered for system integration, the receiver features 10 fully configurable channel ports. Each port can be assigned as PWM, SBUS Out, FBUS, or S.Port, with CP1 also supporting SBUS In. The FBUS protocol enables seamless daisy-chaining of telemetry devices like Neuron ESCs and advanced sensors, simplifying complex build setups. The integrated black box module records vital power and signal data during flight for post-flight analysis.
Additional Information
| Weight | 0.0166 kg |
|---|---|
| Dimensions | 4.65 × 2.63 × 1.47 cm |
