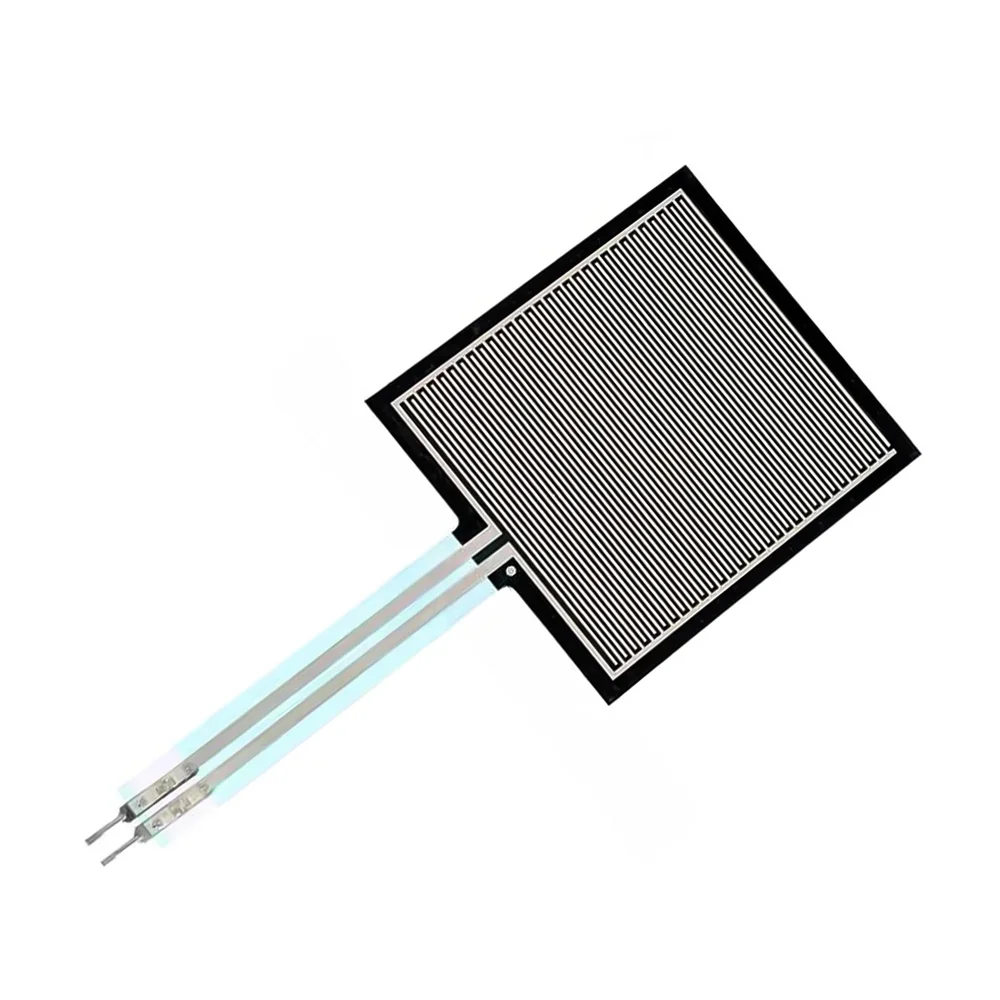

Force Sensitive Resistor RP-S40-LT (10g-20kg)
The RP-S40-LT is a thin-film force-sensitive resistor (FSR) providing variable resistance from 500KΩ to 500Ω across a 10g to 20kg sensing range. Its ultra-thin 0.45mm profile and wide operating temperature make it ideal for integration into embedded systems, robotics, and pressure-sensing applications.
Features

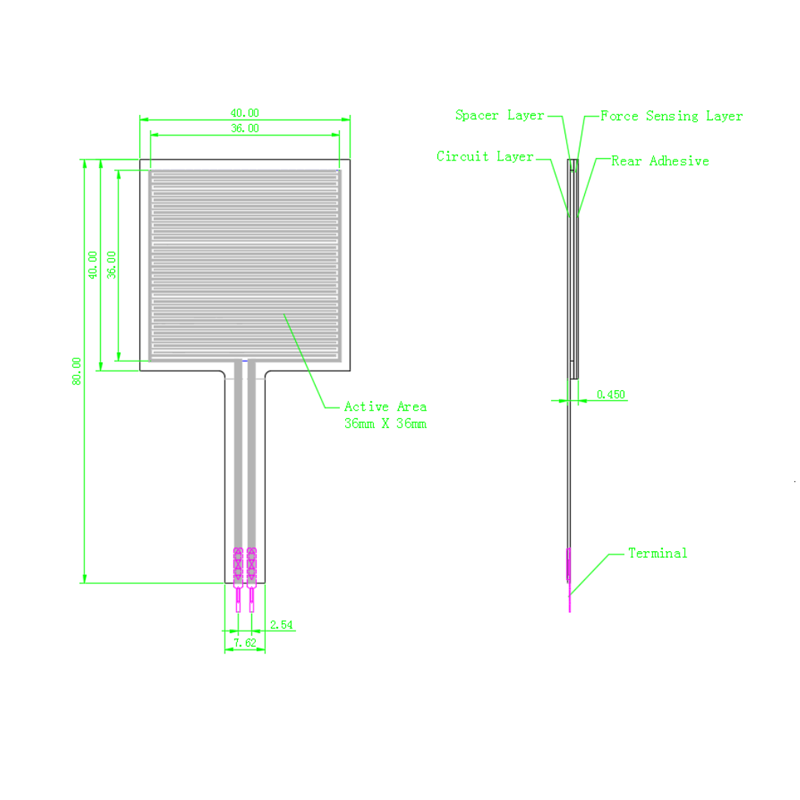

- Ultra-thin 0.45mm polymer thick film (PTF) construction for flexible integration.
- Wide dynamic sensing range from 10 grams to 20 kilograms.
- Outputs a variable resistance signal from approximately 500KΩ (light touch) to 500Ω (full force).
- Robust operating temperature range from -40°C to +85°C.
- Simple two-terminal resistive interface compatible with voltage divider circuits for microcontrollers.
Out of stock
The RP-S40-LT Force Sensitive Resistor operates on the principle of piezoresistivity, where the electrical resistance through a conductive polymer composite decreases predictably with an increase in applied force. This analog output provides a continuous measurement of pressure across its active sensing area.
Engineered for durability, the sensor’s thin-film structure withstands a wide thermal range from -40°C to +85°C, making it suitable for challenging environments. Its response characteristic is non-linear, typically requiring calibration via a lookup table or polynomial fitting for precise force quantification in end applications.
