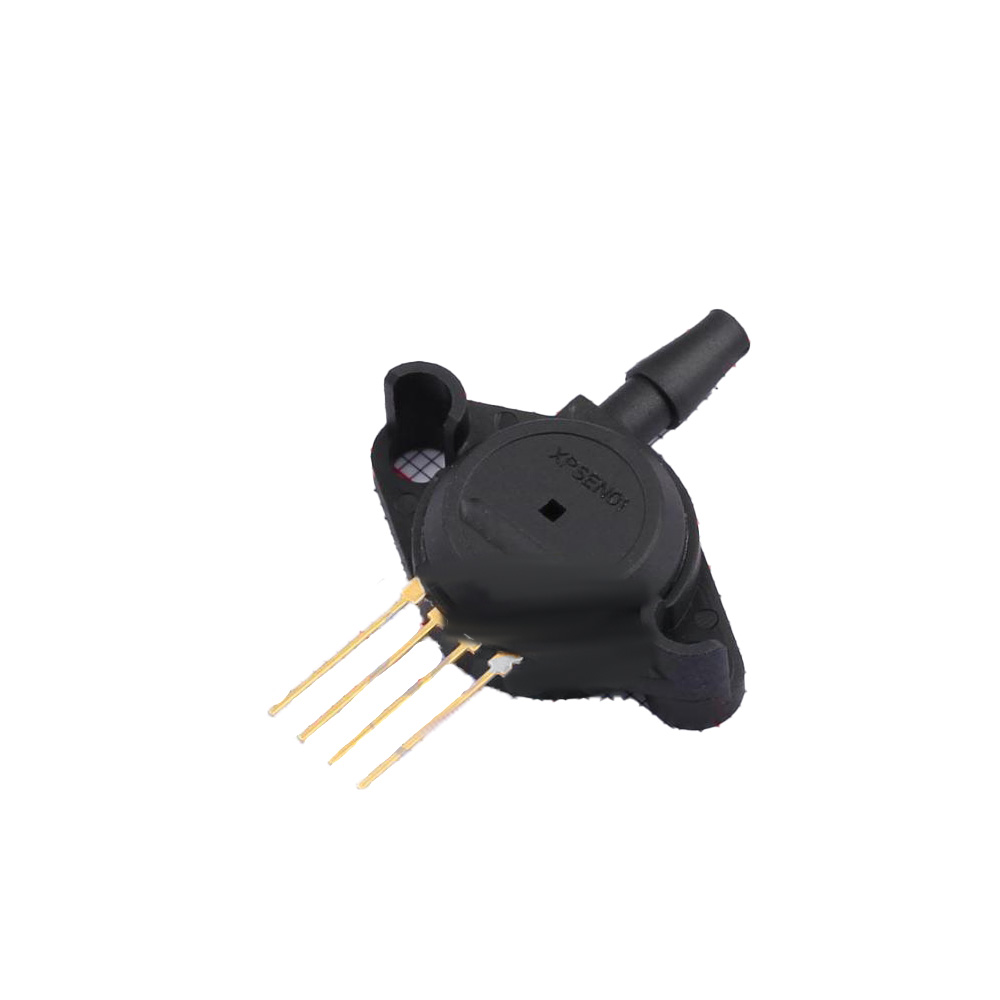

Sencoch GZP191-201G Plugin Pressure Sensor ROHS, Range 0-200 kPa, Analog Voltage Output
The Sencoch GZP191-201G is a compact, plugin-style piezoresistive pressure sensor delivering an analog voltage output for a 0-200 kPa gauge pressure range. It is designed for easy integration into medical, healthcare, and household appliance control systems requiring precise pressure monitoring.
Features
- Piezoresistive MEMS sensor for gauge pressure measurement from 0 to 200 kPa.
- Analog voltage output for direct interface with microcontroller ADCs (e.g., Arduino, Raspberry Pi).
- Compact plugin package for simplified PCB mounting and space-constrained designs.
- ±2% accuracy for reliable pressure monitoring in critical applications.
- ROHS compliant construction suitable for medical, healthcare, and household appliances.
Out of stock
The GZP191-201G utilizes a piezoresistive sensing element fabricated on a silicon MEMS structure. Applied pressure causes a measurable change in resistance, which is conditioned internally to provide a stable analog voltage signal proportional to the pressure within its 0-200 kPa gauge range. This design ensures high sensitivity and fast response times.
Housed in a compact plugin package, the sensor is engineered for straightforward PCB integration, eliminating the need for complex external plumbing or mounting hardware. Its ROHS-compliant materials and construction make it suitable for applications with strict regulatory requirements, particularly in medical devices and consumer appliances where consistent and accurate pressure feedback is essential for system control and safety.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
