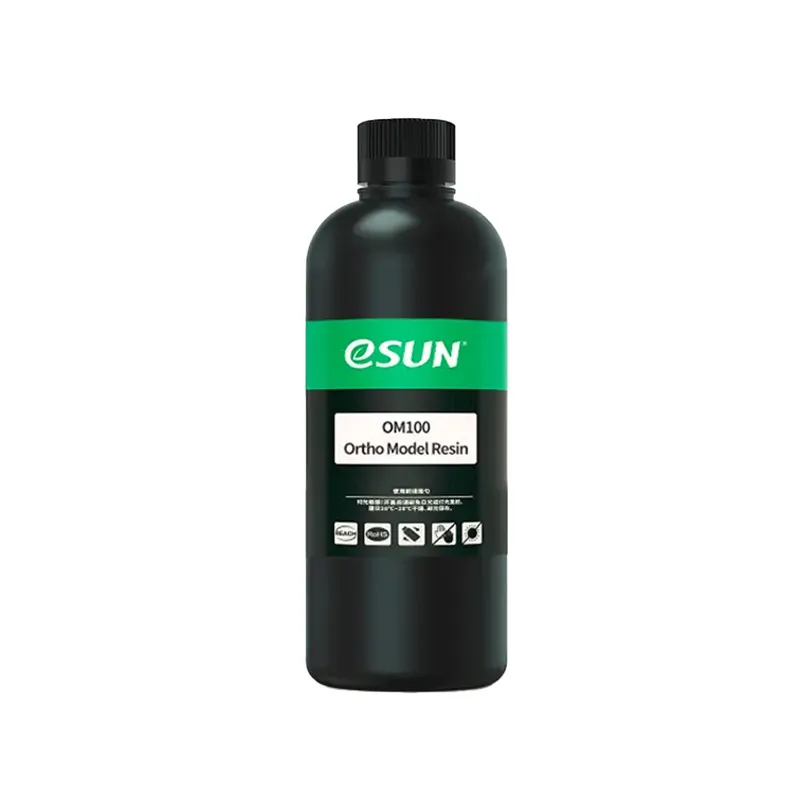

eSUN OM100 Ortho Model Resin, Beige, 1kg

Name: eSUN OM100 Ortho Model Resin, Beige, 1kg
Brand: eSUN
SKU: 3DMR-0804
Price: 4182.00 INR
Availability: OutOfStock

₹4,182.00 (Inclusive of all taxes)

Out of Stock

eSUN OM100 Ortho Model Resin is a high-temperature resistant photopolymer engineered for precision dental models. This beige resin offers exceptional surface hardness (>83D) and minimal deformation, making it ideal for dental professionals requiring accurate and durable prints for orthodontic applications.

Features

High-temperature resistance crucial for hot press molding processes.
Exceptional surface hardness (> 83D) ensures superior scratch resistance and durability.
Formulated for minimal deformation, maintaining high precision in dental models.
Washable resin simplifies post-processing and enhances workflow efficiency.
Optimized for creating detailed and high-quality orthodontic models.

Out of stock

Get Notified When Available

Description

The eSUN OM100 Ortho Model Resin is an advanced photopolymer engineered specifically for 3D printing high-performance orthodontic dental models. This specialized resin is characterized by its remarkable high-temperature resistance, enabling printed models to endure the intense pressure and heat associated with hot press molding instruments without significant deformation. This critical property ensures that dental professionals can achieve consistent precision and reliability in their demanding applications.

Boasting a surface hardness exceeding 83D, the OM100 resin provides outstanding scratch resistance and robust structural integrity, even when subjected to elevated temperatures. Its formulation is designed for ease of use, featuring a washable nature that streamlines the post-processing workflow in dental labs. This combination of accuracy, durability, and simplified handling makes OM100 an ideal choice for producing detailed, high-quality orthodontic models, significantly improving operational efficiency for dental practitioners.

Key Features

Exceptional high-temperature resistance, suitable for hot press molding and thermoforming.
Ensures minimal dimensional deformation under applied heat and pressure.
Achieves a high surface hardness of over 83D (Shore D), providing excellent scratch and abrasion resistance.
Specifically formulated for precise and accurate orthodontic model printing.
Washable with water or IPA, significantly simplifying post-processing and cleanup.
Maintains structural integrity and detail precision even after repeated handling.
Exhibits precise molding accuracy for intricate dental geometries.
Optimized for broad compatibility with most LCD/DLP 3D printers using 395-405nm light.

Applications

High-precision orthodontic dental models for diagnosis and treatment planning.
Models for vacuum forming retainers and aligners.
Master models for hot press molding dental appliances.
Study models requiring high detail and dimensional stability.
Dental prototypes demanding excellent scratch resistance and durability.

Technical Specifications

Color	Beige
Material Type	OM100 Ortho Model Resin
Net Weight	1 kg
Density	1.05-1.25 g/cm³
Viscosity	200-400 mPa·s
Curing Wavelength	395-405 nm
Tensile Strength	33.781 ± 10 % Mpa
Surface Hardness	> 83D (Shore D)

Frequently Asked Questions

What are the optimal printing conditions for eSUN OM100 resin?

For optimal results with eSUN OM100, target a layer height of 0.05mm and ensure your LCD/DLP printer's UV light is within 395-405nm. Exposure times vary by printer, but a good starting point is 2.5-4 seconds per layer. Maintain a room temperature of 20-25°C for best print quality and resin flow.

How should I post-process models printed with eSUN OM100 resin?

After printing, thoroughly wash models in an ultrasonic cleaner with 90%+ IPA or water for 2-5 minutes, ensuring all uncured resin is removed. Allow the model to dry completely before post-curing. Cure under a 395-405nm UV lamp for 2-5 minutes per side, depending on model thickness and lamp intensity, to achieve full mechanical properties.

Is eSUN OM100 resin truly high-temperature resistant for dental applications?

Yes, OM100 resin is specifically formulated to withstand the high temperatures and pressures of hot press molding instruments used in dental labs, minimizing deformation. This ensures exceptional precision and reliability for creating durable orthodontic models that retain their integrity during subsequent manufacturing processes, critical for dental professionals.

Can eSUN OM100 resin be used with any resin 3D printer?

eSUN OM100 is designed for LCD and DLP resin 3D printers that operate within the 395-405nm UV wavelength. While generally compatible with most open-source resin printers, specific exposure settings might require calibration based on your printer's light source power and screen resolution. Always perform a calibration test for best results.
