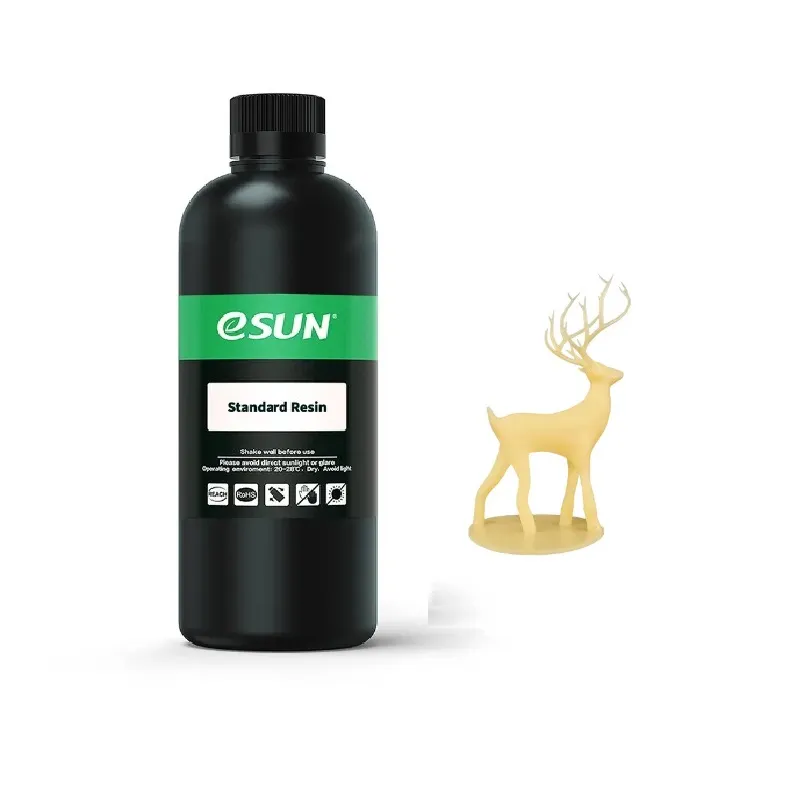

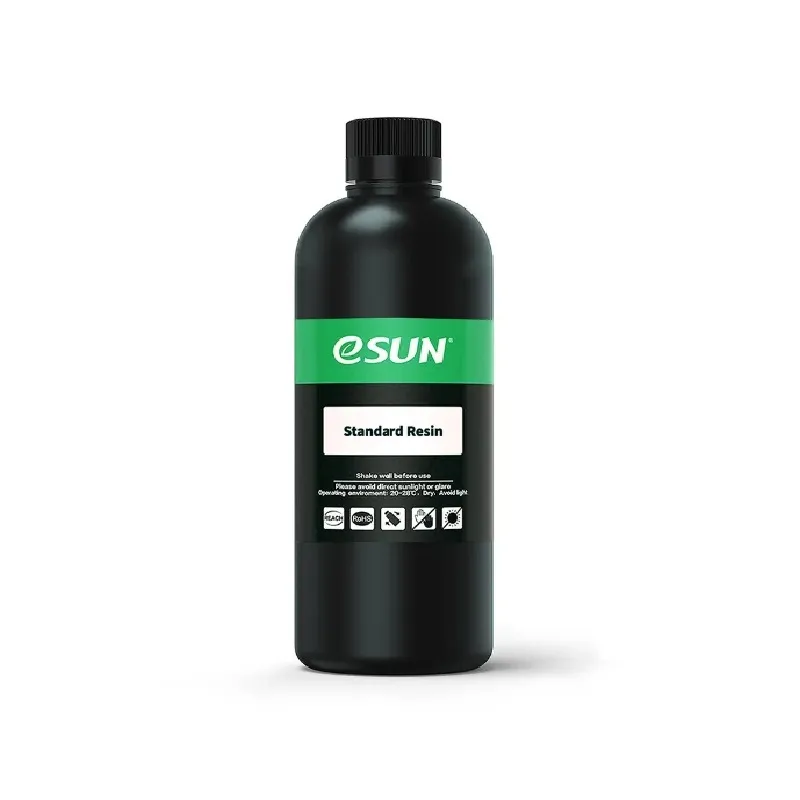

eSUN Standard 405nm UV Resin - Yellow 1kg

₹2,419.00 (Inclusive of all taxes)
Out of Stock

eSUN Standard Resin-Yellow is a high-rigidity, low-shrinkage photopolymer designed for rapid prototyping and functional testing. It offers excellent molding accuracy and fast curing properties, making it ideal for LCD 3D printers.

Features

  • High rigidity and toughness, optimized for LCD 3D printing.
  • Exceptional molding accuracy with low shrinkage for precise details.
  • Rapid curing speed and excellent fluidity ensure high print success rates.
  • Strong model adhesion to the build plate, facilitating easy detachment post-print.

Out of stock

Description

eSUN Standard Resin in Yellow is an epoxy-based photopolymer engineered for robust performance in LCD 3D printing. This material delivers high rigidity and enables the creation of thin-layered parts with remarkable molding accuracy. Its balanced mechanical properties make it suitable for printing test parts, conducting functional evaluations, and accelerating prototype development processes.

The formulation boasts low shrinkage and excellent stability, ensuring consistent dimensional accuracy across prints. Users will benefit from its fast curing characteristics and superior fluidity, which contribute to a high successful printing rate. After printing, models require cleaning with high-concentration alcohol (>95%) for approximately 30 seconds to achieve optimal finish and material integrity.

Key Features

  • Rigid and tough material, specifically formulated for professional LCD/DLP molding.
  • Achieves high precision and excellent detail reproduction due to minimal shrinkage and great stability.
  • Offers fast curing properties and superior fluidity, significantly increasing print success rates and reducing print times.
  • Ensures strong adhesion of printed models to the build platform, yet allows for easy detachment upon completion.
  • Broadly compatible with most 395-405nm wavelength LCD 3D printers, providing versatile application.

Applications

  • Rapid prototyping and design validation.
  • Functional testing of mechanical components.
  • Creating detailed display models and figures.
  • Manufacturing jigs and fixtures for assembly.

Technical Specifications

ColorYellow
Material TypeStandard Photopolymer Resin
Net Weight1 kg
Density1.08-1.13 g/cm³
Viscosity170-200 mPa·s
Curing Wavelength395-405 nm
Tensile Strength46-67 MPa
Flexural Modulus1000-1400 MPa
Flexural Strength46-72 MPa

Frequently Asked Questions

What are the optimal storage conditions for eSUN Standard Resin?

Store eSUN Standard Resin in a cool, dark place away from direct sunlight and heat, with temperatures ideally between 15-35°C (59-95°F). Keep the bottle tightly sealed to prevent exposure to air and moisture, which can degrade resin quality and shelf life.

What is the recommended cleaning process for models printed with eSUN Standard Resin?

After printing, clean models thoroughly with high-concentration isopropyl alcohol (IPA), preferably above 95%, for approximately 30 seconds. Use an ultrasonic cleaner or a soft brush for intricate details, then allow the model to air dry completely before post-curing.

How does eSUN Standard Resin perform regarding dimensional accuracy and shrinkage?

eSUN Standard Resin is formulated for excellent dimensional accuracy and features low shrinkage properties. This characteristic minimizes warping and deformation, ensuring that printed parts closely match your digital designs, making it suitable for precise prototyping and functional parts.

Can this resin be used with any LCD 3D printer?

eSUN Standard Resin is designed for broad compatibility with most LCD 3D printers that operate within the 395-405nm UV curing wavelength range. Always perform a small test print or refer to your printer's recommended settings for initial exposure times.

Package Includes

  • 1x eSUN Standard 405nm UV Resin - Yellow (1kg)

Additional Information

Weight 1.2 kg
Dimensions 10 × 10 × 27 cm
