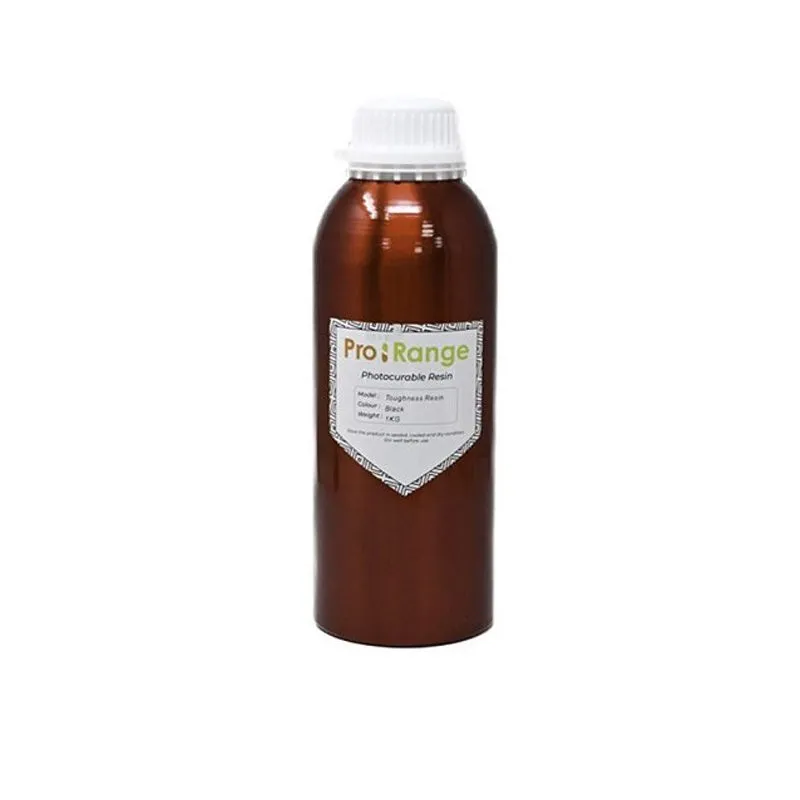

Pro-Range High Toughness Resin, Black, 1kg

Name: Pro-Range High Toughness Resin, Black, 1kg
Brand: Pro-Range
SKU: 3DMR-1117
Price: 3156.00 INR
Availability: OutOfStock

₹3,156.00 (Inclusive of all taxes)

Out of Stock

Pro-Range High Toughness resin is an advanced UV-curable photopolymer engineered for creating highly durable and flexible 3D prints. It offers exceptional impact strength, bending resistance, and a high elongation at break, making it ideal for functional prototypes and parts requiring robust mechanical performance on LCD/DLP printers.

Features

High impact strength (50 KJ/m²) for exceptionally robust and durable parts.
Excellent flexibility with 50% elongation at break for resilient components.
Superior bending (100 MPa) and tensile (35 MPa) strength for structural integrity.
Good hardness (75 D) and heat resistance (70°C HDT) for demanding applications.
Optimized viscosity (270 cps) ensures smooth handling and consistent printing results.

Out of stock

Get Notified When Available

Description

Pro-Range High Toughness resin is specifically formulated for LCD/DLP 3D printers, delivering prints with exceptional mechanical resilience. This advanced photopolymer exhibits a robust tensile strength of 35 MPa and an impressive bending strength of 100 MPa, ensuring structural integrity for demanding applications. Its high elongation at break of 50% coupled with a significant impact strength of 50 KJ/m² provides a unique balance of flexibility and resistance to sudden forces, crucial for functional prototypes and end-use parts.

Beyond its strength, the resin offers a Shore D hardness of 75, contributing to a durable, scratch-resistant surface finish. With a heat distortion temperature of 70°C, printed parts maintain their form under moderate thermal loads. The material is designed for precision, capable of resolving fine details down to a 0.3 mm hole size and supporting layer thicknesses as low as 0.05 mm, while also simplifying post-processing with easy cleanup procedures.

Key Features

High Tensile Strength: 35 MPa ensures robust and durable parts resistant to pulling forces.
Exceptional Bending Strength: 100 MPa makes it ideal for components requiring resistance to deformation under load.
Significant Impact Resistance: 50 KJ/m² for parts that must withstand sudden shocks or drops.
High Shore D Hardness: 75 D provides a tough, scratch-resistant surface finish for longevity.
Optimized Viscosity: 270 cps at 25°C allows for smooth resin flow and consistent printing results.
Elevated Heat Distortion Temperature: 70°C HDT maintains structural integrity in moderately warm environments.
Excellent Detail Resolution: Supports fine feature reproduction, suitable for intricate models and functional prototypes.

Applications

Functional prototypes requiring mechanical strength and resilience.
End-use parts subject to moderate impact or bending stresses.
Housings and enclosures for electronic devices.
Jigs and fixtures where durability is essential.
Components requiring good surface hardness and scratch resistance.
Parts operating in environments with temperatures up to 70°C.

Technical Specifications

Color	Black
Material Type	High Toughness Photopolymer Resin
Viscosity	270 mPa·s (270 cps)
Curing Wavelength	395-405 nm
Hardness (Shore D)	75 D
Tensile Strength	35 MPa
Elongation at Break	50%
Bending Strength	100 MPa
Impact Strength	50 KJ/m²
Heat Distortion Temp (HDT)	70°C

Frequently Asked Questions

What are the optimal printing settings for Pro-Range High Toughness resin?

Typical layer exposure times range from 2.5-4 seconds on mono LCD screens, with initial layers requiring 20-30 seconds for optimal adhesion. Always refer to your printer's specific profiles and perform calibration tests like R_E_R_F or XP2 Validation Matrix for best results, especially with new resin batches.

How should I properly post-process parts printed with this resin?

After printing, clean parts using isopropyl alcohol (IPA) or ethanol, ensuring all uncured resin is removed. Rinse thoroughly for 2-5 minutes. Post-cure immediately in a 405nm UV curing station for 10-20 minutes, rotating parts to ensure even exposure and achieve full mechanical properties.

Is an enclosure necessary when printing with Pro-Range High Toughness resin?

While not strictly required for resin types, maintaining a stable ambient temperature between 20-25°C is crucial for consistent resin viscosity and print quality. An enclosure helps regulate temperature and minimize dust contamination, contributing to more reliable and successful prints.

What are the best practices for storing Pro-Range High Toughness resin?

Store the resin in its original opaque bottle, tightly sealed, in a cool, dry place away from direct sunlight and UV light sources. Avoid extreme temperature fluctuations. Always shake the bottle well before each use to ensure proper pigment and component mixing.
