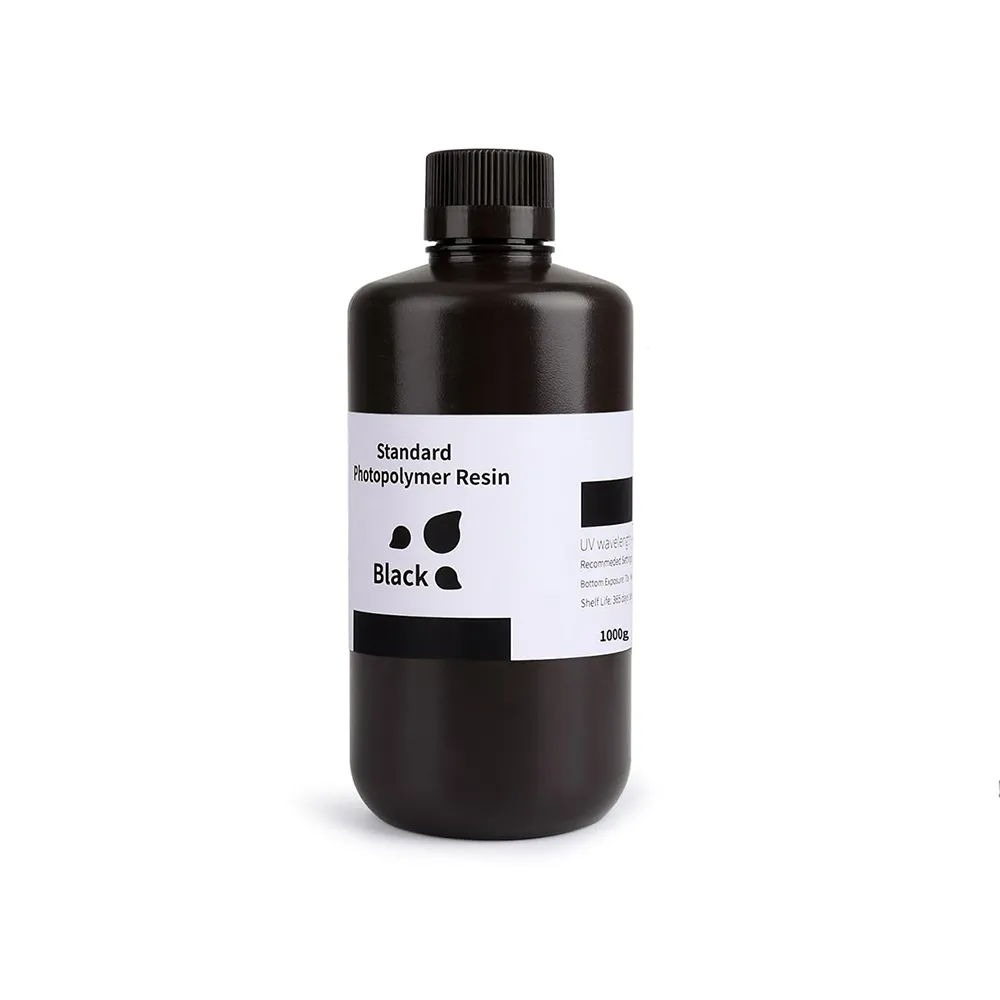

ELEGOO Standard Photopolymer Resin - Black 1000g

Name: ELEGOO Standard Photopolymer Resin - Black 1000g
Brand: Elegoo
SKU: 3DMR-0400
Price: 1741.00 INR
Availability: OutOfStock

₹1,741.00 (Inclusive of all taxes)

Out of Stock

ELEGOO Standard Photopolymer Resin is specifically engineered for 405nm LCD/DLP 3D printers, offering low volume shrinkage and fast curing times for precise and stable models. This high-stability resin ensures excellent print quality with proper hardness, suitable for a wide range of detailed applications.

Features

Low volume shrinkage ensures high precision and smooth finishes for intricate models.
Fast curing 405nm resin significantly reduces print duration for improved efficiency.
Offers high stability and proper hardness, ensuring reliable model integrity and durability.
Achieves vibrant black color thanks to high-quality pigments and photo-initiators.
Optimized for ELEGOO LCD 3D printers and broadly compatible with most 405nm LCD/DLP machines.

Out of stock

Get Notified When Available

Description

ELEGOO photopolymer resin is engineered to reduce volume shrinkage during the photocuring process, ensuring high precision and a smooth finish for your 3D models. This material offers superior dimensional accuracy, making it ideal for parts requiring tight tolerances and intricate details. Its robust formulation helps prevent warping and enhances layer adhesion for consistent print outcomes.

The 405nm Rapid Resin provides fast curing times and exceptional stability, significantly reducing overall printing duration while maintaining proper hardness for a worry-free experience. Formulated with high-quality pigments and photo-initiators, this resin delivers vibrant and consistent black color. While broadly compatible with most DLP/LCD 3D printers, it is specifically optimized to perform best with ELEGOO’s range of LCD 3D printers, including the Mars, Saturn, and Jupiter series.

For optimal print quality, ensure proper resin handling and storage. We recommend printing in a well-ventilated area, and maintaining a stable ambient temperature between 20-25°C. After printing, models should be thoroughly washed with isopropyl alcohol (IPA) and then post-cured using a 405nm UV light source to achieve maximum mechanical properties and surface hardness.

Key Features

Minimizes volume shrinkage during curing for precise and smooth prints.
Fast curing formulation significantly reduces print time, boosting productivity.
Maintains great stability and proper hardness post-cure for durable parts.
High-quality pigments ensure vibrant and pure black color effects.
Wide compatibility with most 405nm DLP/LCD 3D printers.
Optimized performance with ELEGOO Mars, Saturn, and Jupiter series.
Liquid density of 1.100 g/cm³, solid density of 1.195 g/cm³.
Extension strength ranging from 36-53 mPa for robust and functional models.

Technical Specifications

Color	Black
Material	Standard Resin
Density	1.1-1.195 g/cm3
Wavelength	405 nm
Viscosity	150-200 mPa-s
Flexural Strength	59-70 MPa

Frequently Asked Questions

What are the optimal printing conditions for ELEGOO Standard Black Resin?

For best results, print ELEGOO Standard Black Resin in an environment with a stable temperature between 20-25°C. Ensure your LCD/DLP printer is properly leveled and calibrated. Recommended bottom exposure times vary by printer, but generally range from 20-60 seconds, with normal layer exposure between 2-8 seconds.

How should I properly post-process models printed with this resin?

After printing, thoroughly wash your models in isopropyl alcohol (IPA) for 3-5 minutes, ensuring all uncured resin is removed. Allow them to air dry completely, then post-cure under a 405nm UV light source for 2-5 minutes per side until fully hardened. Over-curing can lead to brittleness.

Does this resin require special storage conditions?

Yes, ELEGOO Standard Black Resin should be stored in its original, opaque, and sealed bottle in a cool, dark place, away from direct sunlight and UV light sources. Keep the temperature below 30°C to prevent premature polymerization. Always shake the bottle well before each use.

Is this resin compatible with non-ELEGOO LCD 3D printers?

This resin is widely compatible with most 405nm LCD/DLP 3D printers, not just ELEGOO models. While optimized for ELEGOO printers, users of other brands like Anycubic, Creality, or Phrozen can achieve excellent results by adjusting exposure settings according to their specific printer's UV power and screen type.

What are the key benefits of using ELEGOO Standard Resin for detailed prints?

ELEGOO Standard Resin excels in detailed prints due to its low volume shrinkage and high precision. This minimizes warping and ensures intricate features are accurately reproduced. Its fast curing speed also allows for quicker print cycles without compromising on model stability or surface finish, making it ideal for prototyping.
