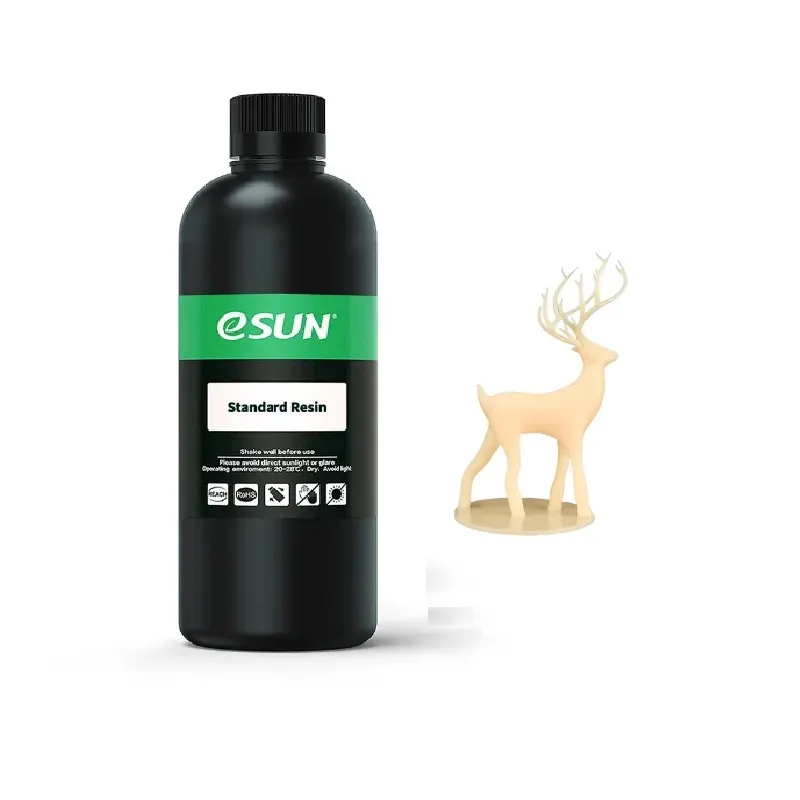

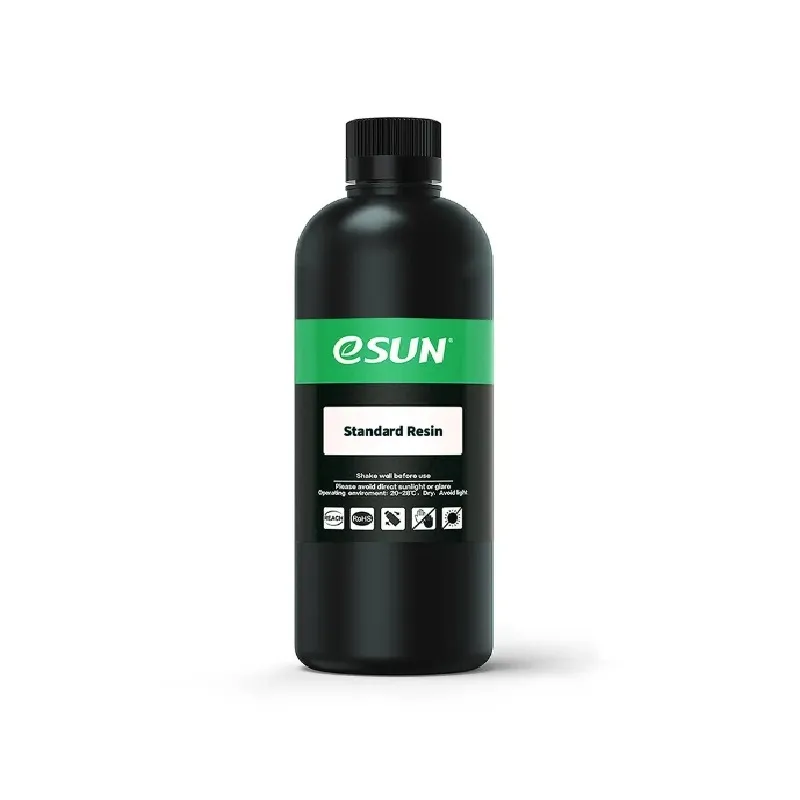

eSUN Standard Resin, Beige - 1kg

Name: eSUN Standard Resin, Beige - 1kg
Brand: eSUN
SKU: 3DMR-0782
Price: 1929.00 INR
Availability: OutOfStock

₹1,929.00 (Inclusive of all taxes)

Out of Stock

eSUN Standard Resin in Beige offers high rigidity and excellent molding accuracy, ideal for printing thin-layered test parts and rapid prototypes. This fast-curing photopolymer is compatible with most LCD 3D printers, providing reliable functional testing capabilities.

Features

Engineered for high rigidity and toughness, optimized for LCD 3D printers.
Achieves high precision and low shrinkage for stable, accurate prints.
Features rapid curing and excellent fluidity, ensuring a high printing success rate.
Provides strong model adhesion during printing and easy detachment post-curing.
Universally compatible with the majority of mainstream LCD 3D printing platforms.

Out of stock

Get Notified When Available

Description

eSUN Standard Resin is a professional, epoxy-based photopolymer designed for robust and accurate LCD 3D printing. It delivers high rigidity, enabling the creation of detailed, thin-layered parts with exceptional molding precision. This resin is particularly well-suited for functional testing and rapid prototyping, offering a reliable material solution for iterative design and validation processes.

Known for its fast curing speed and excellent fluidity, eSUN Standard Resin promotes a high success rate in printing, minimizing failures and material waste. Post-processing is straightforward, requiring a clean with high-concentration alcohol (above 95%) for approximately 30 seconds to remove uncured resin. This ensures optimal surface finish and mechanical properties for the finished model.

Key Features

Rigid and Tough Material: Specifically formulated as a professional LCD molding resin, offering a balance of stiffness and durability for functional parts.
High Precision & Low Shrinkage: Engineered for excellent dimensional accuracy and stability, ensuring printed models closely match design specifications.
Fast Curing & Excellent Fluidity: Optimizes print speed and detail resolution, allowing for quicker print times and smooth resin flow within the vat.
High Successful Printing Rate: Consistent material properties and curing characteristics contribute to a significantly higher print success ratio.
Strong Model Adhesion: Ensures prints firmly adhere to the build plate during the printing process, reducing print failures.
Easy Detachment After Forming: Facilitates hassle-free removal of finished models from the build platform without damage.
Wide Compatibility: Designed to work effectively with most common LCD 3D printers on the market (wavelength 395-405nm).
Epoxy-Based Formulation: Provides enhanced mechanical properties compared to basic acrylic resins, suitable for demanding applications.

Applications

Functional prototypes requiring high rigidity and dimensional accuracy.
Rapid prototyping for design iteration and form/fit testing.
Creating precise test parts for various engineering validations.
General-purpose models where good detail and a robust finish are desired.

Technical Specifications

Color	Beige
Material Type	Standard Resin (Epoxy-based)
Volume	1 kg
Density	1.08-1.13 g/cm³
Viscosity	170-200 mPa·s
Curing Wavelength	395-405 nm
Tensile Strength	46-67 MPa
Flexural Modulus	1000-1400 MPa
Flexural Strength	46-72 MPa

Frequently Asked Questions

What are the optimal curing parameters for eSUN Standard Resin?

Optimal exposure times vary by printer and layer height, but a good starting point for eSUN Standard Resin is 2-4 seconds per layer on monochrome LCD printers. Bottom layers typically require longer exposure, around 20-30 seconds, to ensure strong bed adhesion. Always perform a calibration test for best results.

How should I post-process prints made with eSUN Standard Resin?

After printing, clean your models thoroughly using high-concentration isopropyl alcohol (IPA) of 95% or higher for approximately 30 seconds. Ensure all uncured resin is removed. Then, post-cure the clean and dry parts under UV light (395-405nm) until fully hardened, typically 2-10 minutes depending on part thickness and UV intensity.

Can eSUN Standard Resin be used for functional parts?

Yes, eSUN Standard Resin is formulated with high rigidity and good mechanical properties, making it suitable for functional prototypes and test parts. While not as tough as engineering resins, it excels in applications requiring dimensional accuracy and moderate strength for fit and function testing.

What are the storage recommendations for this resin?

Store eSUN Standard Resin in its original, opaque bottle in a cool, dry, and well-ventilated area away from direct sunlight and heat sources. Ensure the cap is tightly sealed to prevent light exposure and contamination, which can degrade the resin's quality and shelf life.

Is an enclosed printer or ventilation required for eSUN Standard Resin?

While eSUN Standard Resin generally has a low odor, it is still recommended to use it in a well-ventilated space. An enclosed printer can help maintain stable printing temperatures, and proper room ventilation or an air purifier is always advisable to minimize exposure to resin fumes during printing and post-processing.
