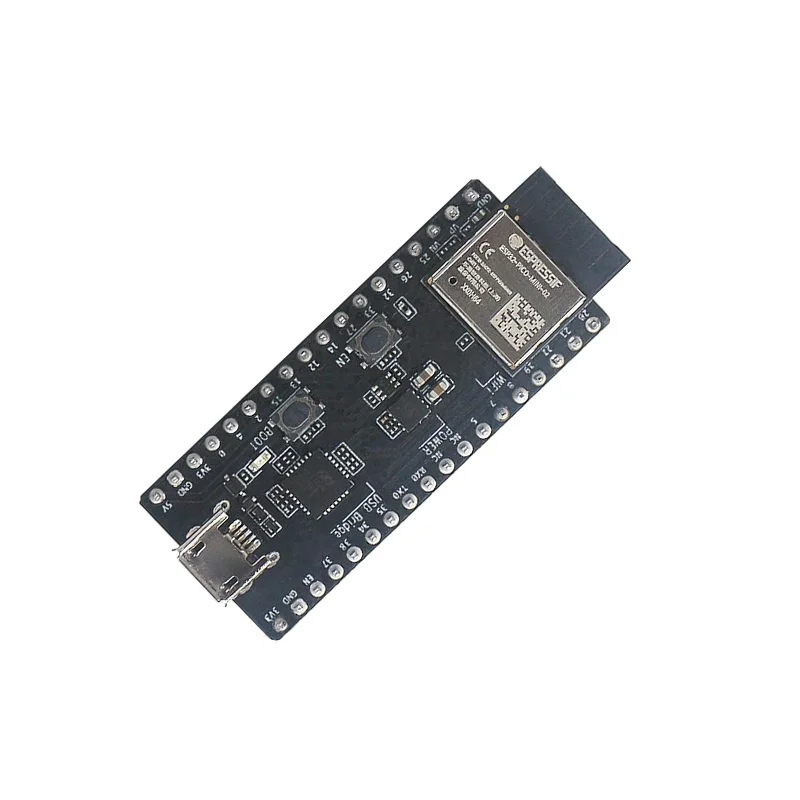

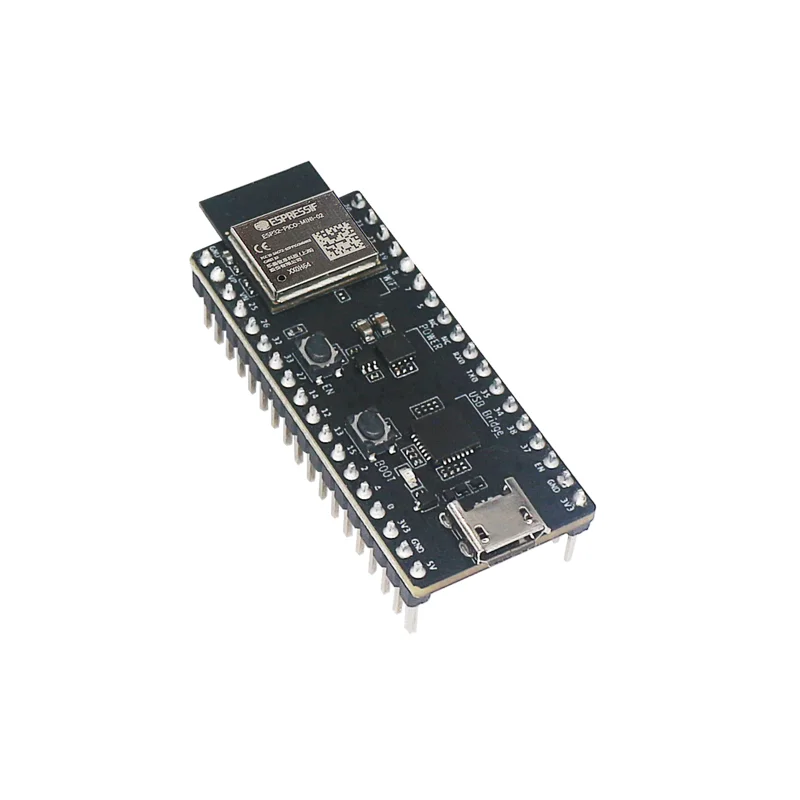

Espressif ESP32-PICO-DevKitM-2 Development Board

Connect the board to your computer via the onboard USB-C port. The CP2102N USB-to-UART bridge will be recognized automatically. Install the ESP32 board package in the Arduino IDE or set up the ESP-IDF toolchain. Select the correct COM port and the 'ESP32 Dev Module' as the board type. You can then upload your compiled sketch or application firmware directly through the IDE's upload button.

The primary difference lies in the integrated flash memory package. The ESP32-PICO-MINI-02 uses a standard flash chip, while the 02U variant employs a chip in a USON package, which is smaller. Functionally, they are identical, offering the same ESP32 core, 8MB flash, 2MB PSRAM, and wireless capabilities. The DevKitM-2 board may be supplied with either module soldered, but performance and programming procedures remain unchanged for the end user.

Yes, you can power the board externally. While the primary method is via the 5V USB port, you can also supply power through the 5V and GND pins on the breakout headers. The onboard low-dropout (LDO) voltage regulator will step this down to a stable 3.3V for the ESP32 module. Ensure your external power source provides a clean 5V DC supply. Avoid applying voltage directly to the 3.3V pin unless you have a regulated 3.3V source and bypass the onboard LDO.

The ESP32-PICO-DevKitM-2 comes with a fixed onboard PCB antenna designed for general use. The underlying ESP32-PICO-MINI module does have an IPEX connector footprint for an external antenna, but it is not directly accessible on this development board. For applications requiring an external antenna, you would need to design a custom carrier board that interfaces with the module's pins directly or select a different ESP32 development board that provides an accessible antenna connector.
