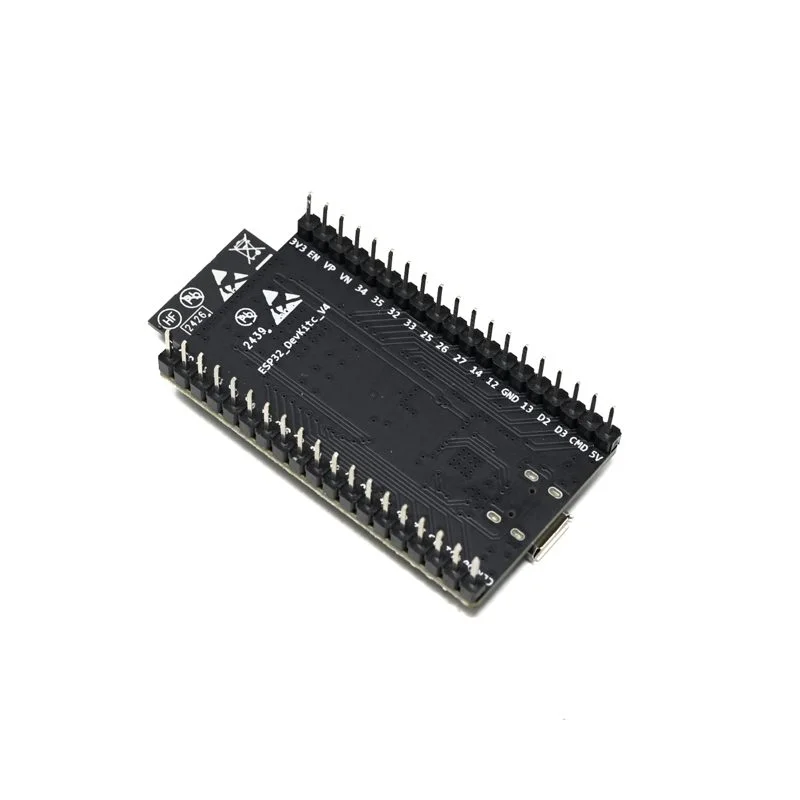

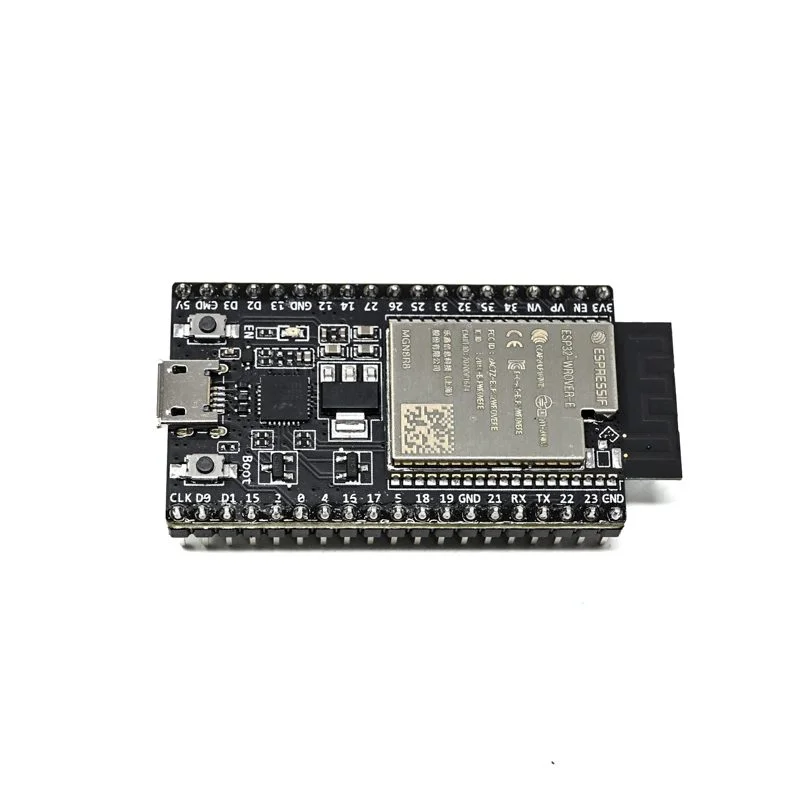

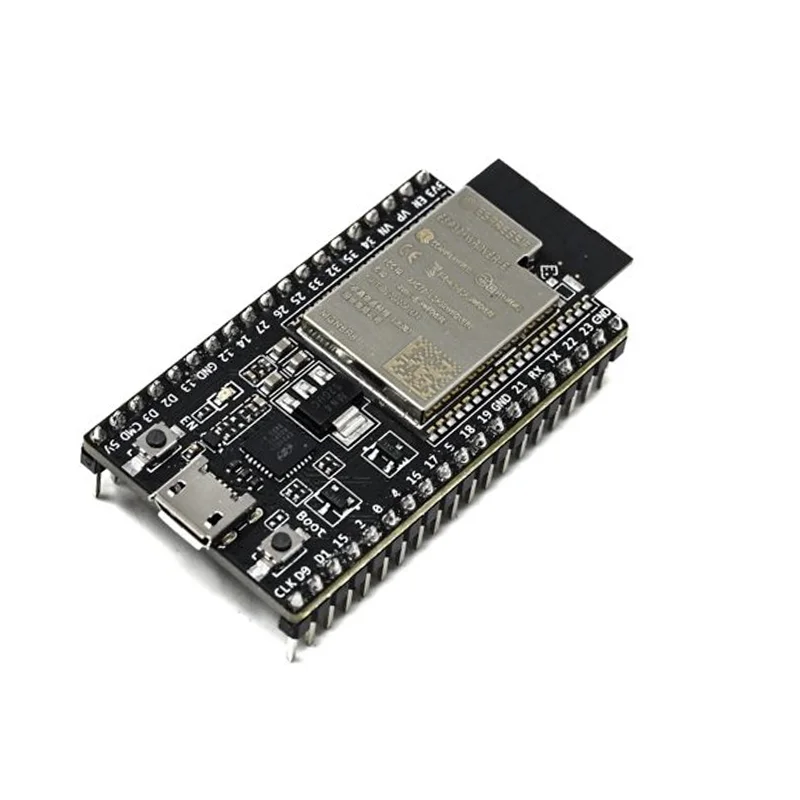

Espressif ESP32-DevKitC-VE Development Board w/ 8MB PSRAM

You can program the board using the Arduino IDE with the ESP32 board package, Espressif's official ESP-IDF framework, or MicroPython. Connect the board via its micro-USB port, select the correct COM port, and choose 'ESP32 Dev Module' or a similar target. The onboard CP2102 USB-to-UART chip handles the communication, requiring no external programmer. For ESP-IDF, use the `idf.py` build and flash commands after setting up the toolchain.

The 8MB PSRAM (Pseudo Static RAM) provides additional volatile memory for data-intensive operations. It is useful for buffering images, audio streams, or large data sets in applications like camera processing, voice recognition, or complex graphical user interfaces. Unlike flash, PSRAM is directly accessible by the CPU, offering faster read/write speeds for dynamic data, which helps prevent the main SRAM from being overloaded in demanding projects.

Yes, the ESP32-DevKitC-VE supports various low-power sleep modes, including Deep Sleep, which significantly reduces current consumption to microamps. For battery operation, you should power the board's 3.3V pin directly from a regulated battery source, bypassing the onboard linear regulator for higher efficiency. Manage wireless radios judiciously, as active Wi-Fi/BLE transmission draws the most current. The board's sleep features make it suitable for sensor nodes that wake periodically to transmit data.

The primary distinction of the DevKitC-VE is its use of the ESP32-WROVER-E module, which integrates 8MB of both flash memory and PSRAM. Many basic ESP32 boards have only 4MB flash and no PSRAM. This makes the V-E variant better suited for applications requiring extra memory. It also features a standard DevKitC form factor with pin headers and a CP2102 USB-serial chip. Always check the specific module (WROVER-E) and memory configuration when comparing to other ESP32 development kits.
