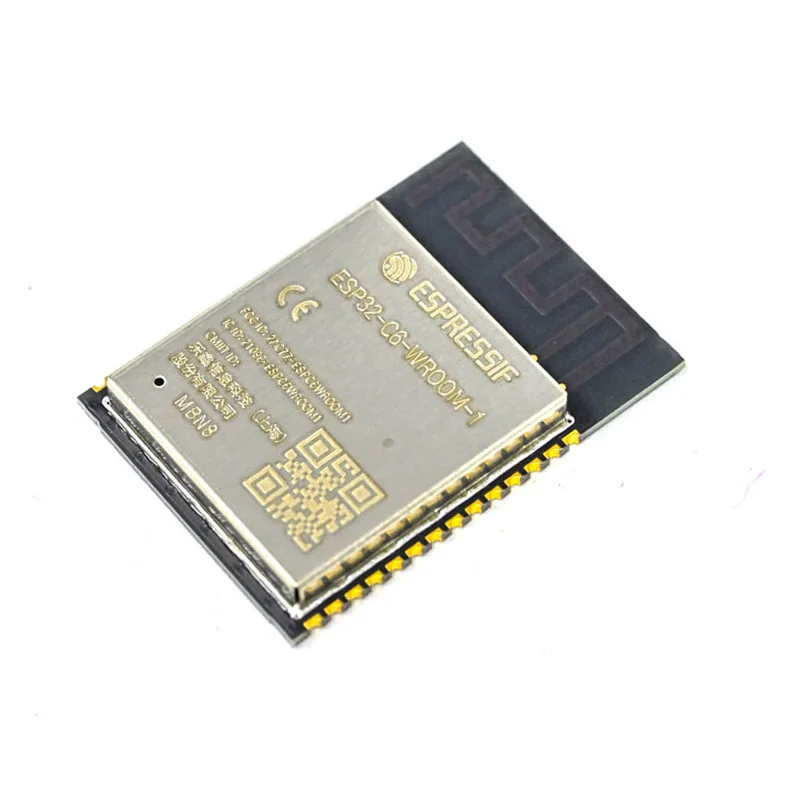

Espressif ESP32-C6-WROOM-1-N8 Wi-Fi 6 & BLE 5.0 Module

The module is fully supported by Espressif's official ESP-IDF (IoT Development Framework), which provides the core toolchain, libraries, and APIs for all features. Community support includes an Arduino core for simplified programming and PlatformIO for a cross-platform IDE experience. You typically configure the target chip as ESP32-C6 and select the correct partition table and flash size (8 MB) in your project settings before compiling and flashing via serial.

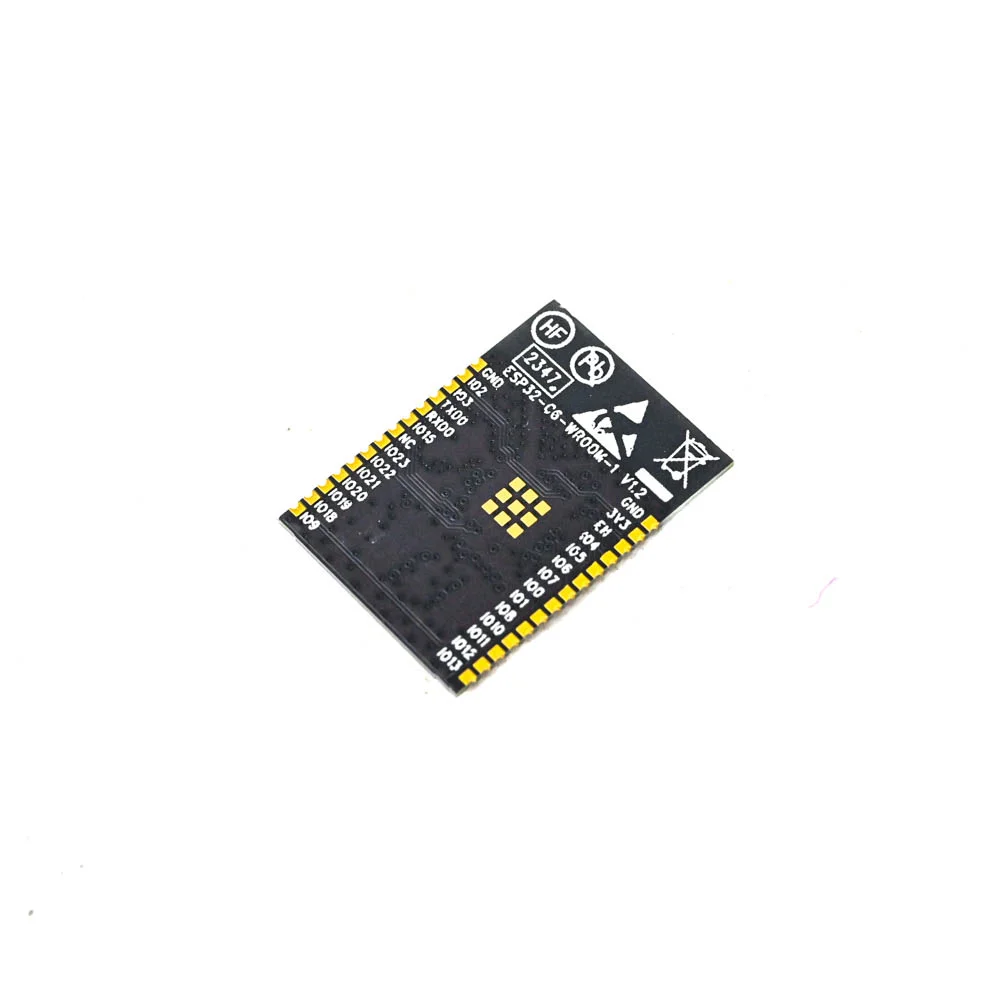

For development, you can solder the module's castellated pins to a breakout board or custom PCB. Provide a stable 3.3V DC power supply to the VCC and GND pins, ensuring sufficient current capability (peak currents may exceed 500mA during RF transmission). Use a USB-to-serial adapter (e.g., CP2102, CH340) connected to the module's UART0 TX/RX pins and GPIO9 for boot mode selection to flash firmware. Remember to pull GPIO9 low during reset to enter download mode.

The '-N8' variant, as described, comes with an integrated PCB antenna and does not have an external antenna connector like an IPEX or SMA. To use an external antenna, you would need the 'ESP32-C6-WROOM-1-U' variant, which features an IPEX connector. Modifying the PCB antenna version requires careful RF trace cutting and impedance matching, which is not recommended as it invalidates regulatory certifications and can degrade performance significantly.

The ESP32-C6 introduces a single-core 160 MHz RISC-V processor, replacing the dual-core Xtensa LX6 cores in the original ESP32. Crucially, it adds support for the Wi-Fi 6 (802.11ax) standard, offering improved efficiency and performance in congested networks. It also integrates IEEE 802.15.4 radio support for Thread and Zigbee protocols natively, which the classic ESP32 lacks. The memory architecture and peripheral set (I2C, SPI, UART) remain similar, but power management and security features are enhanced on the C6.
