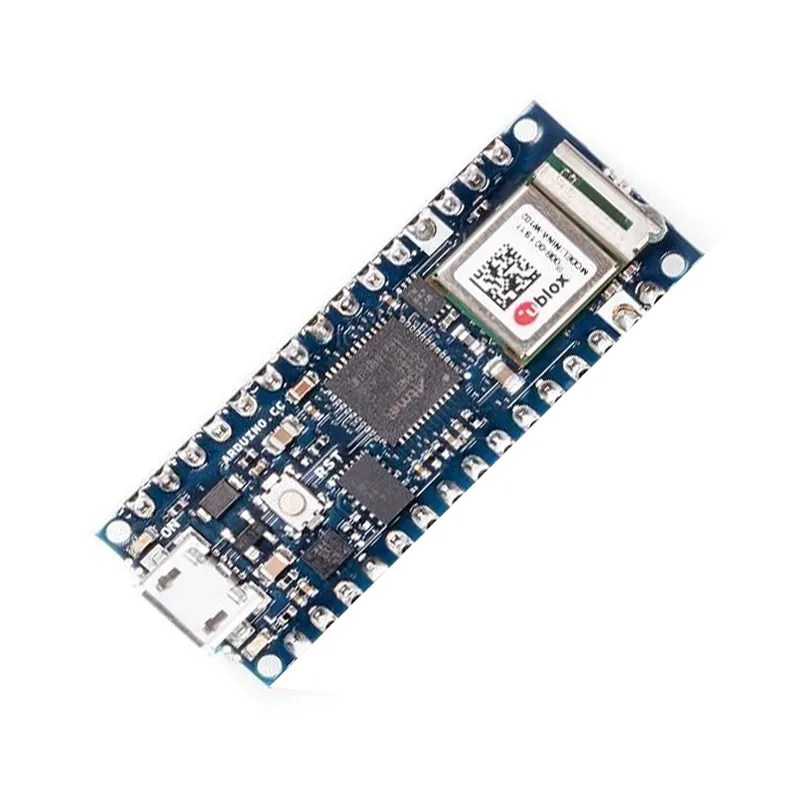

Arduino Nano 33 IoT with Headers - WiFi/BLE SAMD21
The Arduino Nano 33 IoT with pre-soldered headers is a compact, low-power development board designed for seamless integration into IoT applications. Featuring an Arm Cortex-M0+ SAMD21 microcontroller, it offers integrated Wi-Fi and Bluetooth connectivity, alongside a dedicated secure element for robust communication.
Features
- Integrated u-blox NINA-W102 module provides Wi-Fi and Bluetooth connectivity for diverse IoT applications.
- Features a Microchip Technology ATECC608A secure element, ensuring robust cryptographic operations for data protection.
- Equipped with an onboard 6-axis IMU (LSM6DS3) for motion sensing, orientation tracking, and vibration detection.
- Powered by a low-power Arm Cortex-M0+ SAMD21 microcontroller clocked at 48MHz.

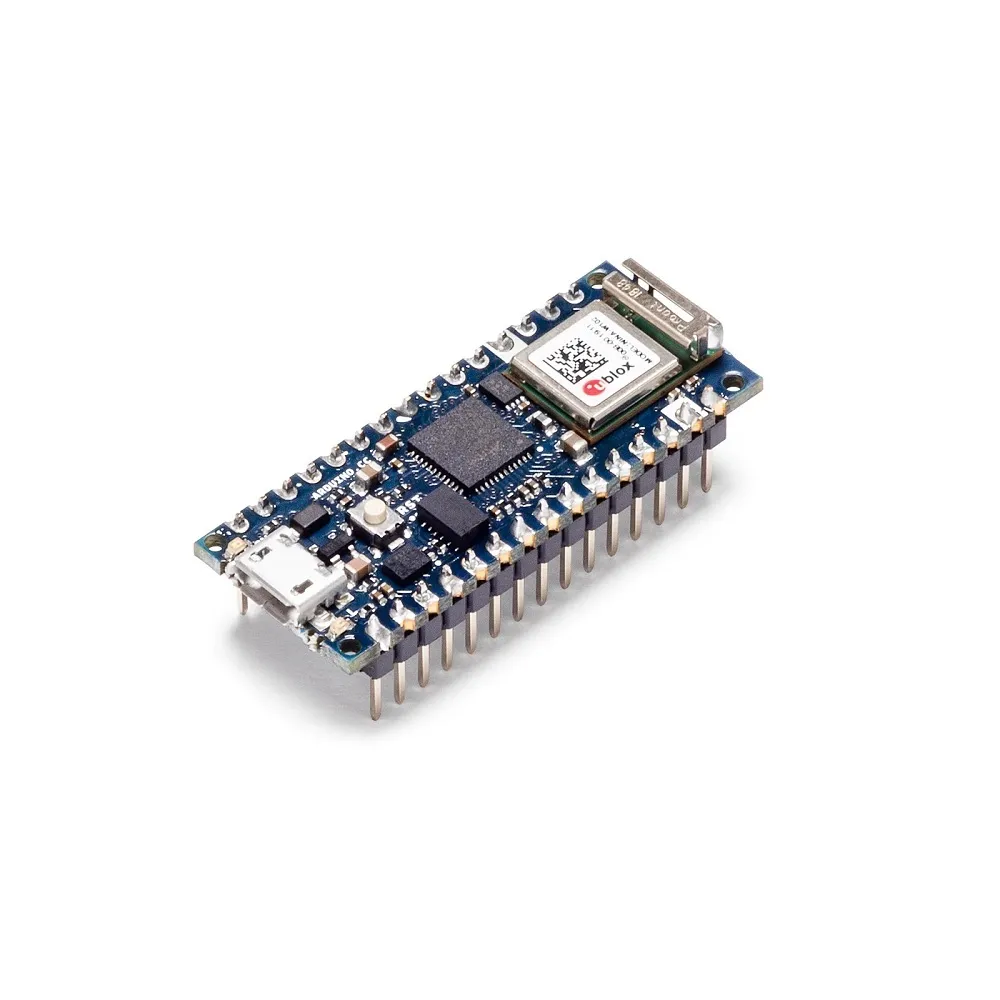

- Comes with pre-soldered headers, simplifying breadboard prototyping and permanent installations.
Out of stock
The Arduino Nano 33 IoT serves as an accessible entry point for integrating existing devices into the Internet of Things and developing pico-network applications. Its core is a low-power Arm Cortex-M0+ 32-bit SAMD21 microcontroller, providing ample processing power for a wide range of embedded tasks. Wireless communication is handled by the u-blox NINA-W102 module, supporting both Wi-Fi and Bluetooth Low Energy (BLE) in the 2.4GHz range, making it versatile for sensor networks, smart home integration, or BLE data transmission to mobile devices.
Security is a primary focus, with the inclusion of a Microchip Technology ATECC608A crypto chip that facilitates secure communication and cryptographic operations. Beyond connectivity, the board integrates a 6-axis Inertial Measurement Unit (IMU) based on the LSM6DS3 sensor. This enables the Nano 33 IoT to be used in applications requiring motion detection, such as vibration alarms, pedometers, or relative positioning for robotics projects, enhancing its utility beyond basic IoT data logging.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 4.5 × 1.8 cm |
