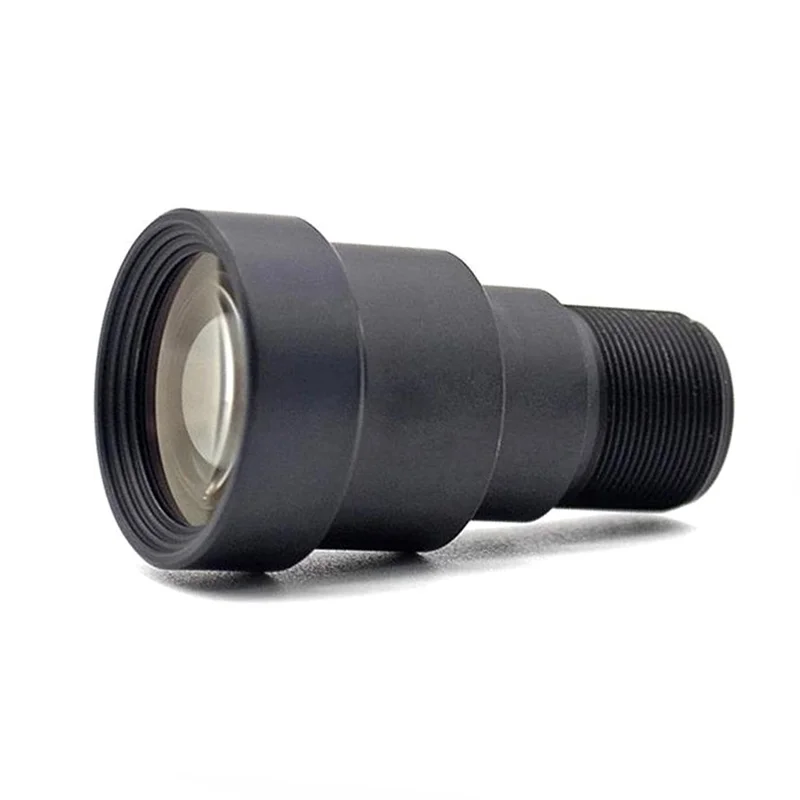

EDATEC 8MP 35mm M12 Lens for Raspberry Pi

Yes, this EDATEC 8MP M12 lens is compatible with Raspberry Pi camera modules that feature a standard M12 lens mount, including models designed for 8MP sensors. You must first remove the existing lens from the camera module's sensor board. Carefully unscrew the default lens, align the threads of this 35mm lens, and screw it in securely. Ensure the camera's sensor is clean and the lens is tightened to achieve proper focus. Always power off the Pi during installation to prevent static damage.

Focus is adjusted by rotating the lens barrel within its M12 mount. After installing the lens on your Raspberry Pi camera module, run a live preview script (e.g., using `raspistill` or `libcamera`). Point the camera at a detailed subject approximately 2-5 meters away. Gently rotate the lens clockwise or counterclockwise while observing the preview feed until the image appears sharpest. Once optimal focus is achieved, avoid further rotation. For permanent setups, a small drop of thread-locker can be applied to secure the focus position.

A 35mm lens on a Raspberry Pi camera sensor (typically a 1/4" or 1/2.3" format) provides a narrow, telephoto field of view, approximately 20-30 degrees diagonally. This is significantly tighter than the standard wide-angle lenses supplied with Pi kits. It is ideal for applications where you need to capture distant subjects in detail, such as wildlife monitoring, license plate recognition, or inspecting specific areas on a production line without digital zoom, which reduces image quality.

Yes, this M12 lens can be used with any camera module that has a compatible M12 (S-mount) thread and a sensor resolution supported by the lens's 8MP optics, such as those used with NVIDIA Jetson Nano, Orange Pi, or BeagleBoard boards. The compatibility depends entirely on the physical camera module, not the host computer. Ensure your camera module's sensor is an 8MP type and has a removable M12 mount. The electrical interface and driver support are handled by the camera module itself.
