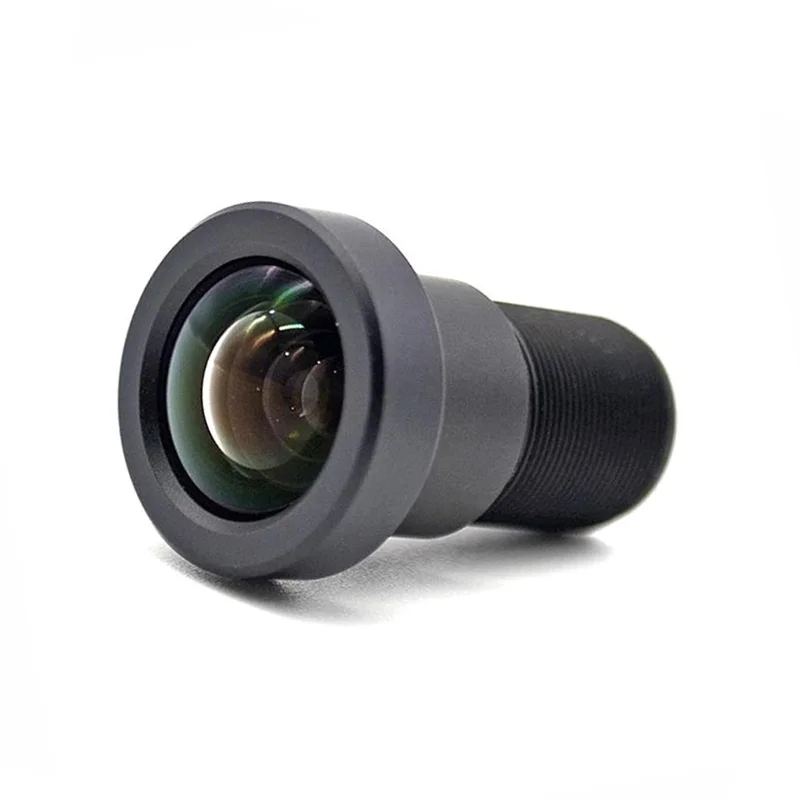

EDATEC 8MP 7.8mm M12 Lens for Raspberry Pi

Yes, this EDATEC M12 lens is designed for compatibility with standard Raspberry Pi camera modules, including the Camera Module V2, which typically uses a compatible M12 mount. You will need to unscrew the existing lens from your camera module's sensor board and carefully thread this new lens in its place, ensuring not to touch the sensor glass. Always verify the specific thread pattern of your camera module before installation.

Focus is adjusted by rotating the entire lens barrel within the M12 mount. After installing the lens onto your camera module, connect the system to a live video feed. Gently rotate the lens clockwise or counterclockwise until the image on your monitor appears sharp. Once focused, avoid further rotation to maintain the setting. Some lenses may have a locking screw; this model relies on the friction of the thread to hold position.

The exact field of view depends on the sensor size of your specific Raspberry Pi camera module. For a standard 1/4-inch sensor commonly used, a 7.8mm focal length provides a moderately narrow field of view, roughly equivalent to a medium telephoto perspective. It is well-suited for capturing details of subjects at a moderate distance, making it ideal for applications like object inspection, portrait-style photography, or focused surveillance scenes.
