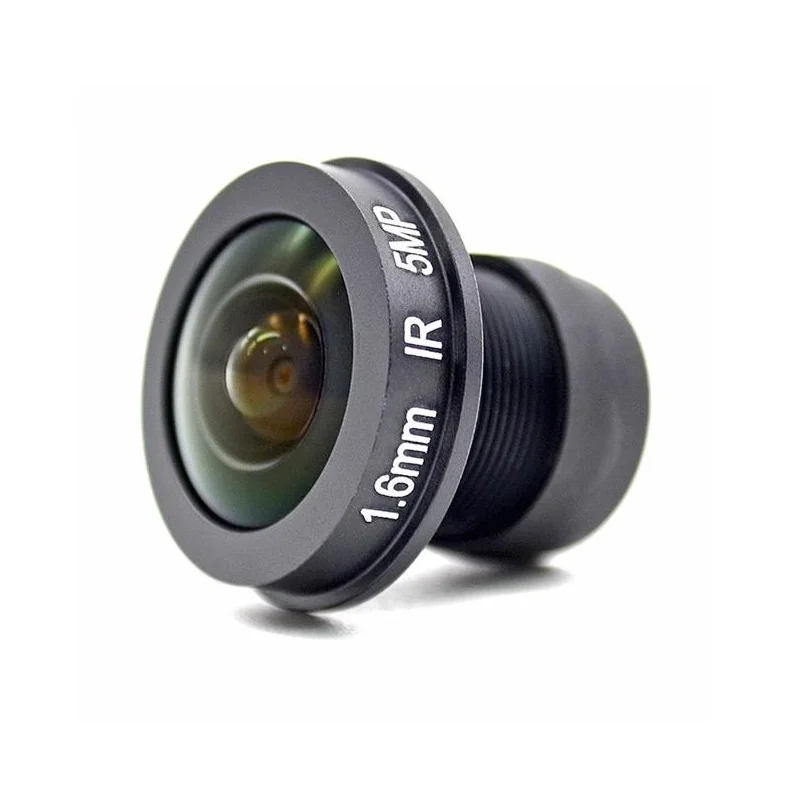

EDATEC 5MP 1.6mm Ultra Wide Angle M12 Lens

This lens is specifically designed for cameras with a 5MP sensor and a standard M12 (also known as S-mount) lens thread. It is compatible with many Raspberry Pi camera modules, OpenMV Cam boards, and other industrial vision systems that utilize the M12 mounting standard. Always verify your camera module's sensor resolution and thread type before purchase to ensure optical compatibility and proper focus.

Installation is straightforward due to the standardized M12 thread. First, remove any existing lens from your camera module by unscrewing it counterclockwise. Then, align the threads of the EDATEC 1.6mm lens and screw it onto the camera module clockwise. Hand-tighten firmly but avoid over-tightening, which could damage the threads. No tools are typically required. For fine-tuning focus, you may need to rotate the lens slightly while viewing a test image on your connected display.

The primary use is capturing an extremely wide field of view from a single, often close, vantage point. This makes it ideal for security and surveillance applications where you need to monitor an entire room, for architectural and real estate photography to fit entire structures or interiors into the frame, and for creative projects that benefit from an exaggerated perspective and deep depth of field. It is less suitable for portraits or applications requiring minimal distortion.

While the lens can physically mount onto any M12-threaded camera, it is optically optimized for 5MP sensors. Using it on a higher-resolution camera (e.g., 8MP or 12MP) may result in reduced image sharpness, increased vignetting, or more noticeable chromatic aberration at the edges because the lens may not resolve fine detail sufficiently for the higher pixel density. For best results, pair it with a 5MP camera module as intended.

Barrel distortion, where straight lines bow outward, is characteristic of ultra-wide-angle lenses. Correction can be done in post-processing software like Adobe Lightroom or OpenCV. Many libraries have lens correction profiles. For real-time correction on embedded platforms like Raspberry Pi, you can use OpenCV functions such as cv2.undistort() with your camera's calibrated distortion coefficients. This requires prior camera calibration using a chessboard pattern to compute the precise correction parameters.
